2010 Speedline CTR Korean bike

I restored this bike for Salvador. It is light, good looking, and well-made bike we don’t know much about except:

  • Based on company logo on the headset, it is made by Korean company Speedline.
  • Speedline produces a CTR line of hybrid bikes beginning in 2010. This one is likely the first CTR model.
  • Speedline bikes were produced for South Korea by Alton Sports at the Alton factory located in Tianjin, China.
  • Translated pages about CTR 1.0, CTR 3.0, and CTR 5.0
  • CTR is an urban high speed hybrid, built specifically for Korean urban terrain with many hills. It is peculiar that all CTR bikes are painted in either white or black, I can’t find any other colors.
  • Label on the seatpost tube indicates adherence to a certain quality standard
  • We can’t read the label on the fork

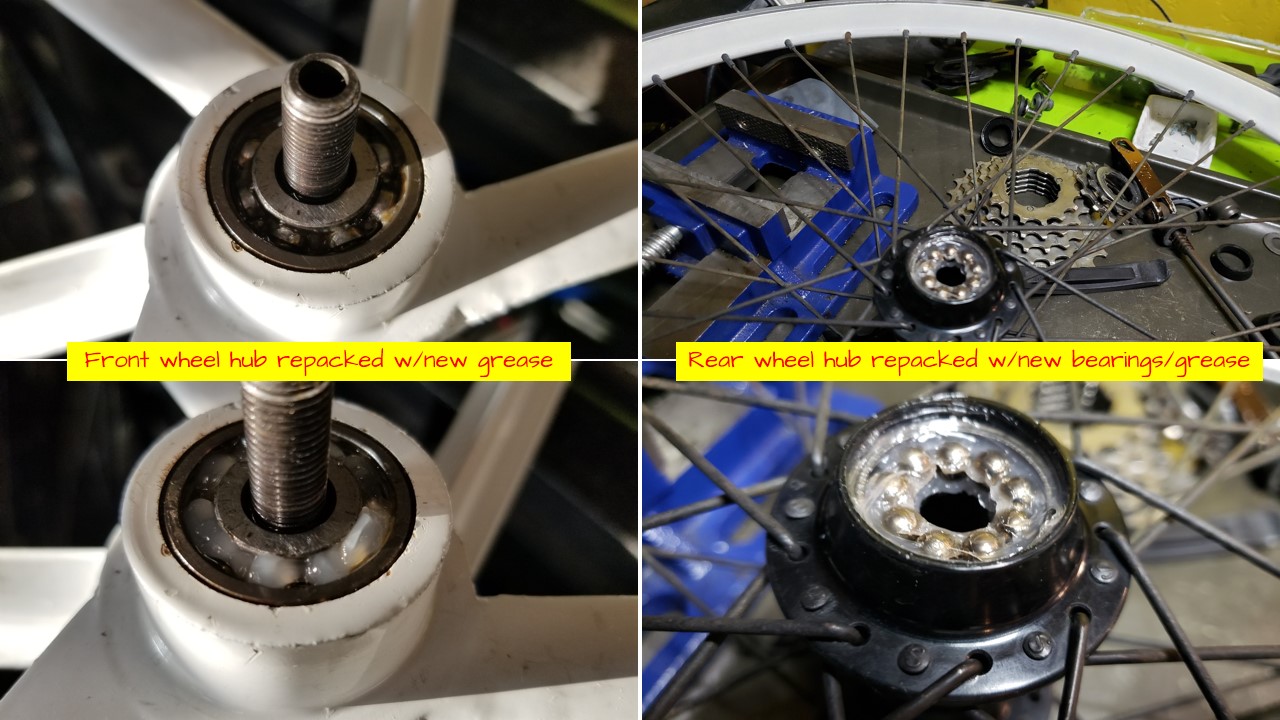

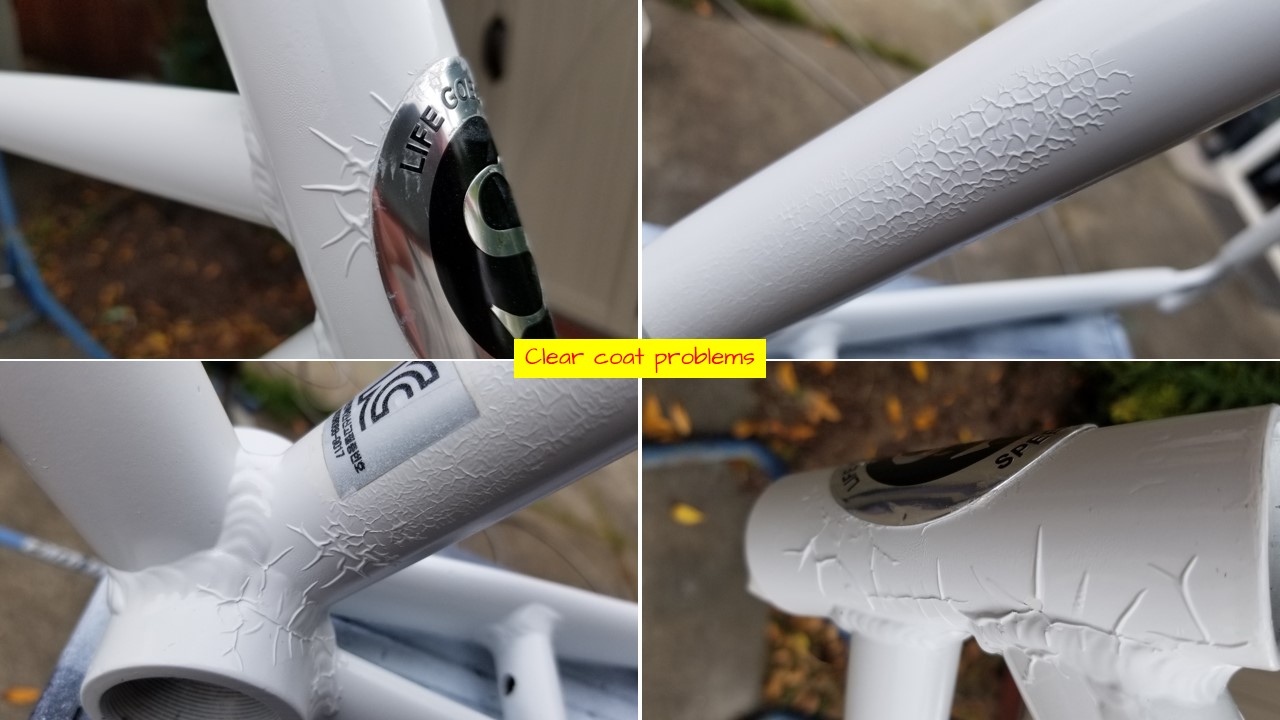

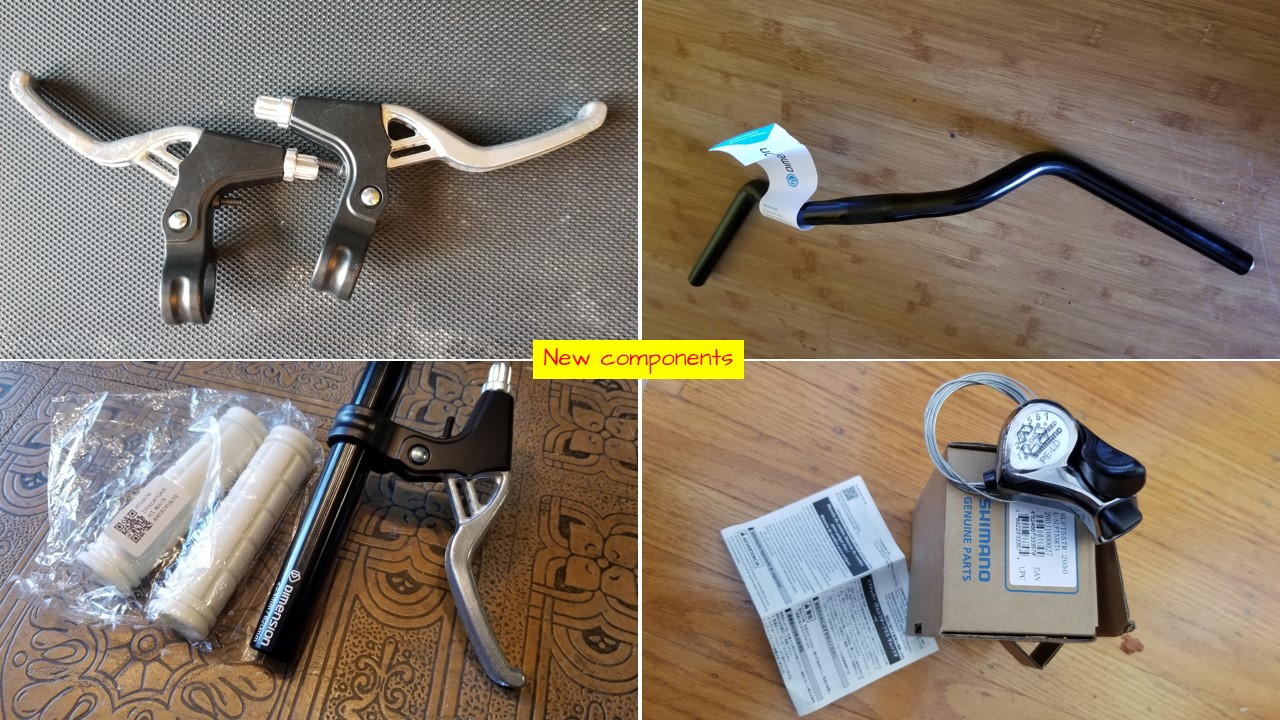

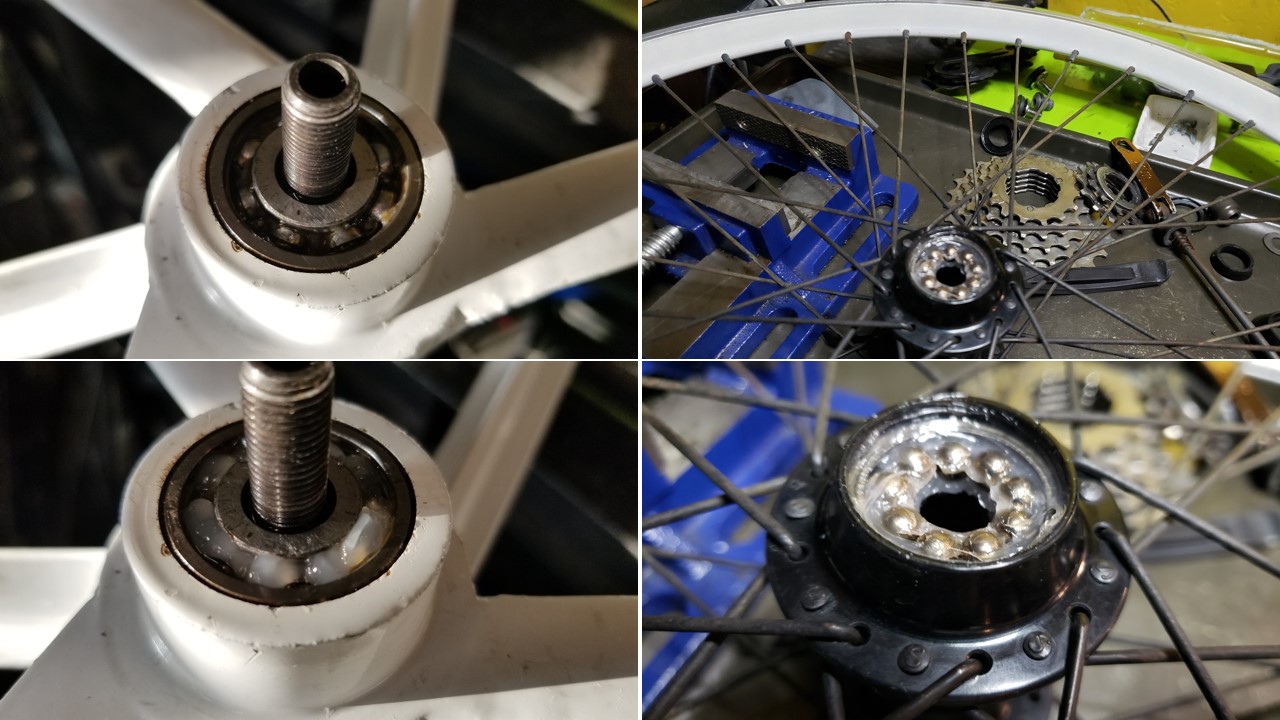

I completely disassembled this bike; de-rusted all components, removed blotchy remnants of previous touch-paint, re-painted frame and fork, repacked both hubs bearings. We’ll keep most of the existing components, replacing the chain, handlebars, 7-speed shifter, spoke protector, handlebar grips, and brake levers.

If you can help us to better identify this bike, please email me directly at bikesheaven1@gmail.com. Thank you!

Before & After Pics

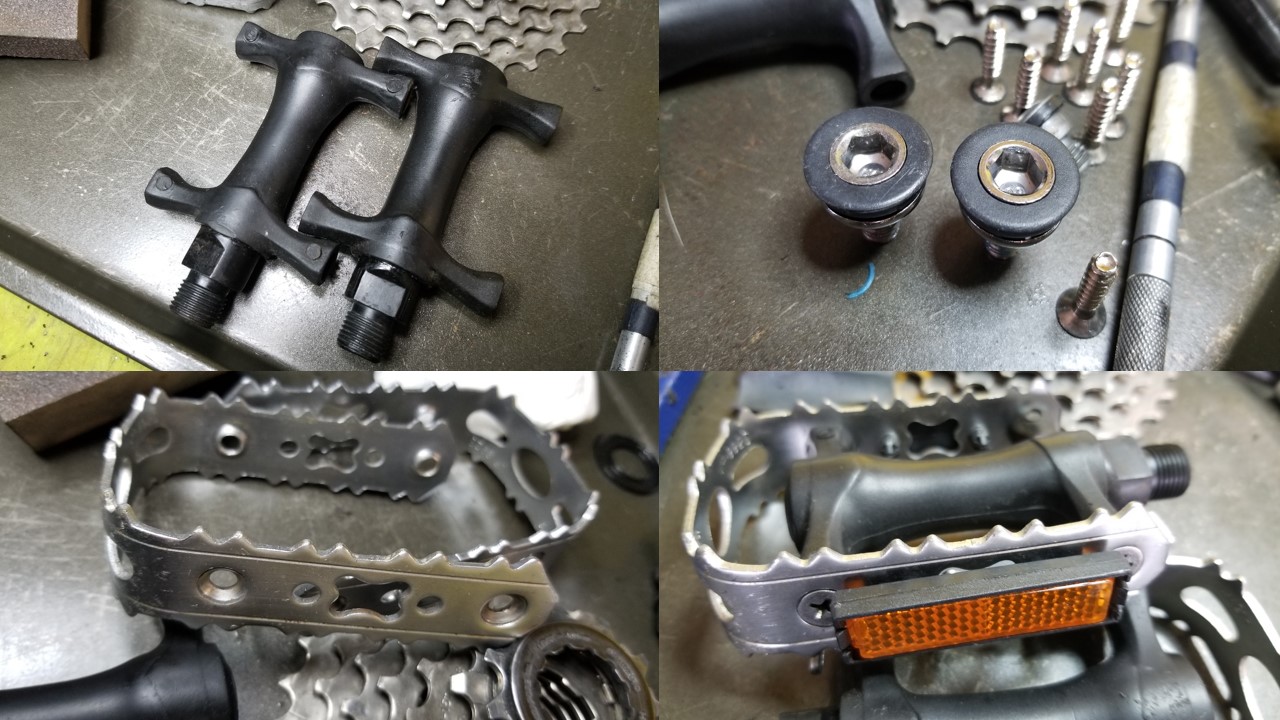

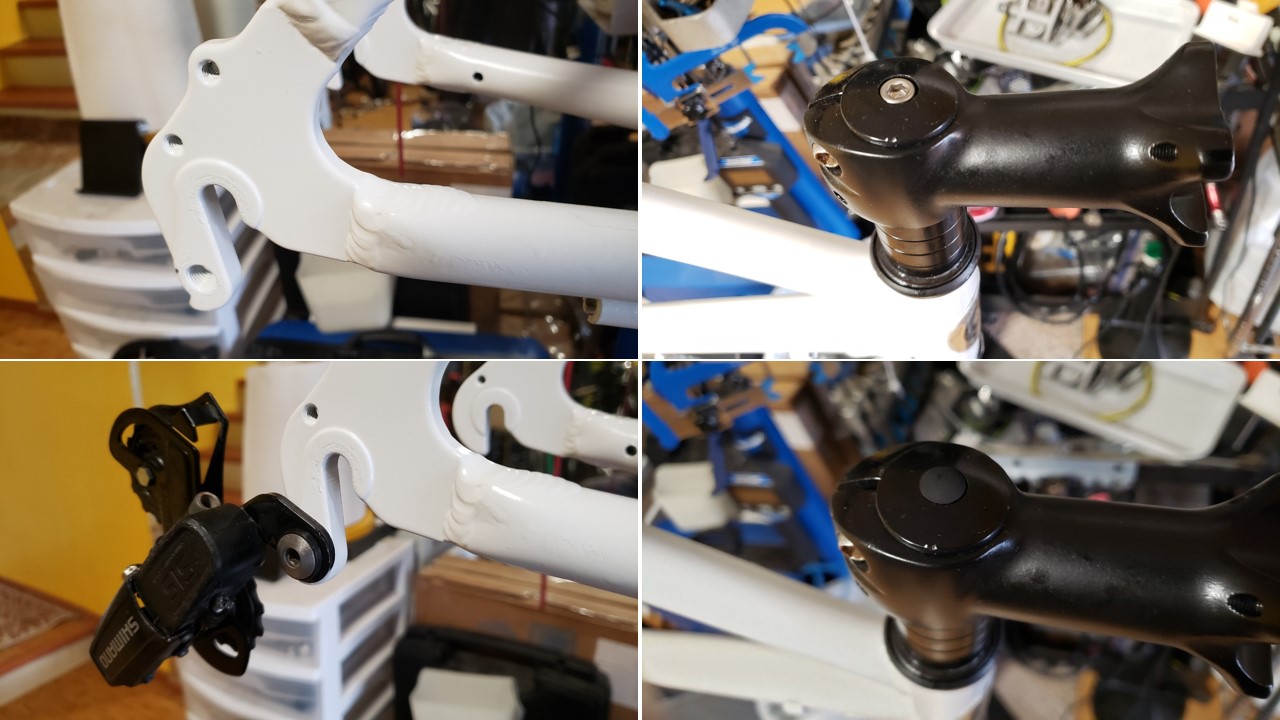

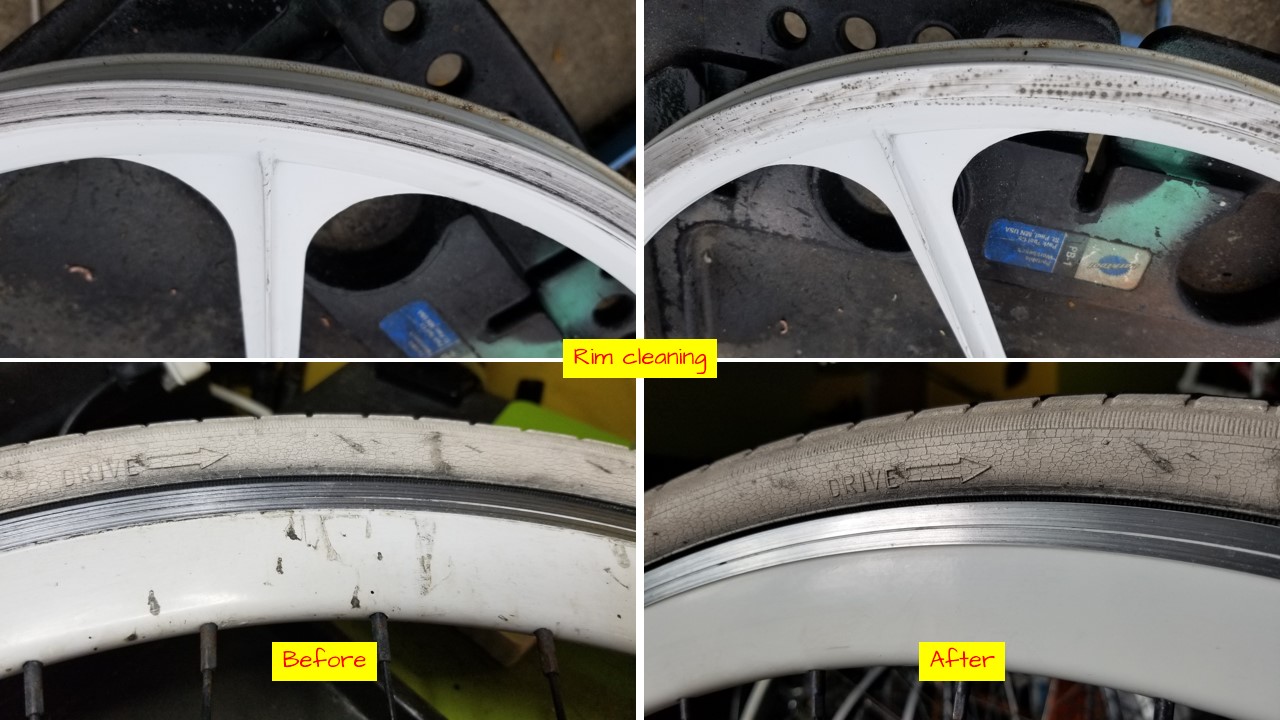

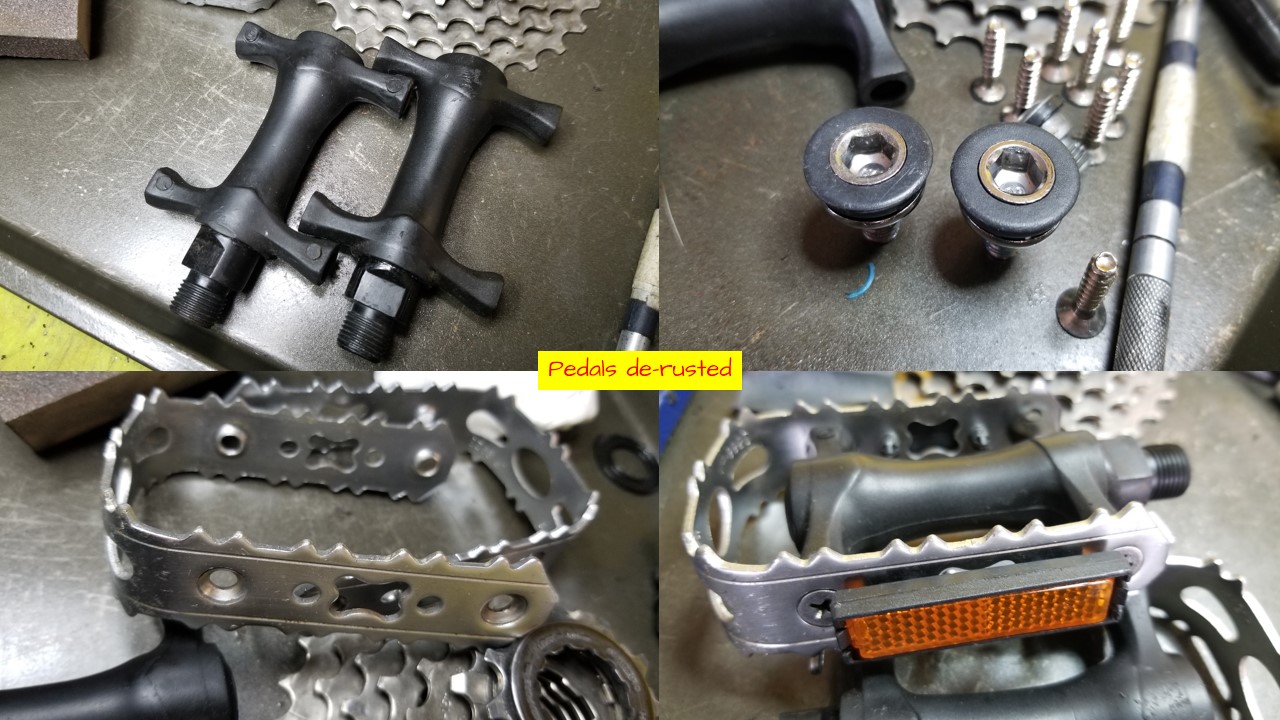

Restoration Pics

Components

  • Frame: quality aluminum frame
  • Fork: quality steel fork, forged dropouts

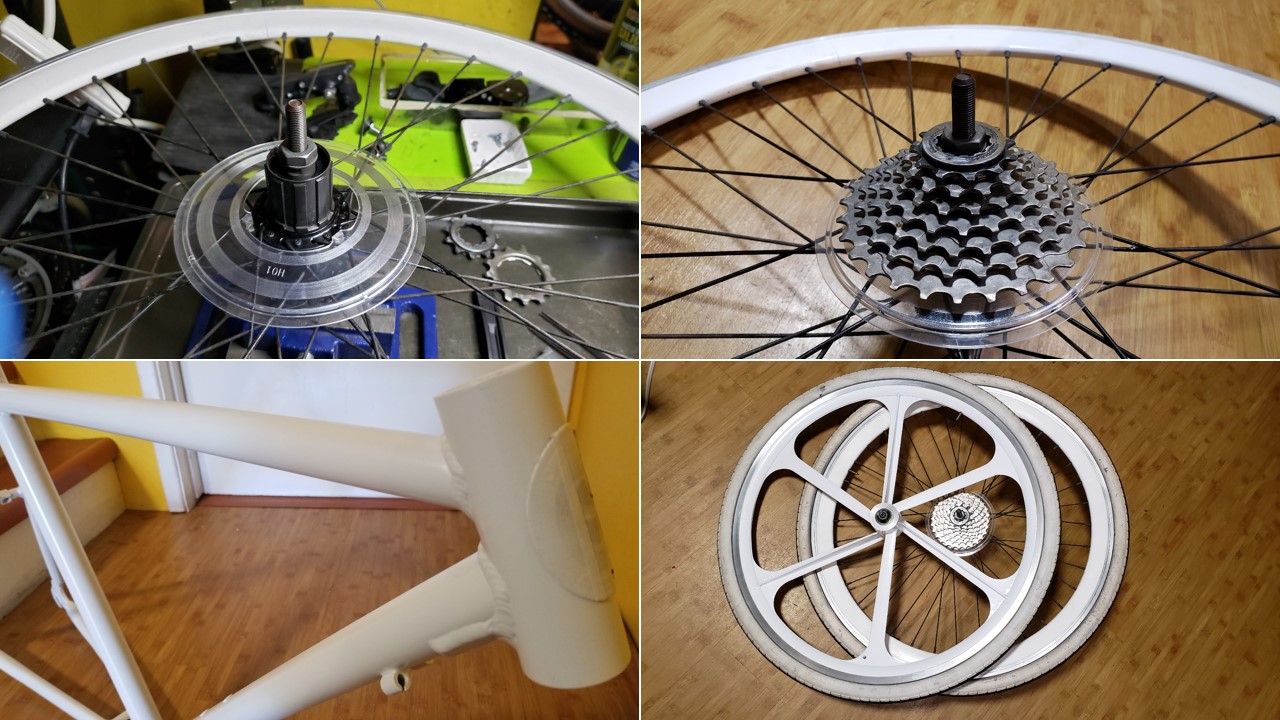

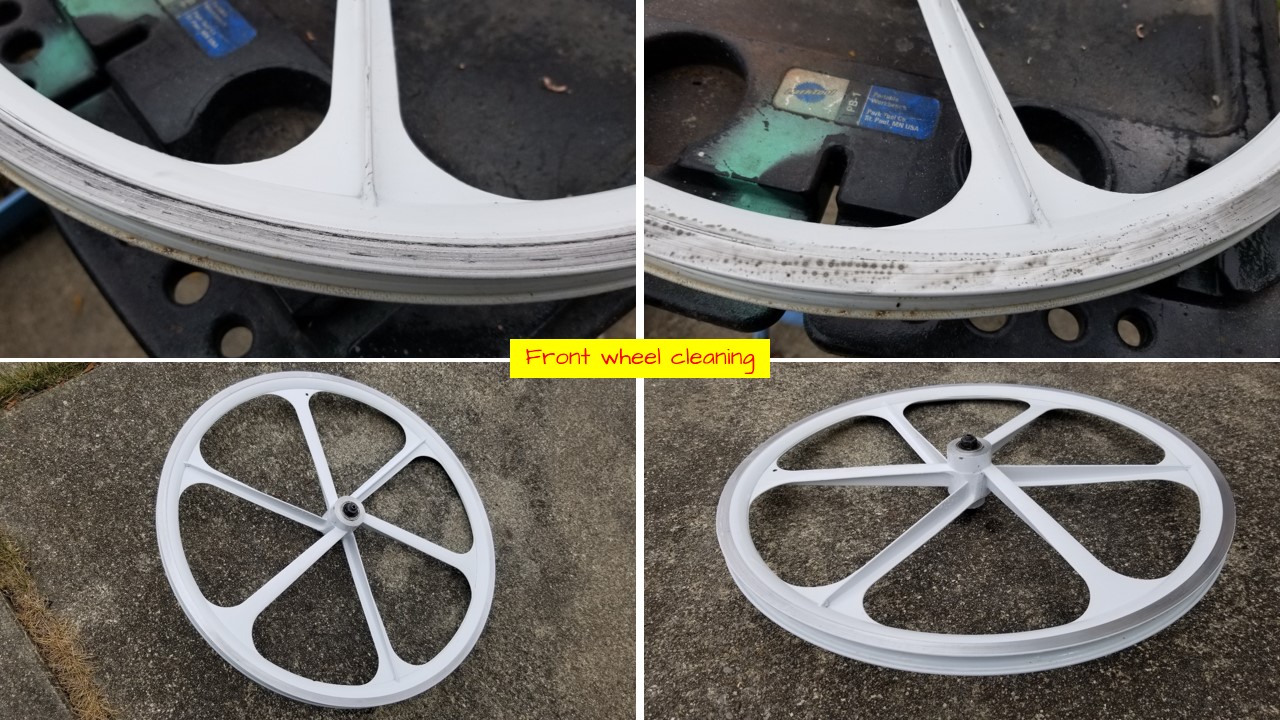

  • Wheels: 26″ diameter, wide rims, 32 spokes in the rear wheel 6 spokes on the futuristic front wheel

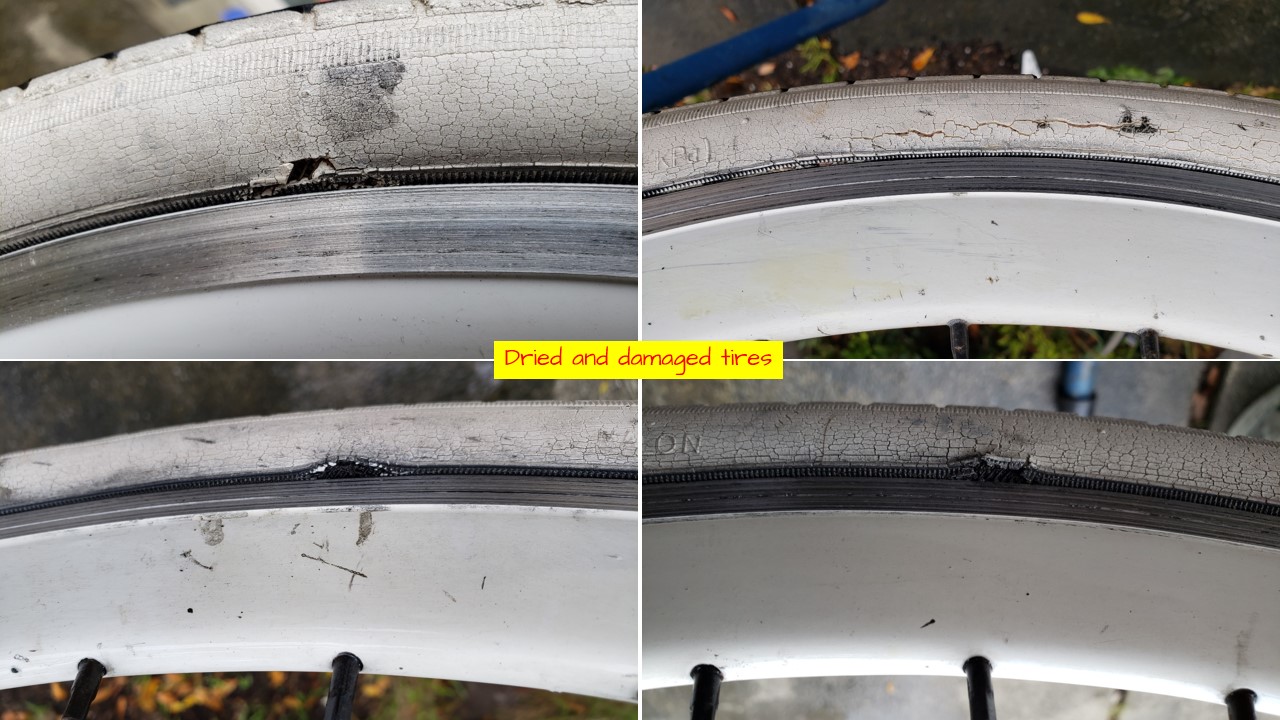

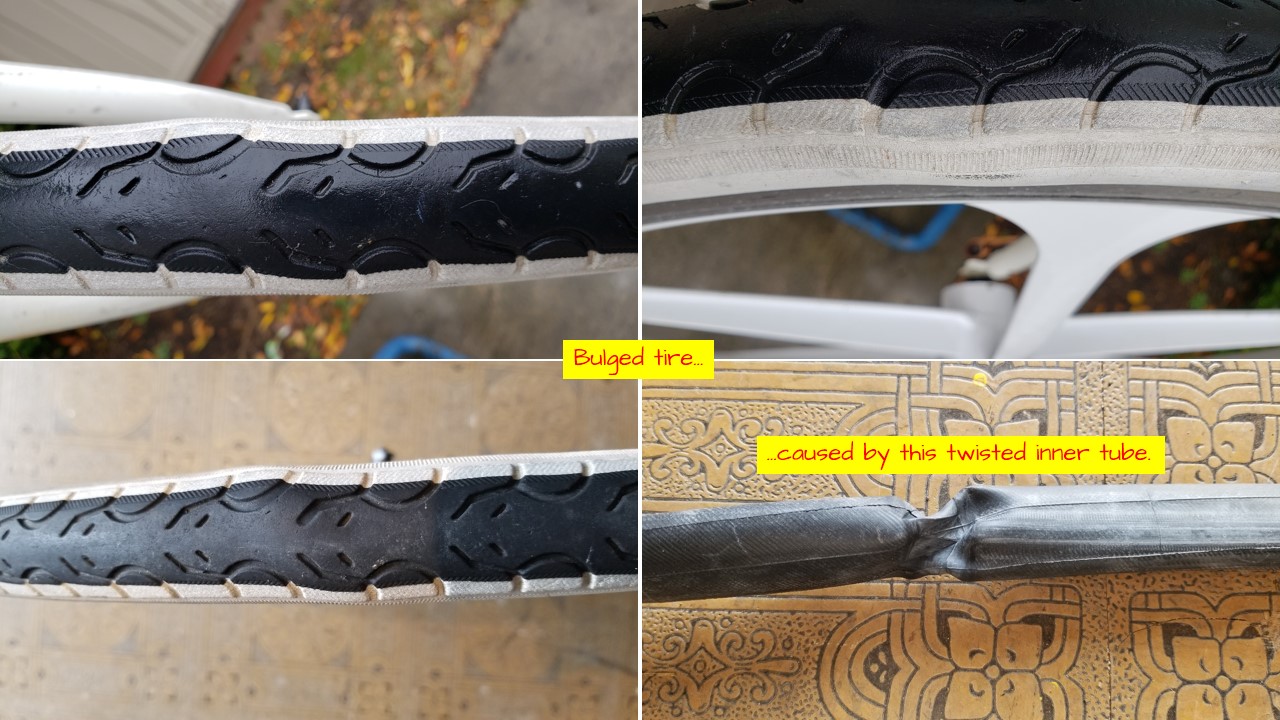

  • Tires: Kenda Kwest 26×1/25″ with white sidewalls (max width 26×1.5″)

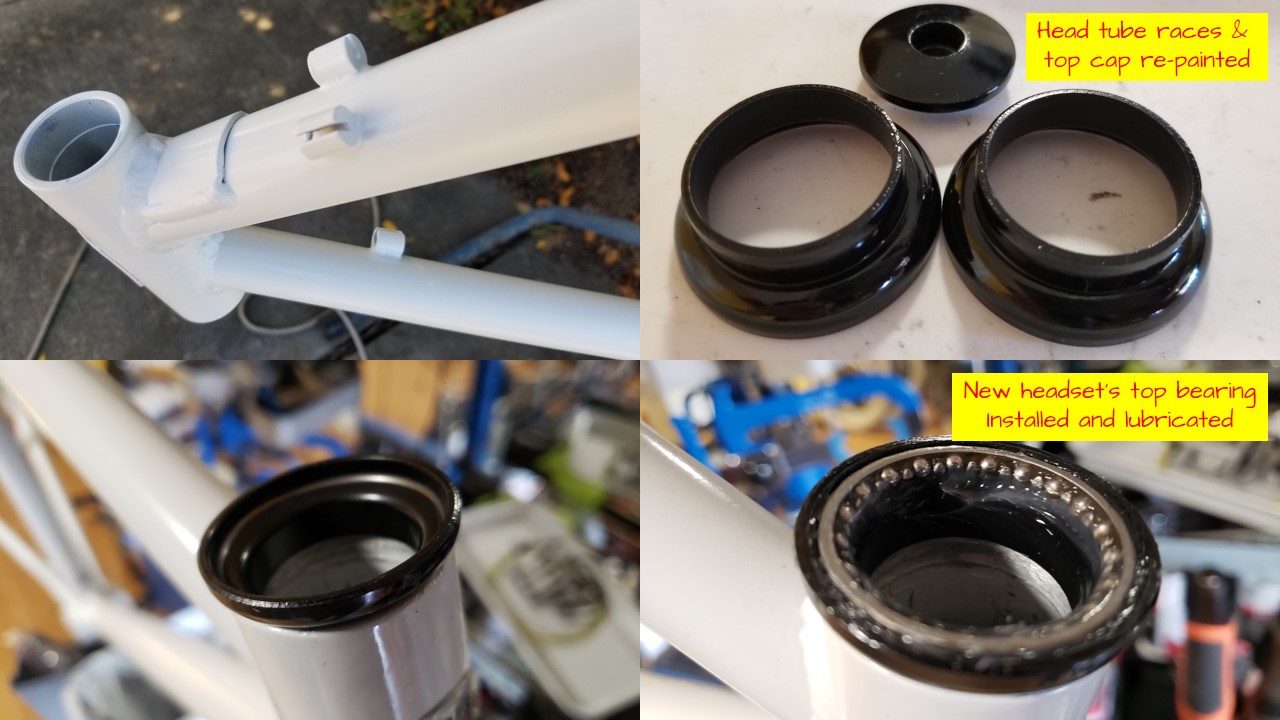

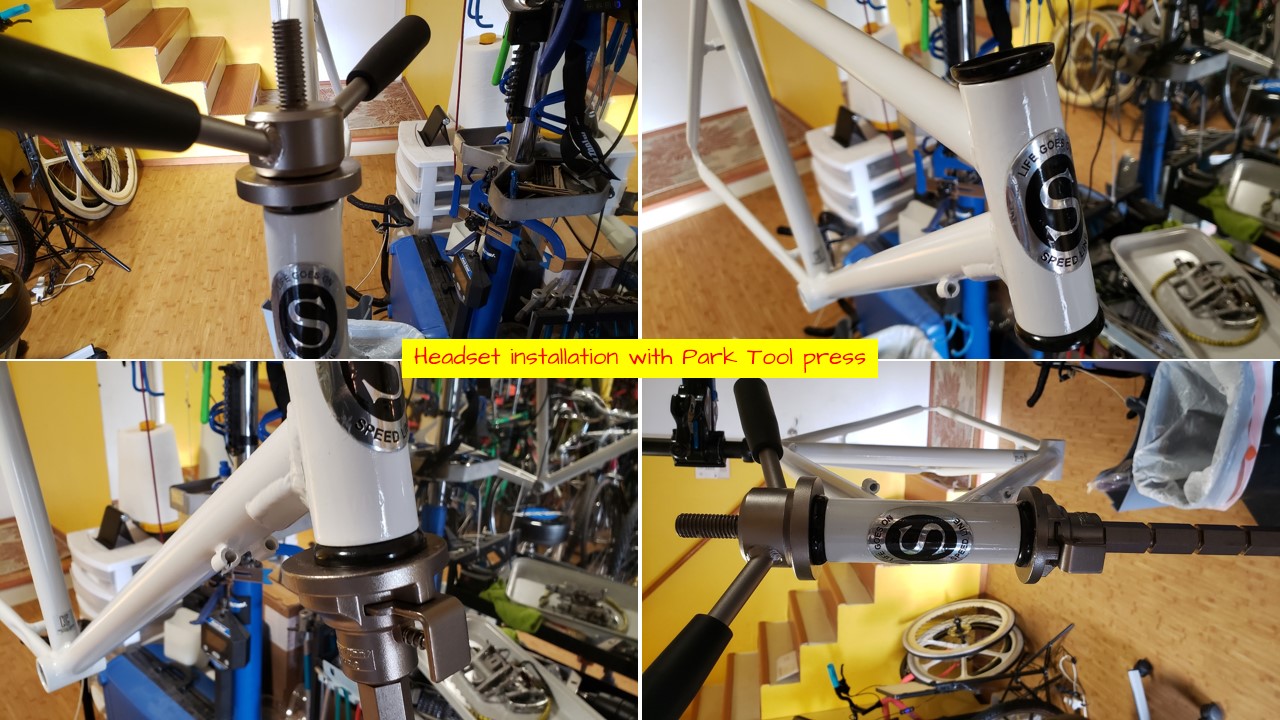

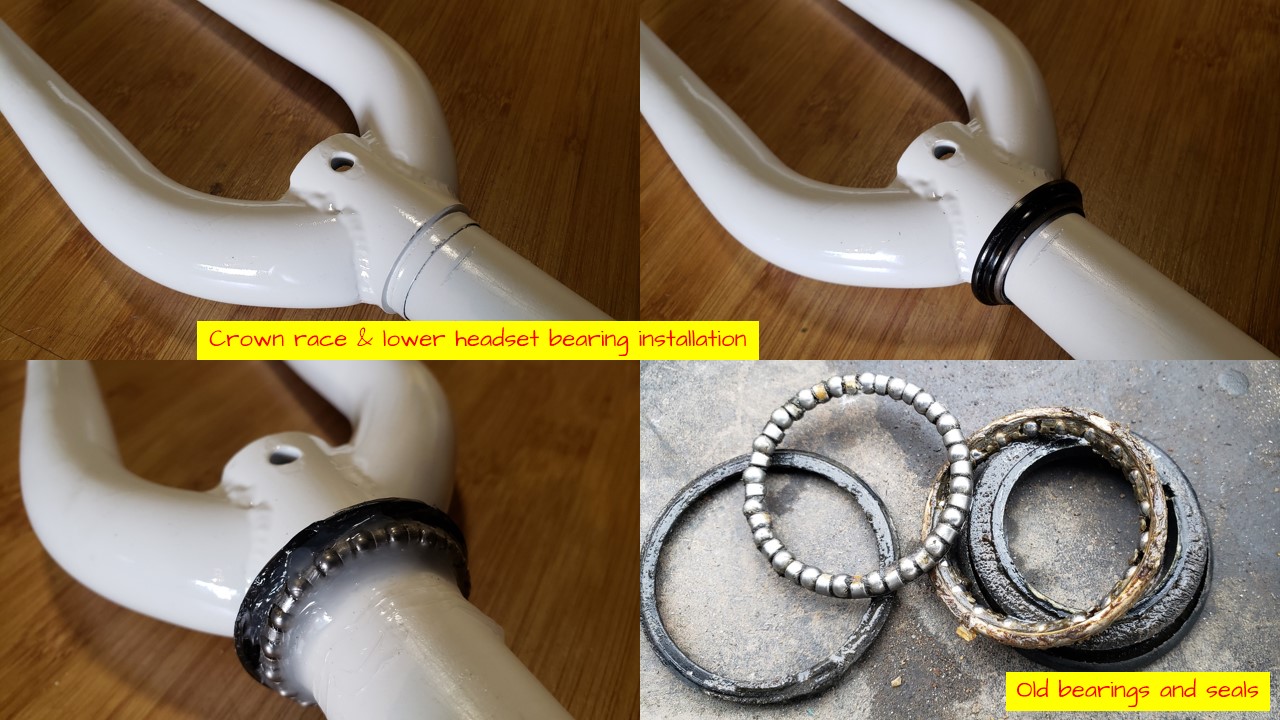

  • Headset: 1-1/8″ threadless

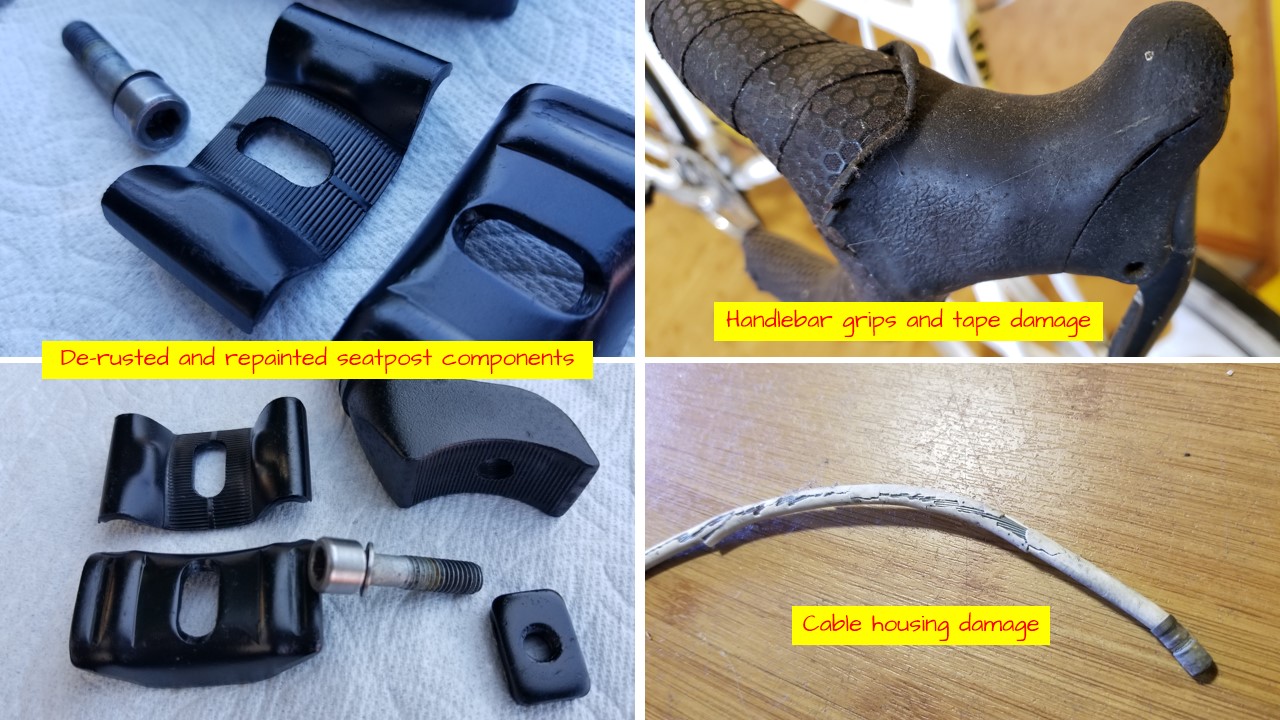

    Seatpost: Bina 27.2mm diameter
  • Stem: Steel 1″ diameter
  • Handlebar: Dimension 25.4mm/620mm alloy swept back comfort black
  • Handlebar grips: Generic kraton grips white
  • Shifter: Shimano 7-speed
  • Brake levers: Universal 2.2cm black/alloy
  • Brakes: Generic caliper brakes
  • Rear Derailleur: Shimano Tourney SLFT557R
  • Cranks: forged polshed alloy 48T chainring

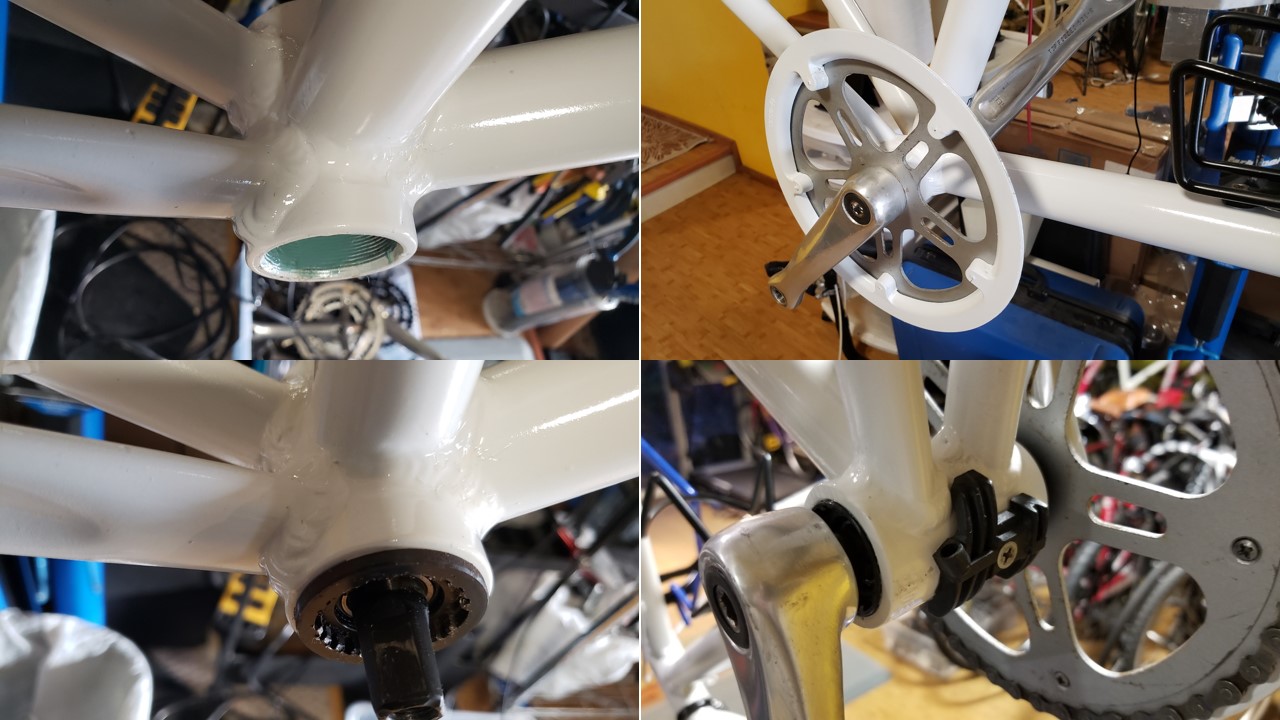

  • Bottom Bracket: Modus, sealed cartridge, repacked
  • Cassette: Shimano 11-28T

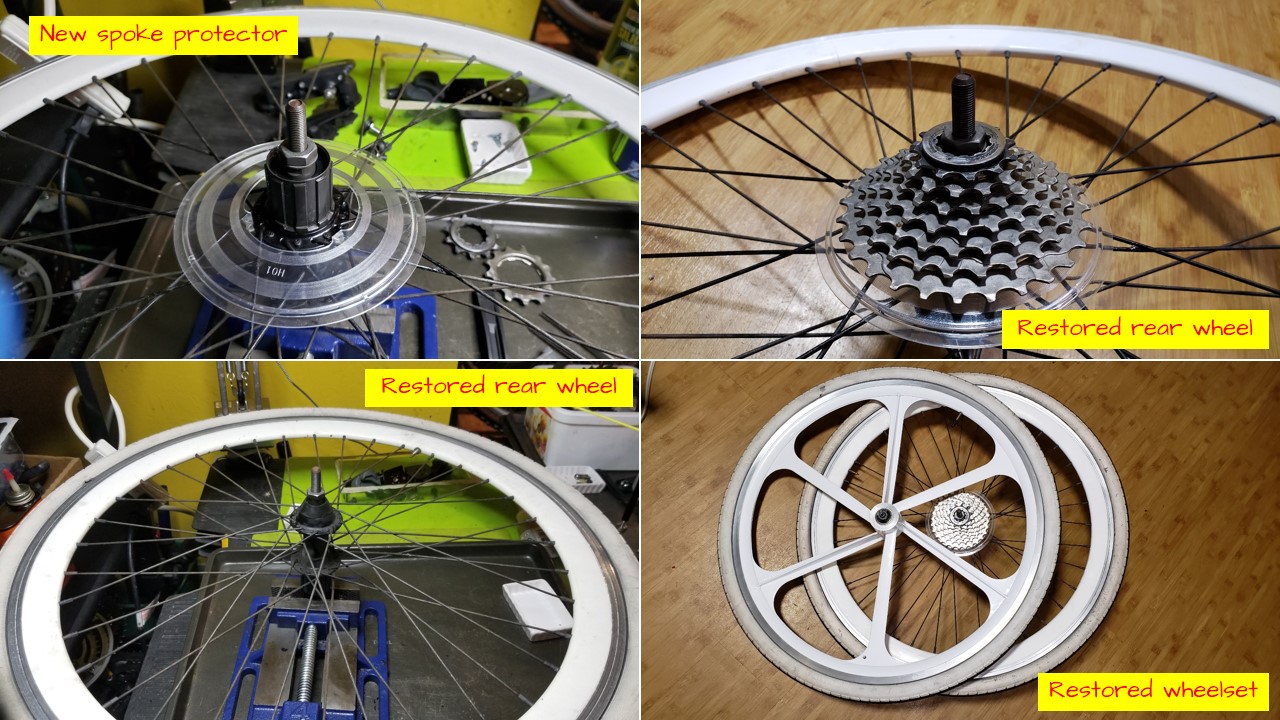

  • Spoke protector: Bamboo Kitchen
  • Saddle: Velo orange leather gel with cro mo reels
