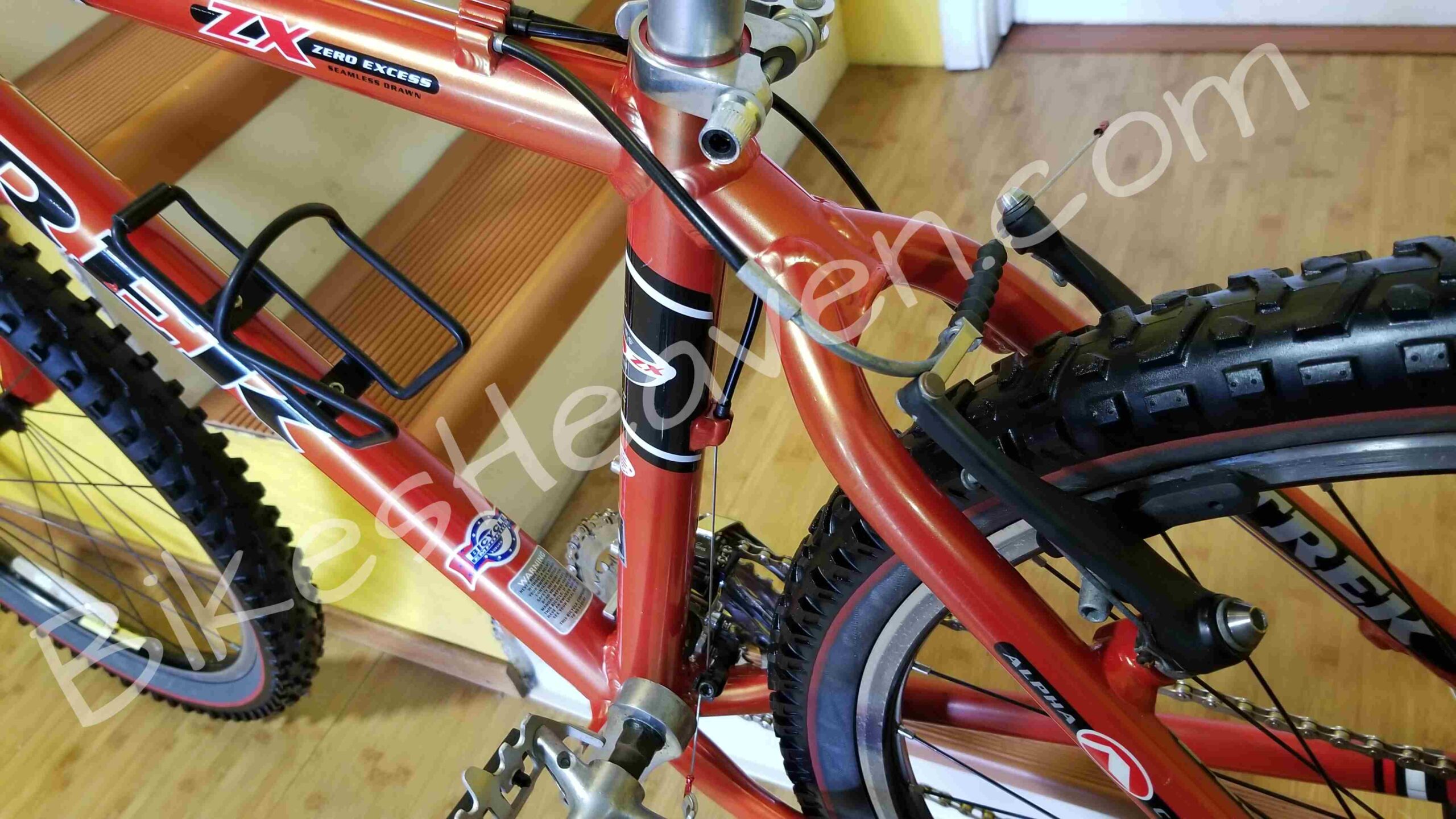

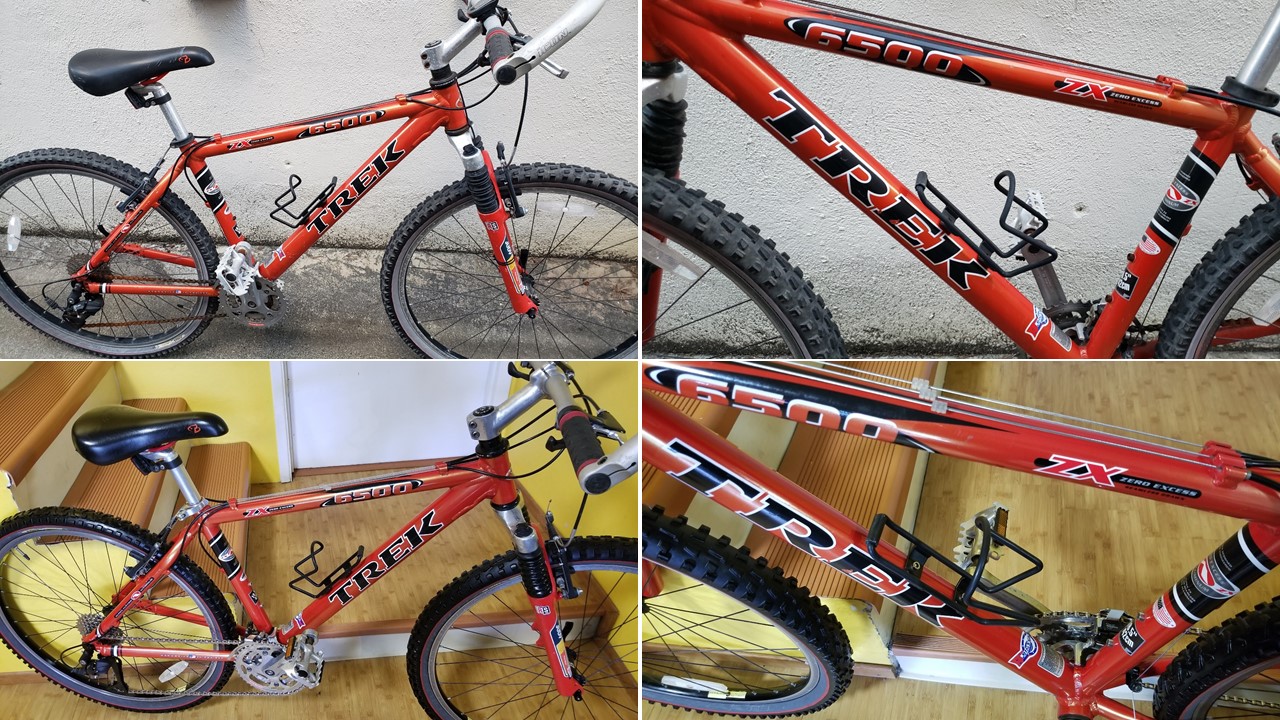

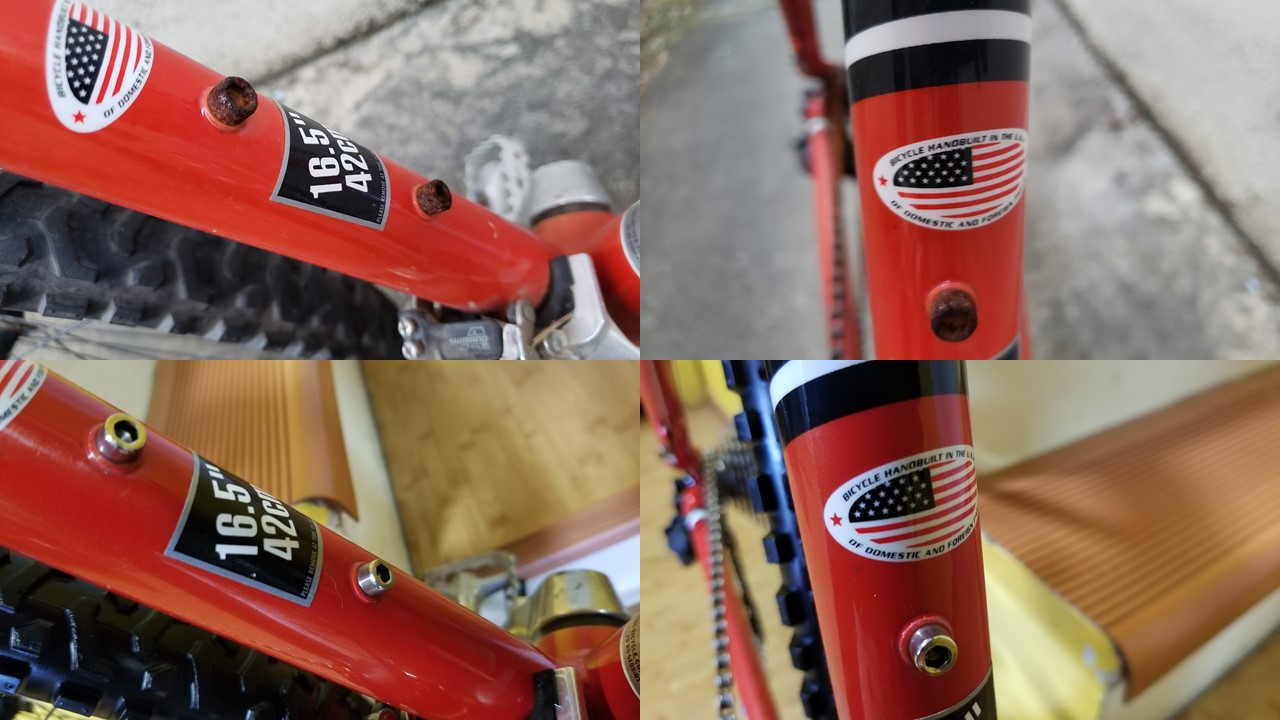

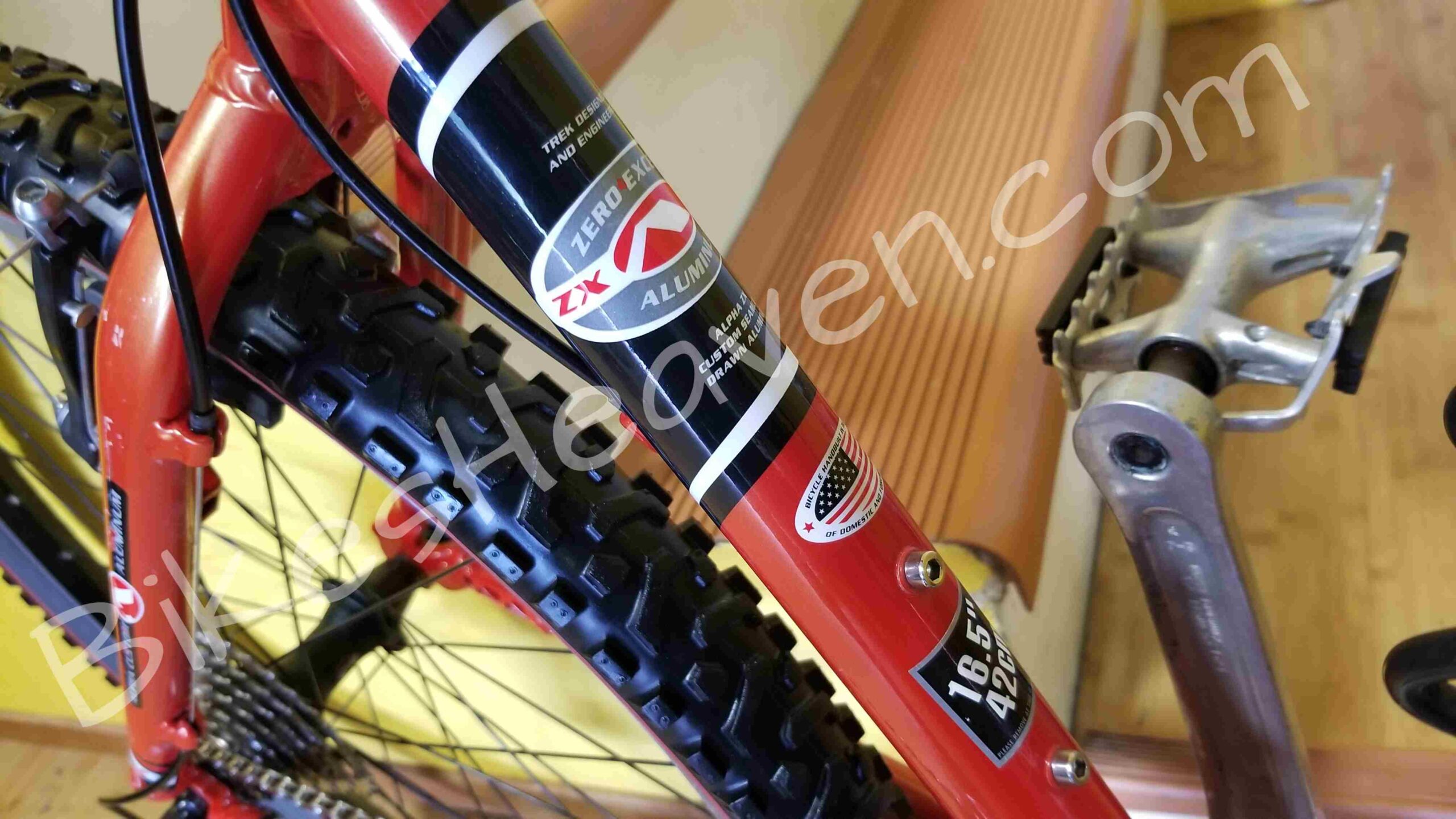

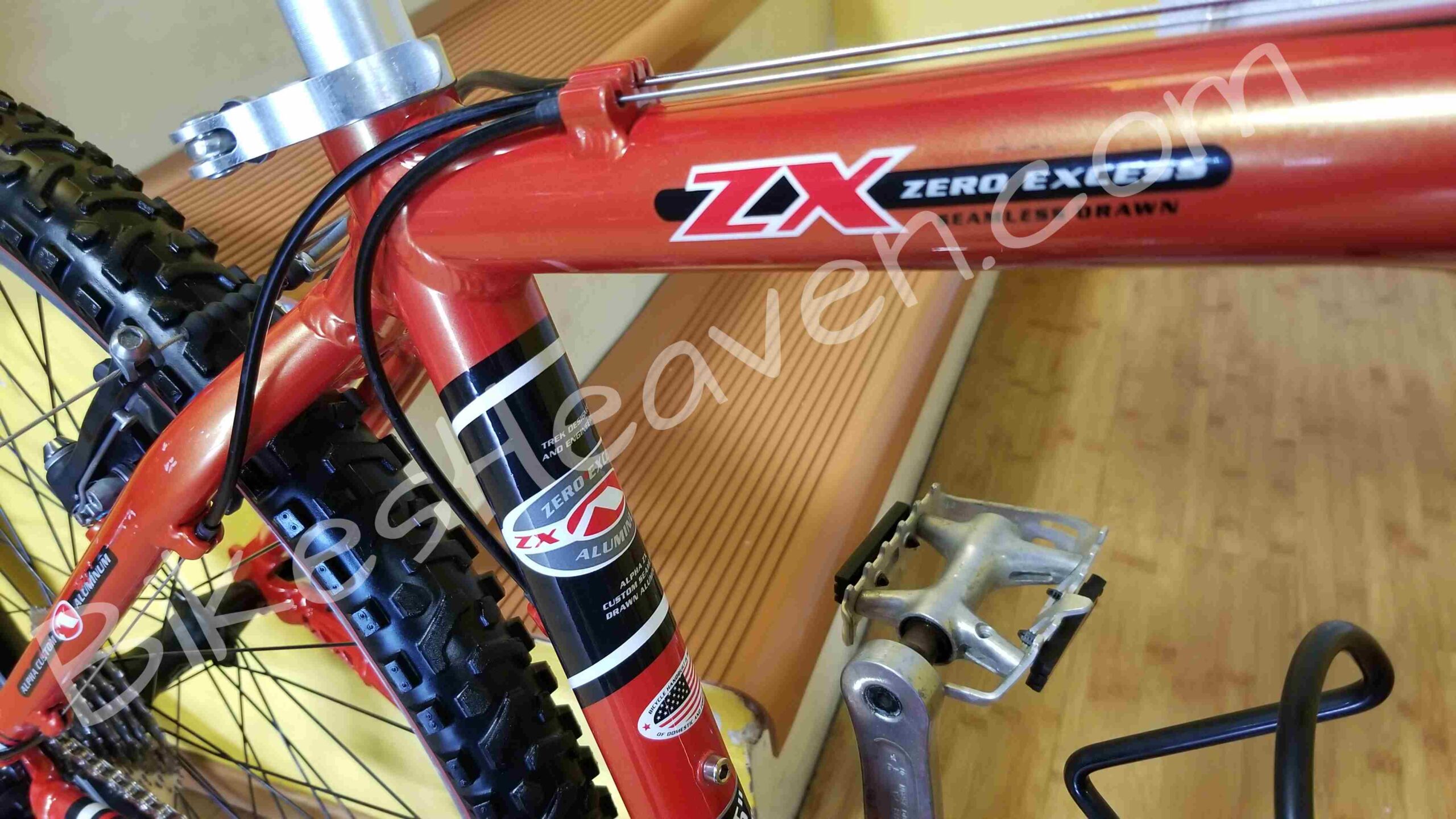

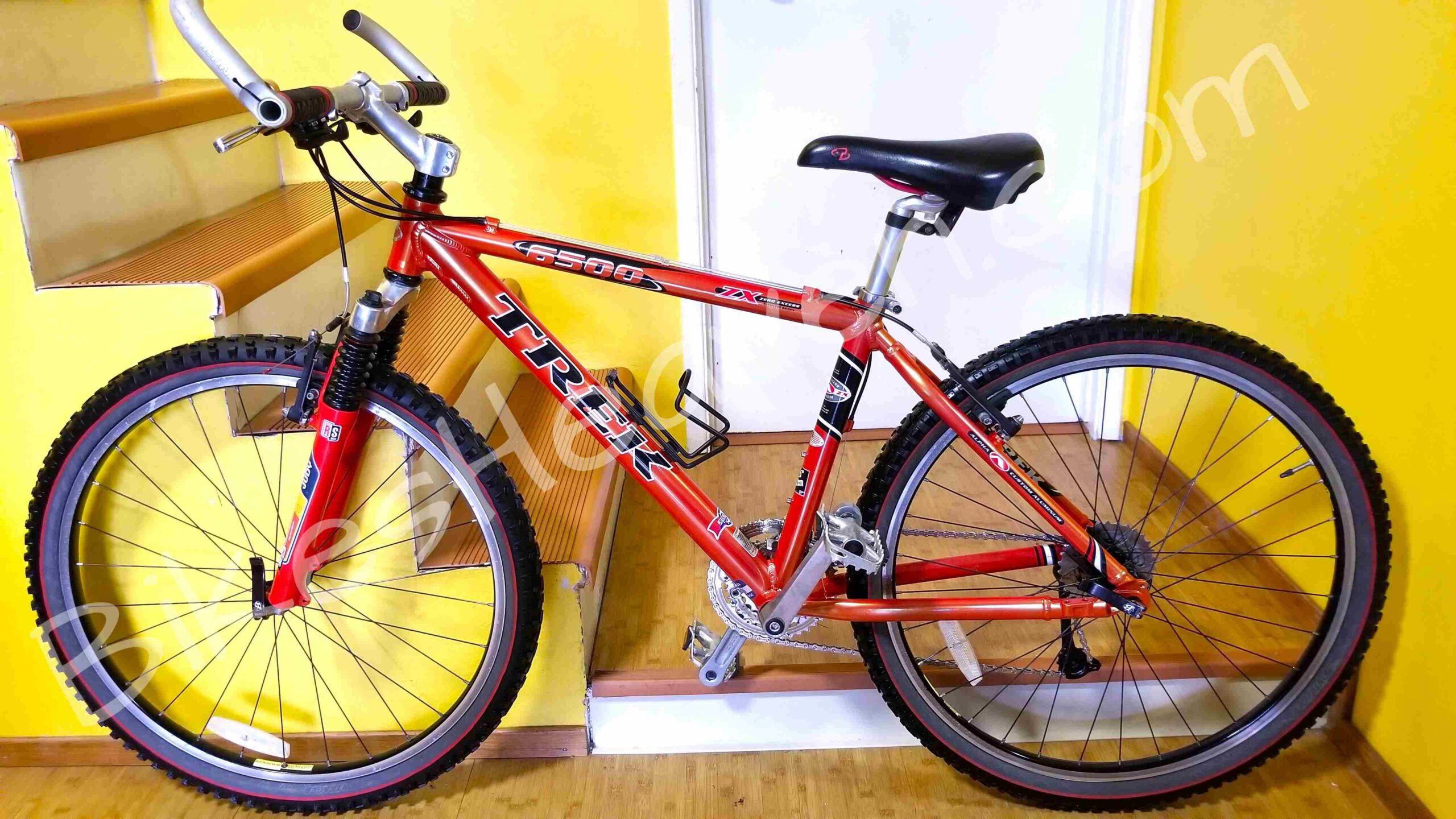

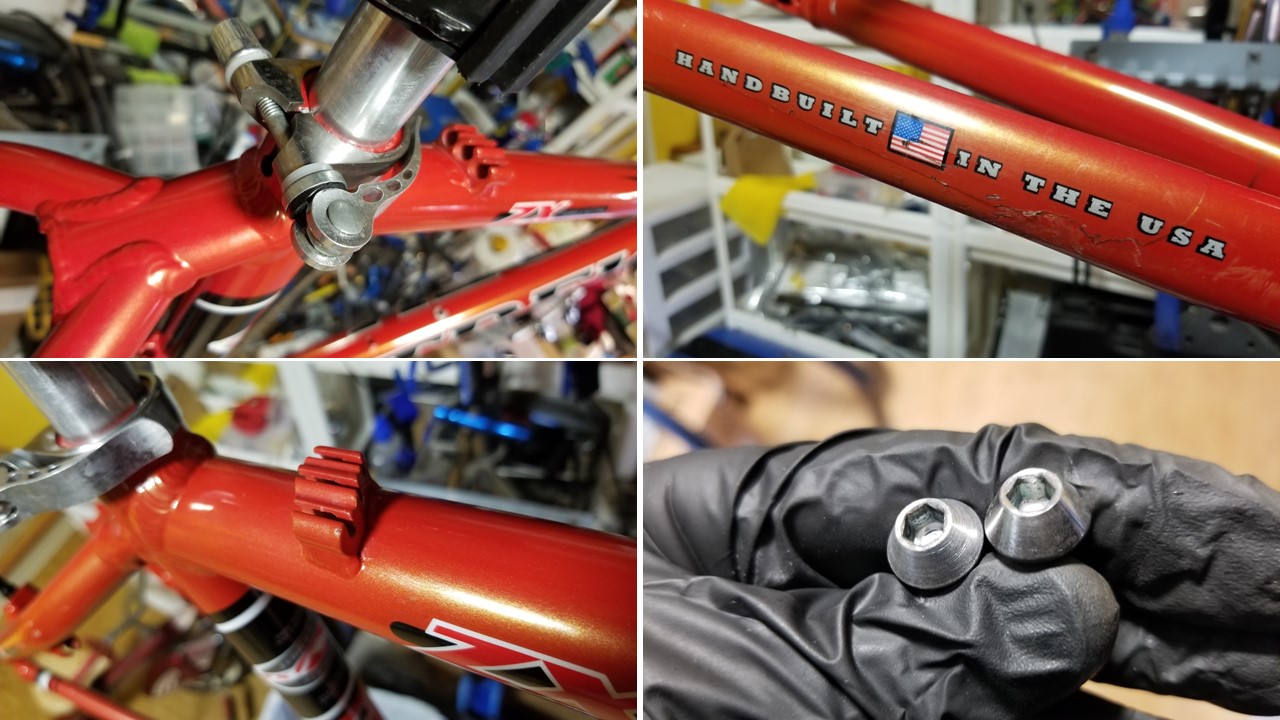

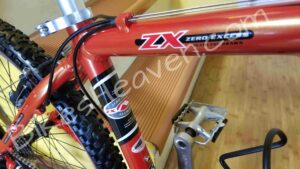

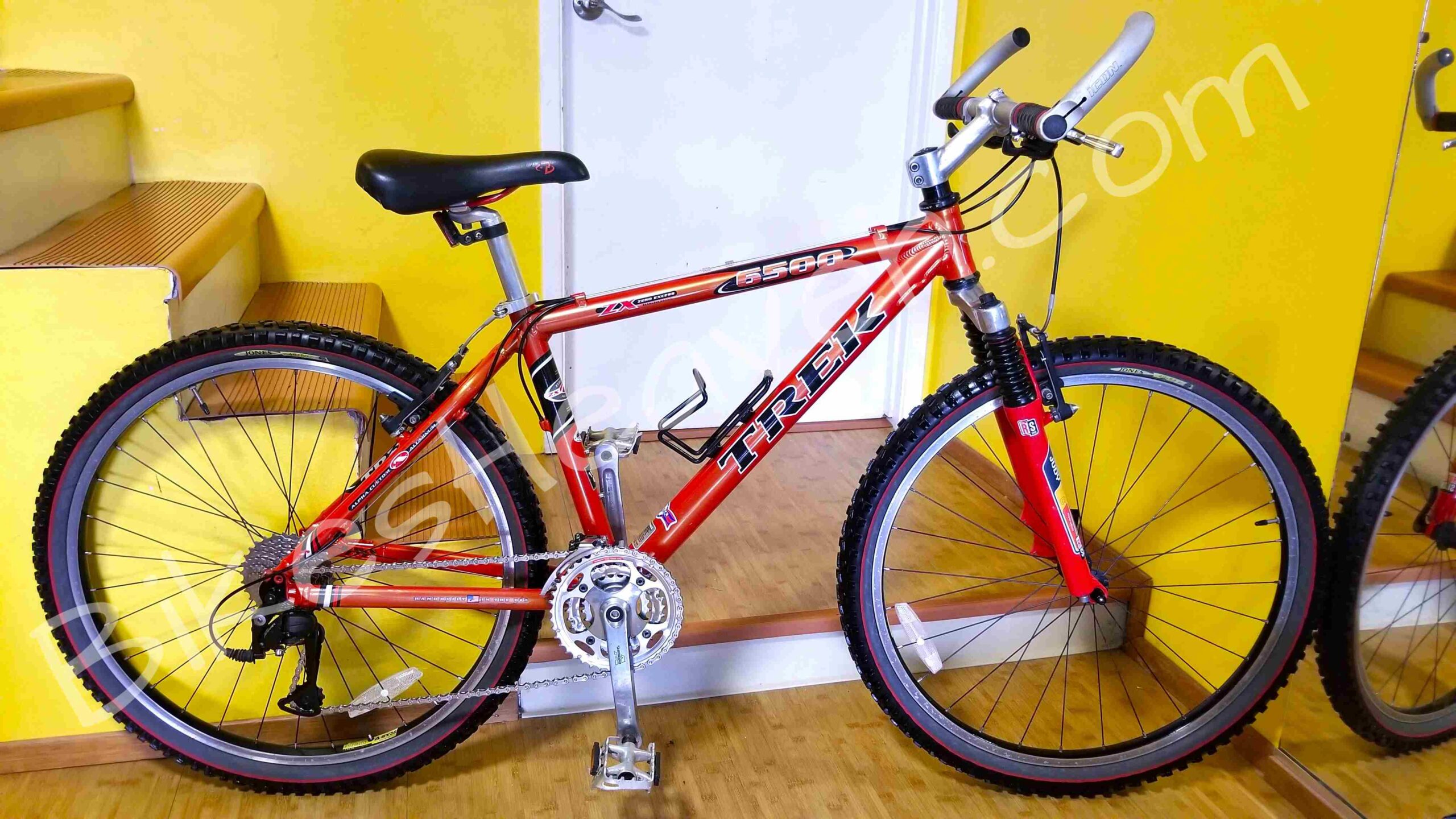

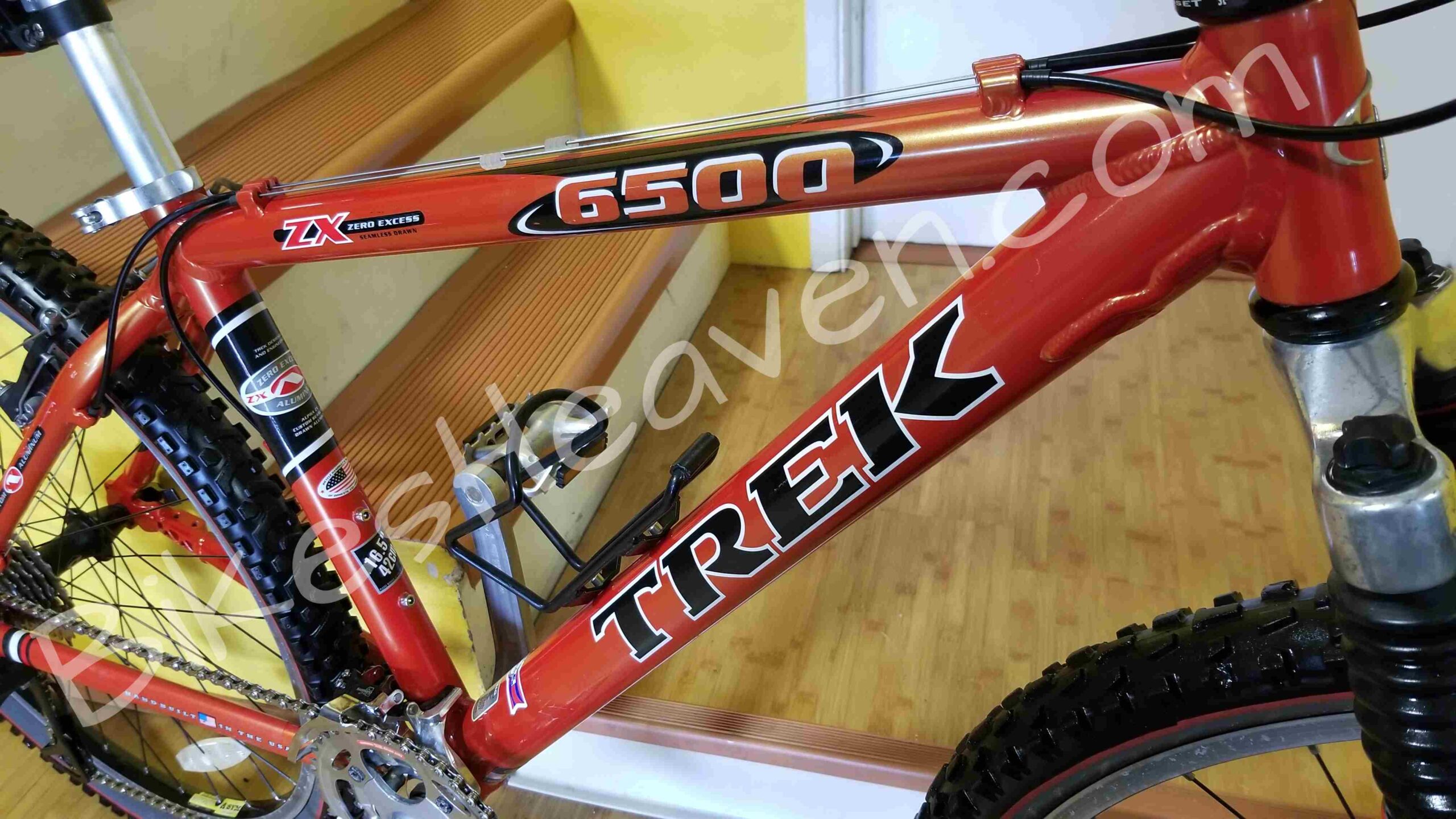

This is a classic, one of the last Trek bikes, handmade in the USA. Trek aluminum alloy frames are known for their durability and geometry. This frame is in excellent condition. The color is a highly regarded ‘Dragonfly Orange’. The ZX (Zero Excess) branding on the top tube indicates it was part of Trek’s high-performance aluminum mountain bike line. Key Features: Alpha Custom Aluminum frame (Trek’s proprietary lightweight alloy); RockShox Judy C fork, ICON and Bontrager components (standard factory spec for Trek mountain bikes of the late ’90s), 24-speed Shimano drivetrain. The Bontrager Jones all-terrain tires set still looks great. MSRP: $750.
Check the 1999 Trek Catalog and BikePedia about this bike.

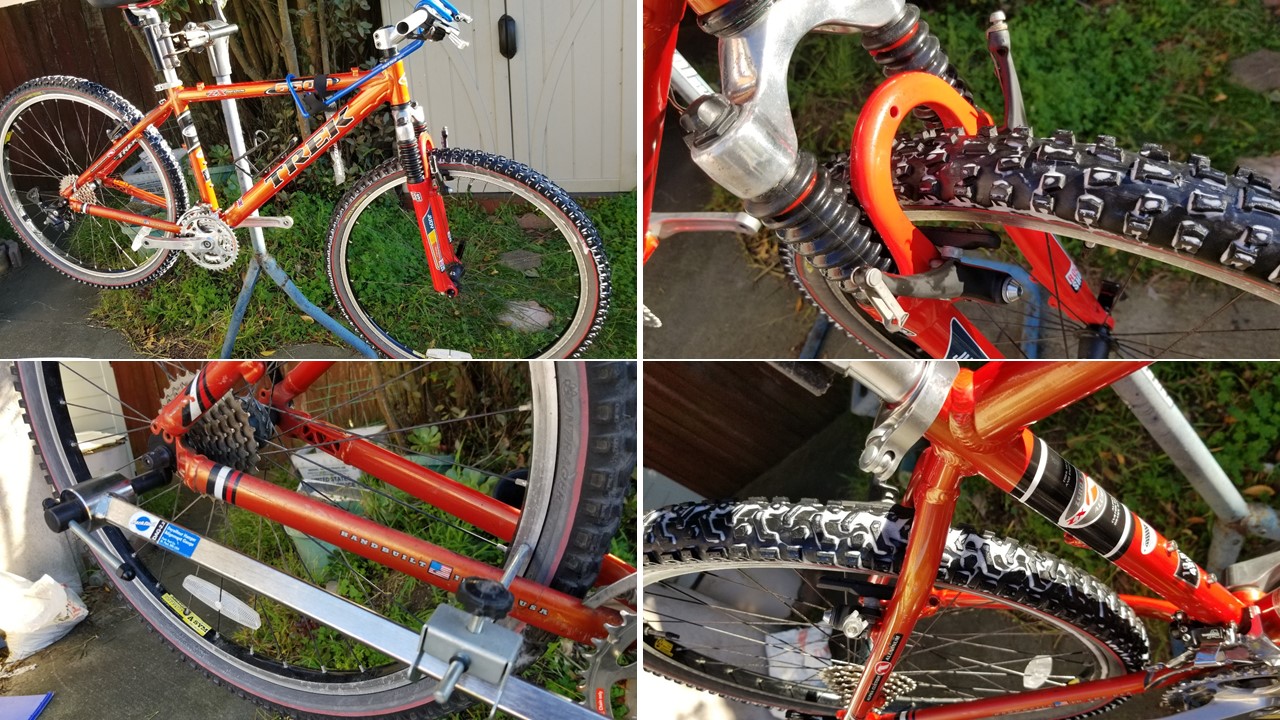

I restored this bike for Jack.
Original Components

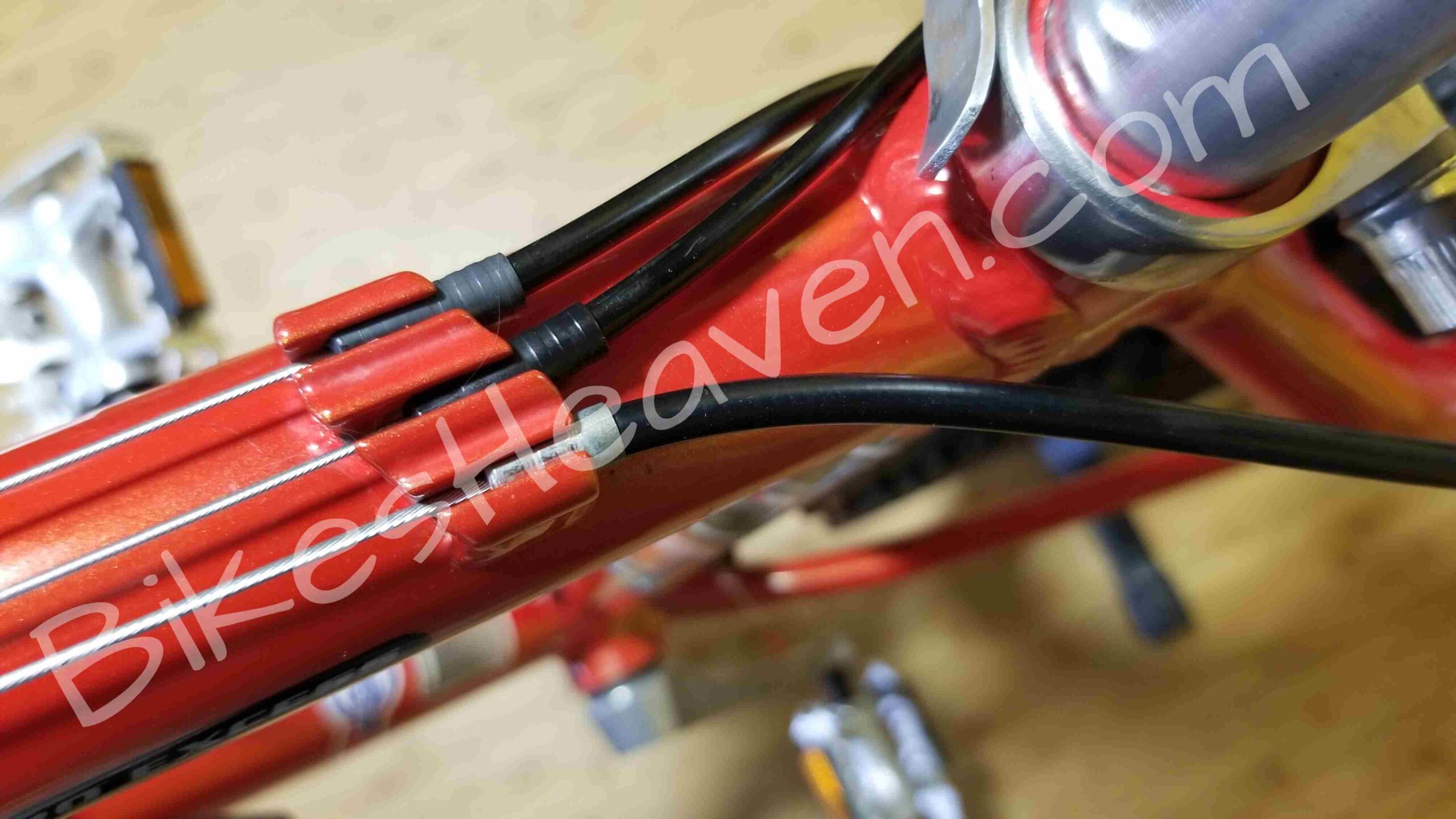

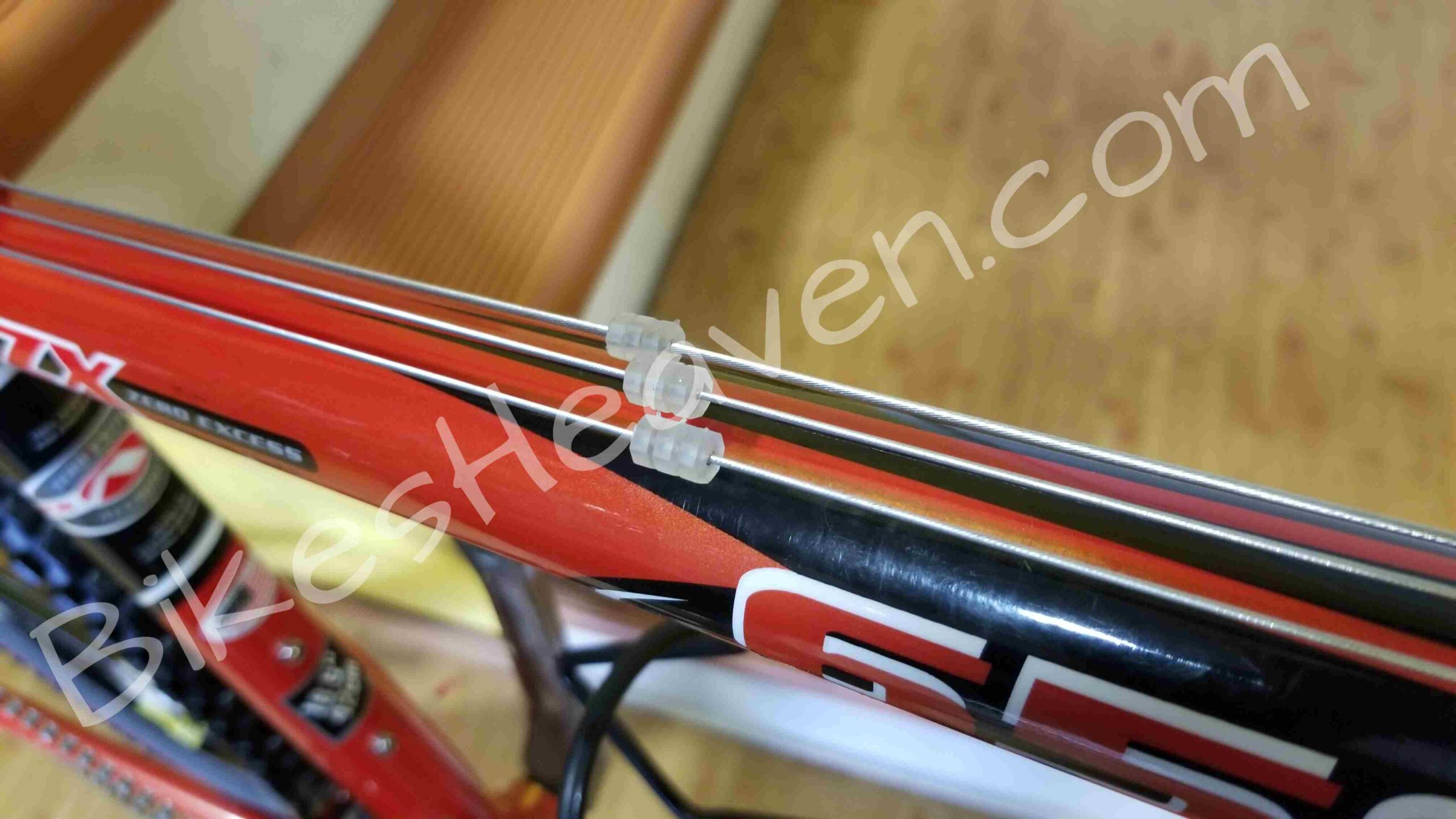

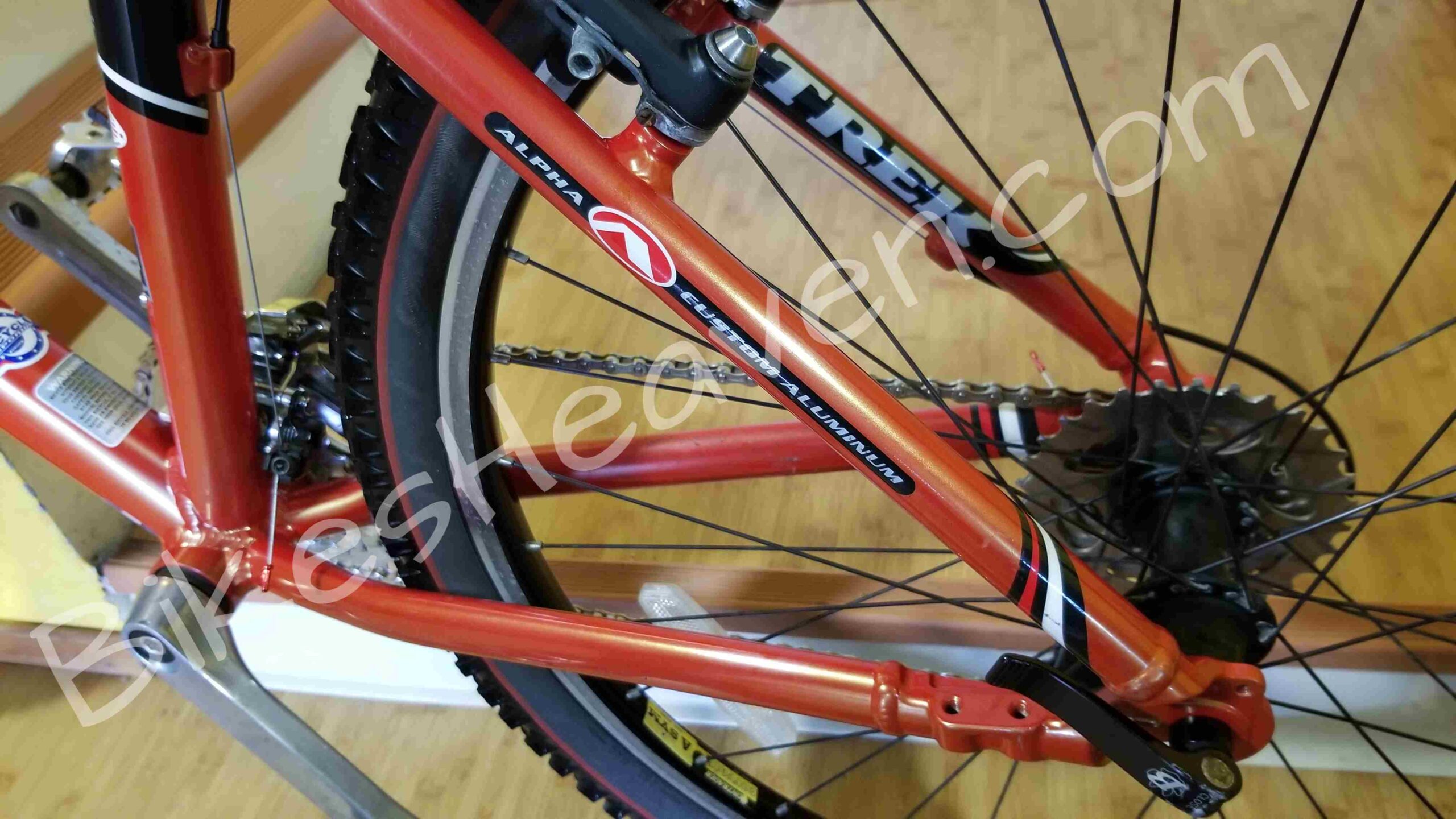

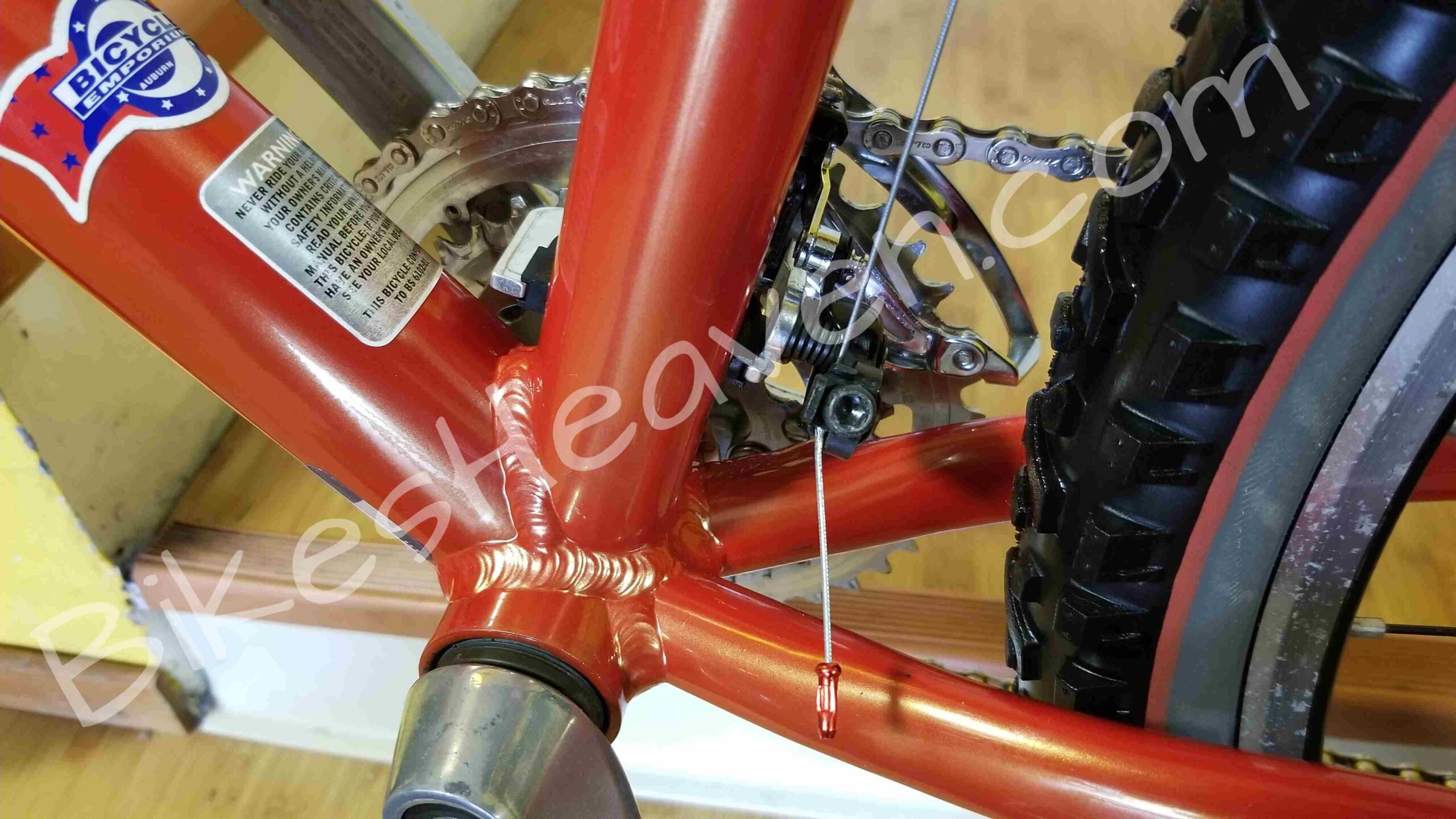

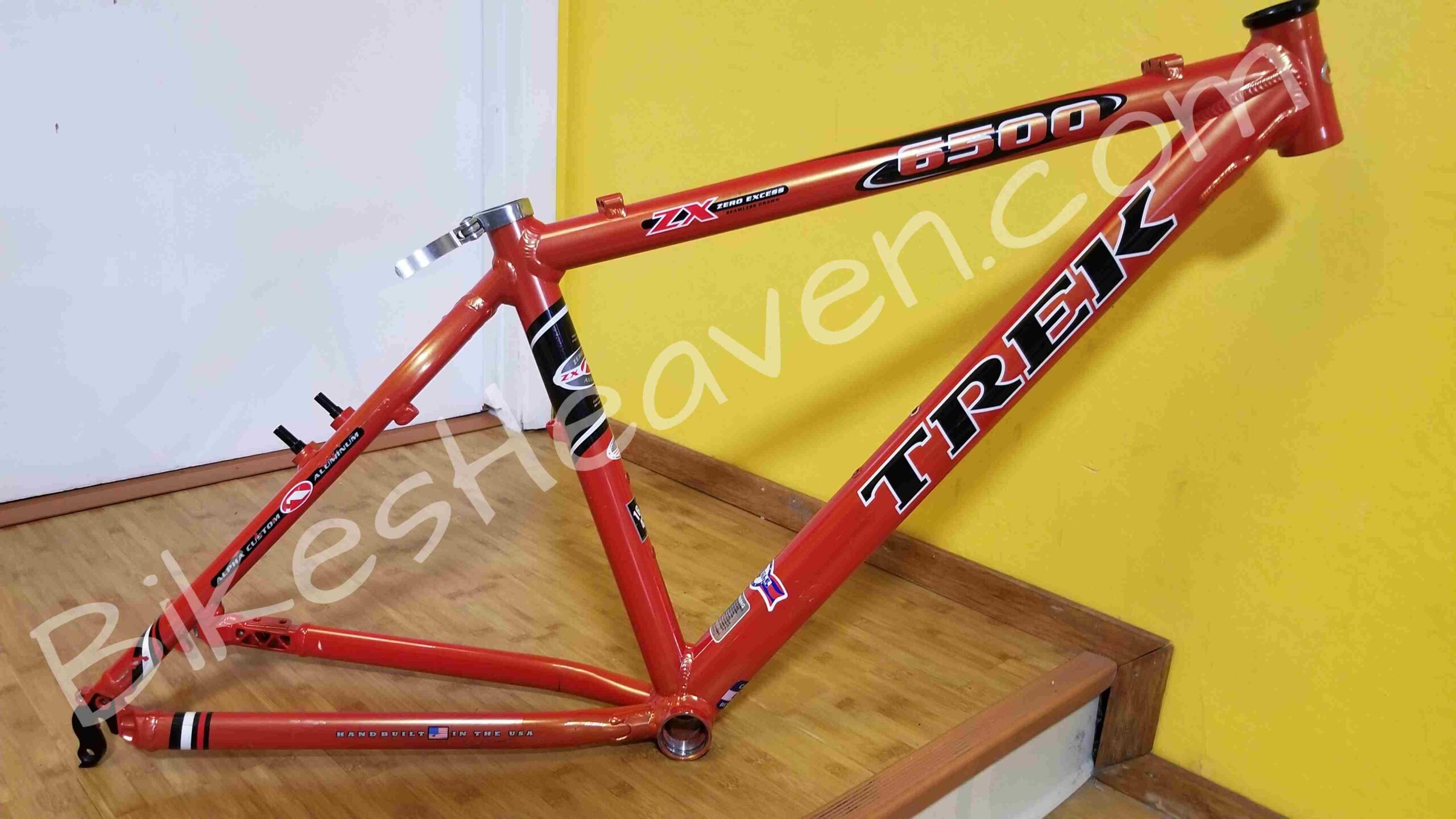

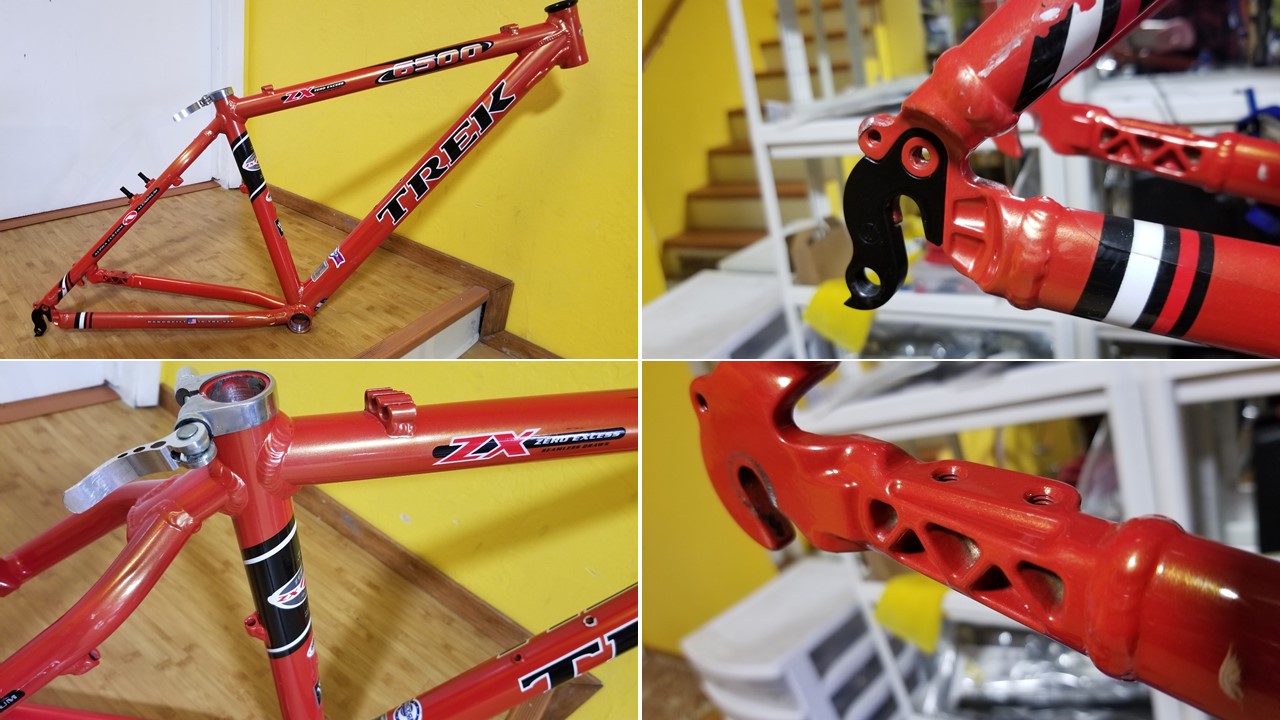

- Frame: Alpha ZX aluminum alloy, TIG-welded

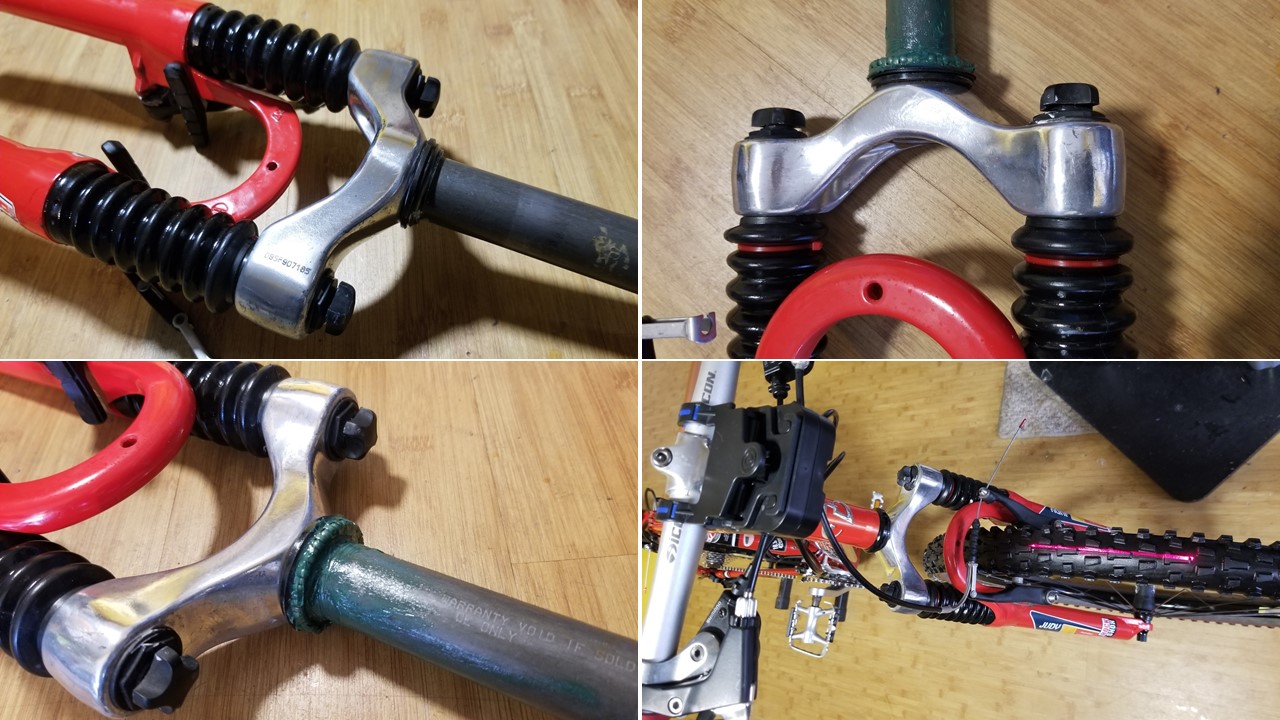

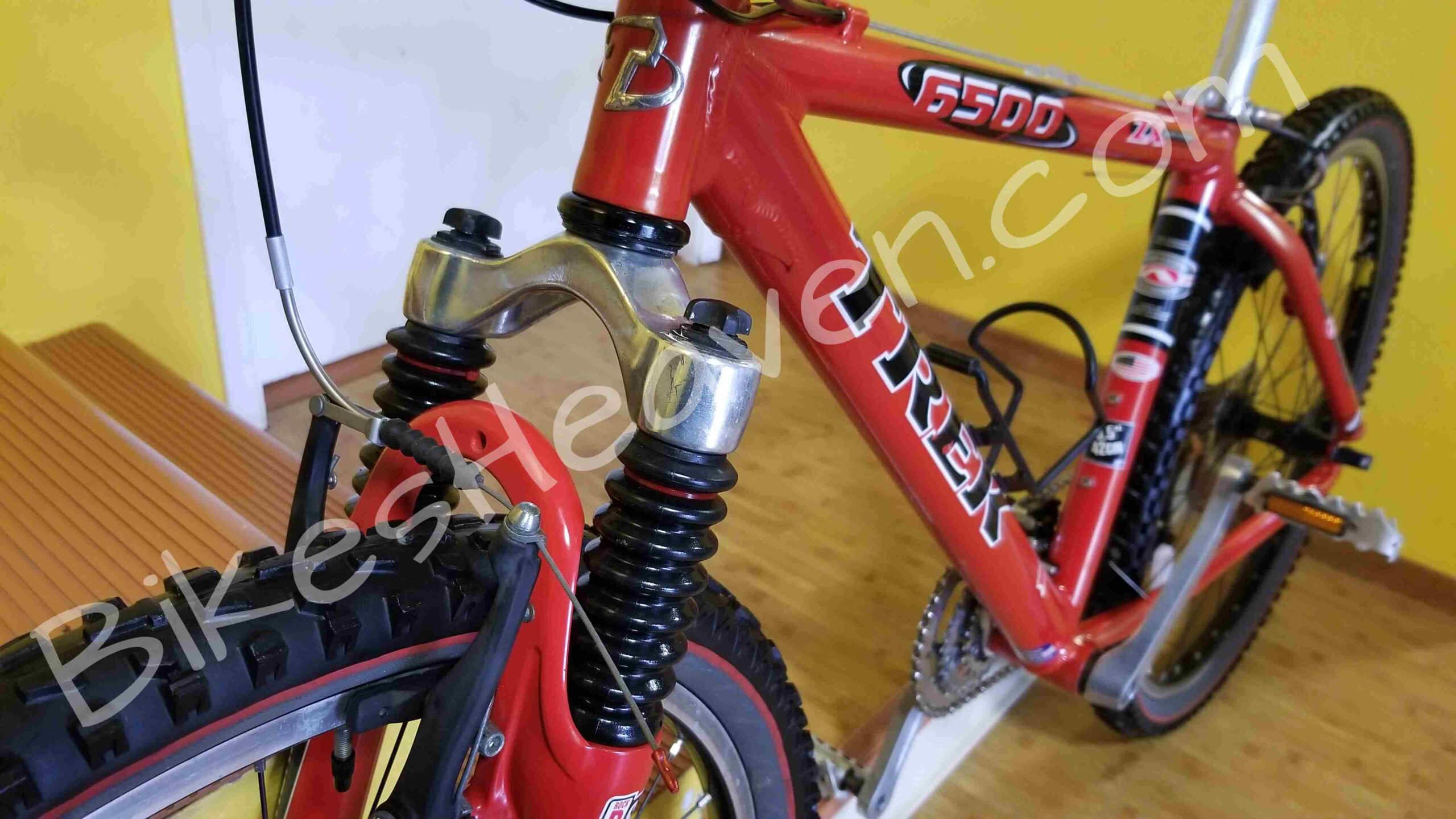

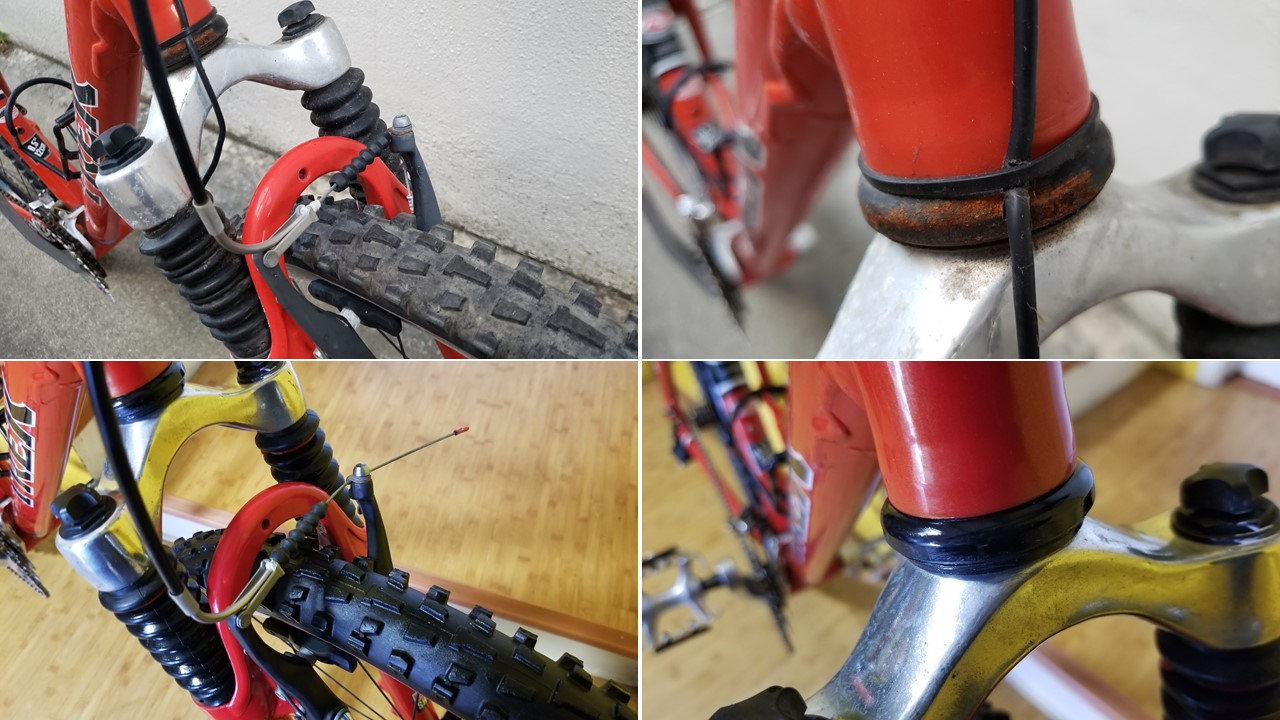

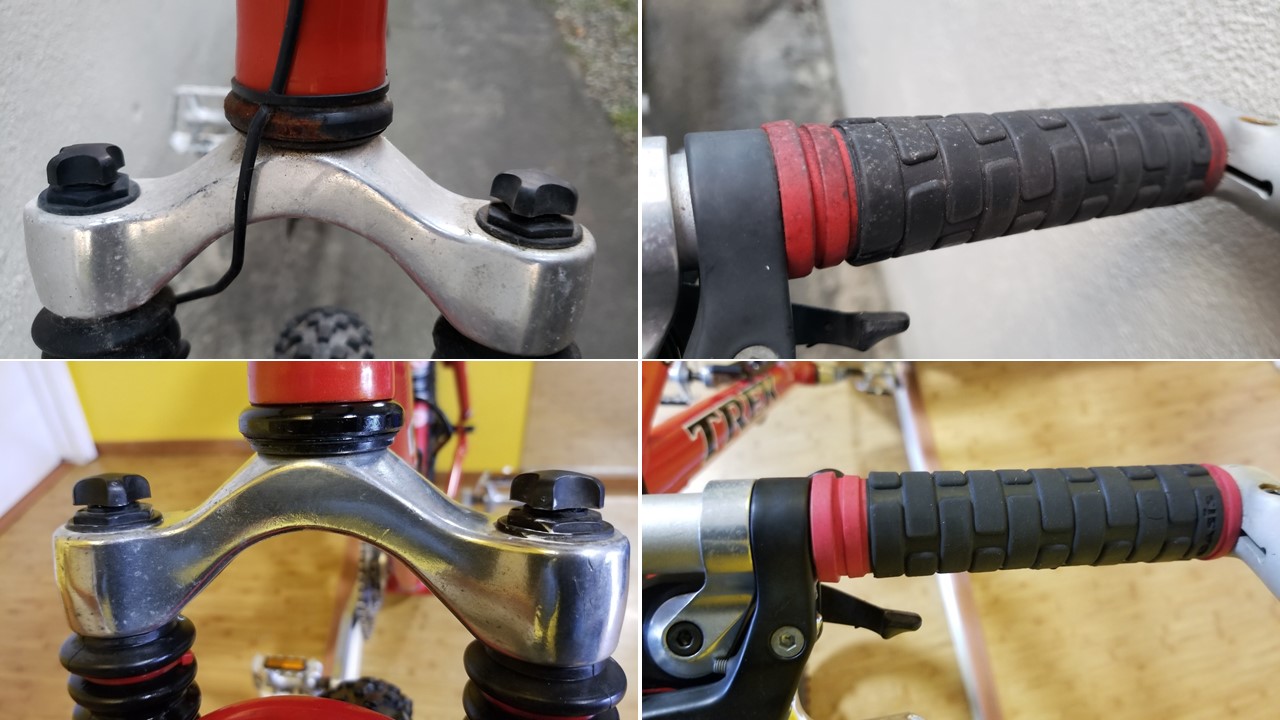

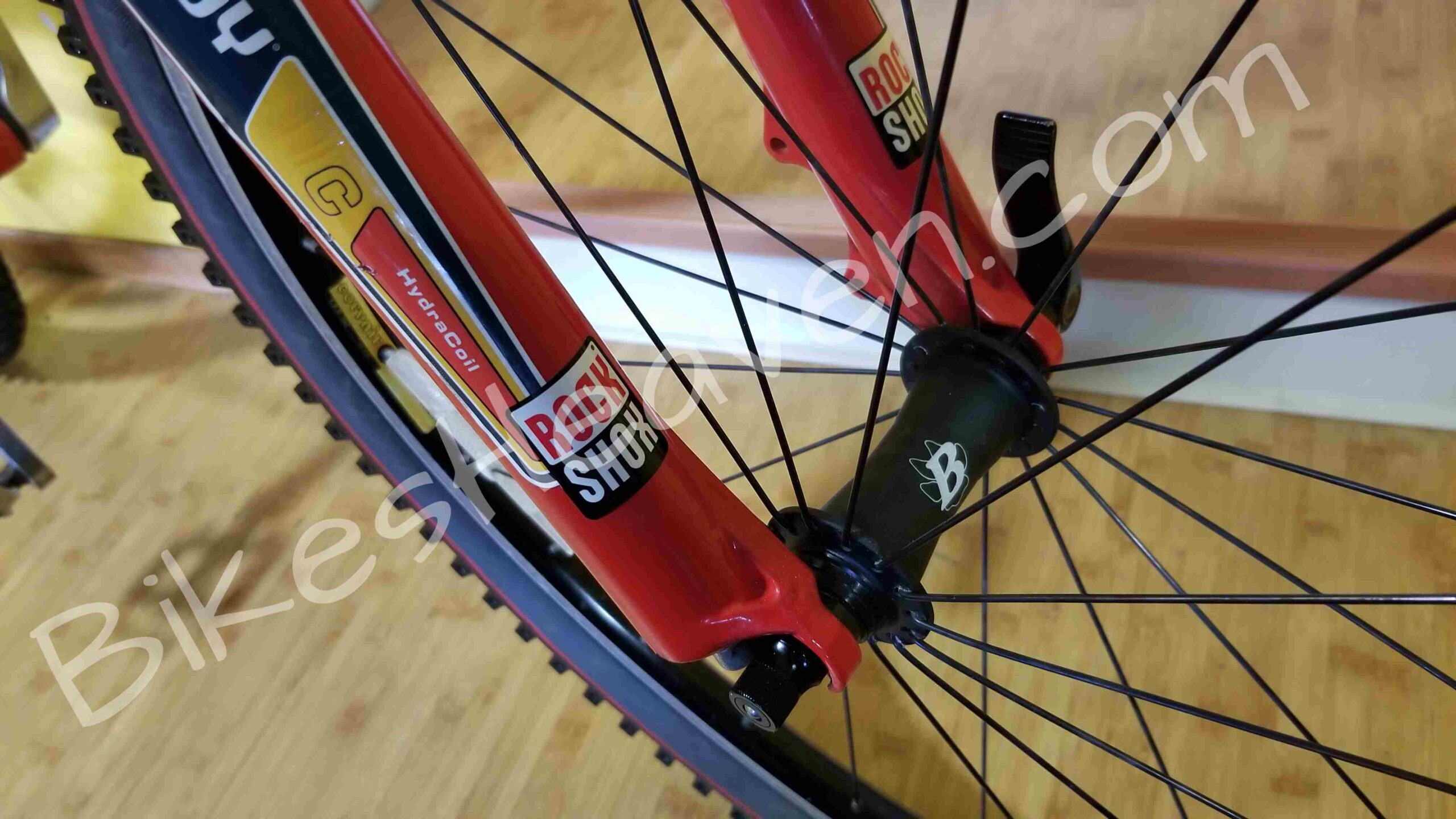

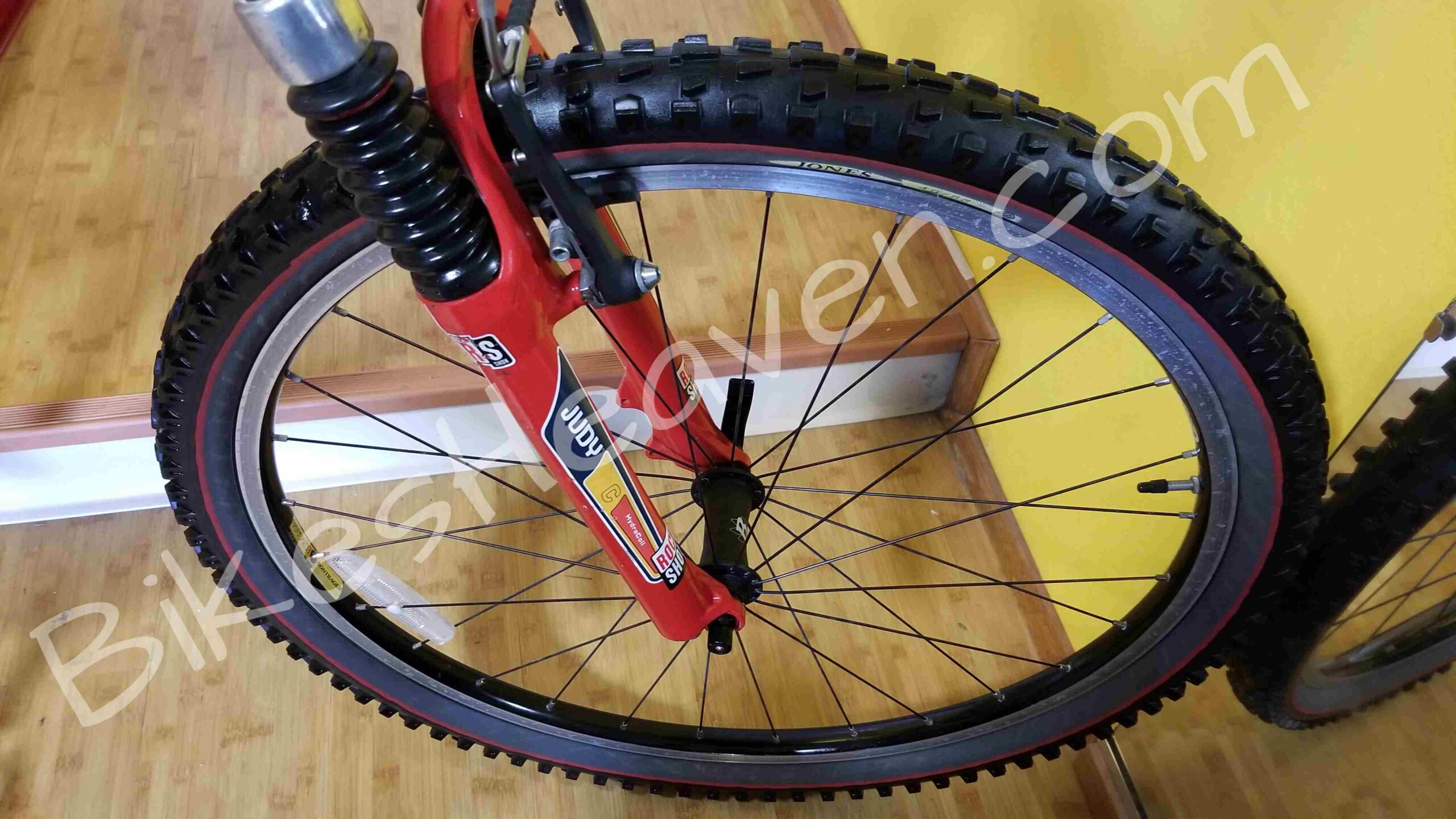

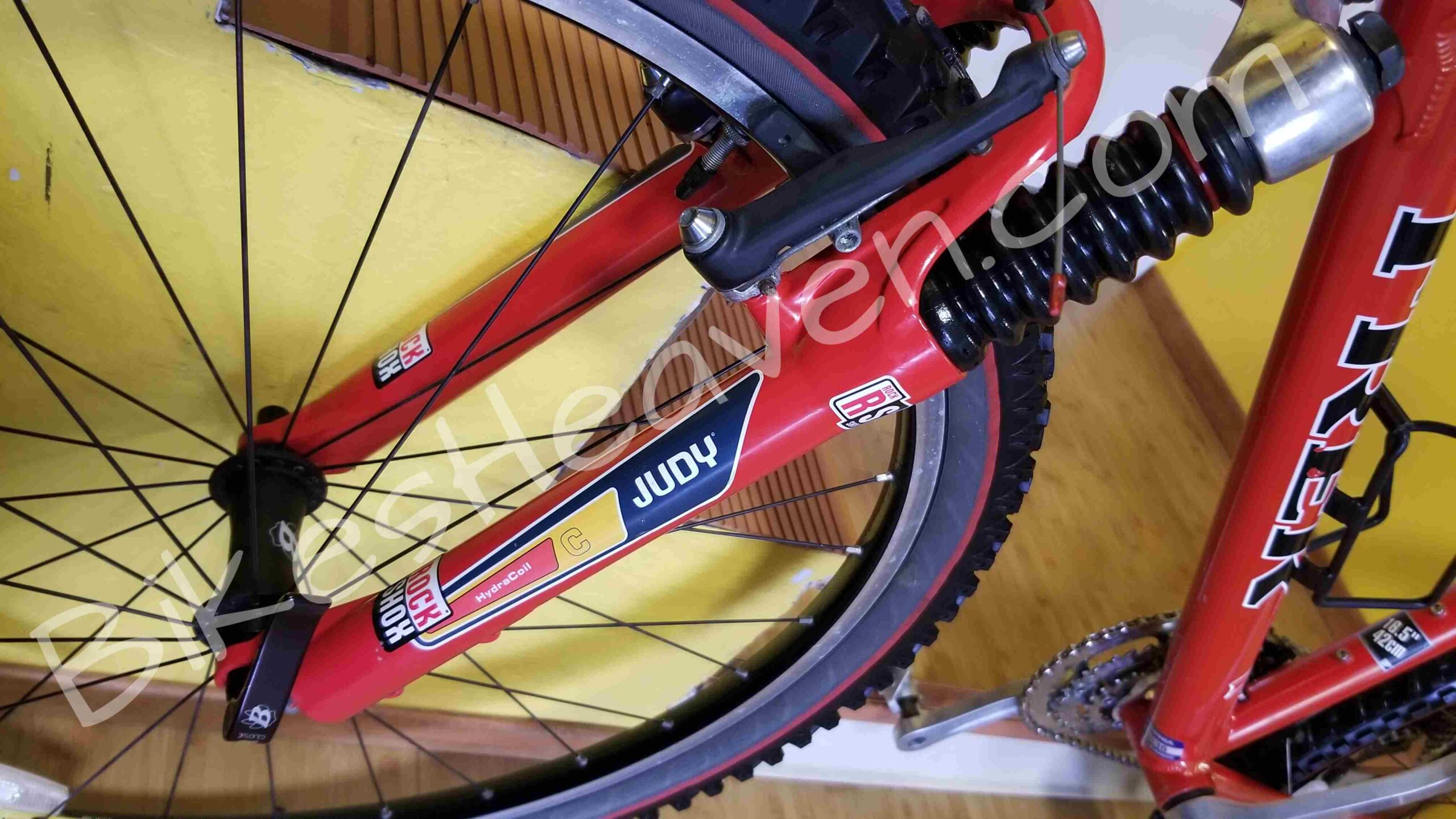

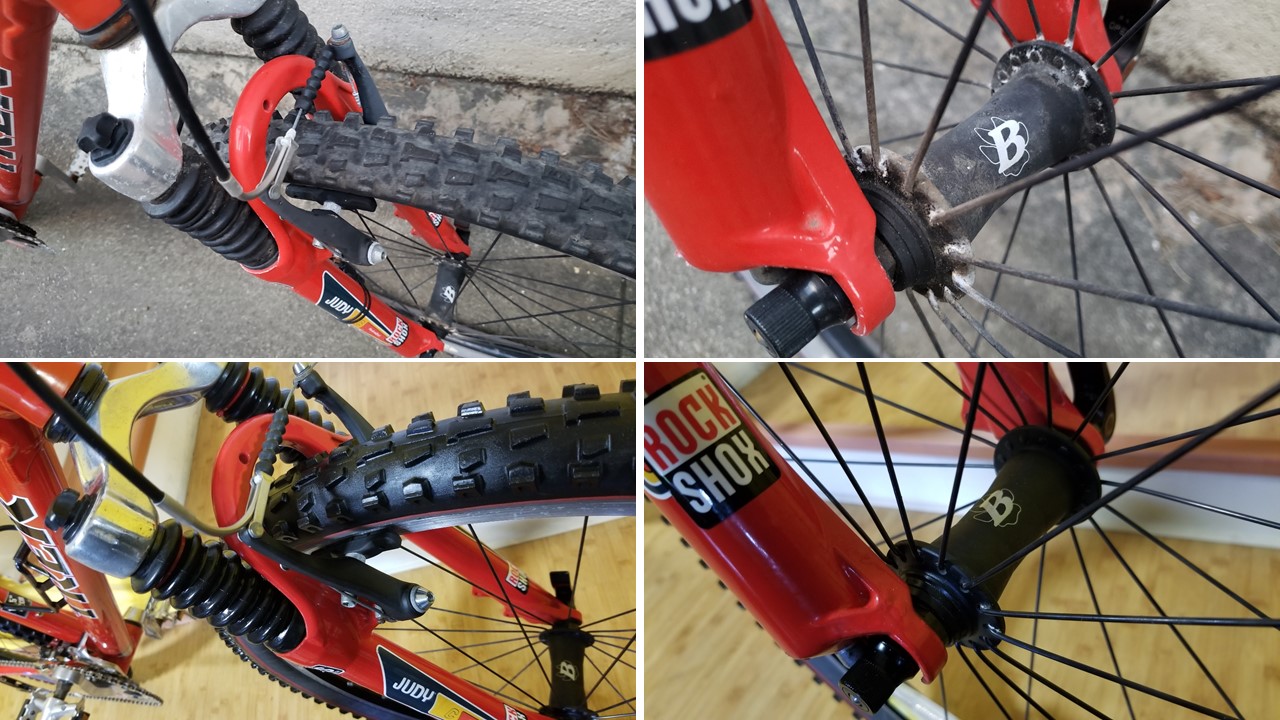

- Fork: Rock Shox Judy C, Aluminum/magnesium, triple-clamp crown, 3.15″ travel

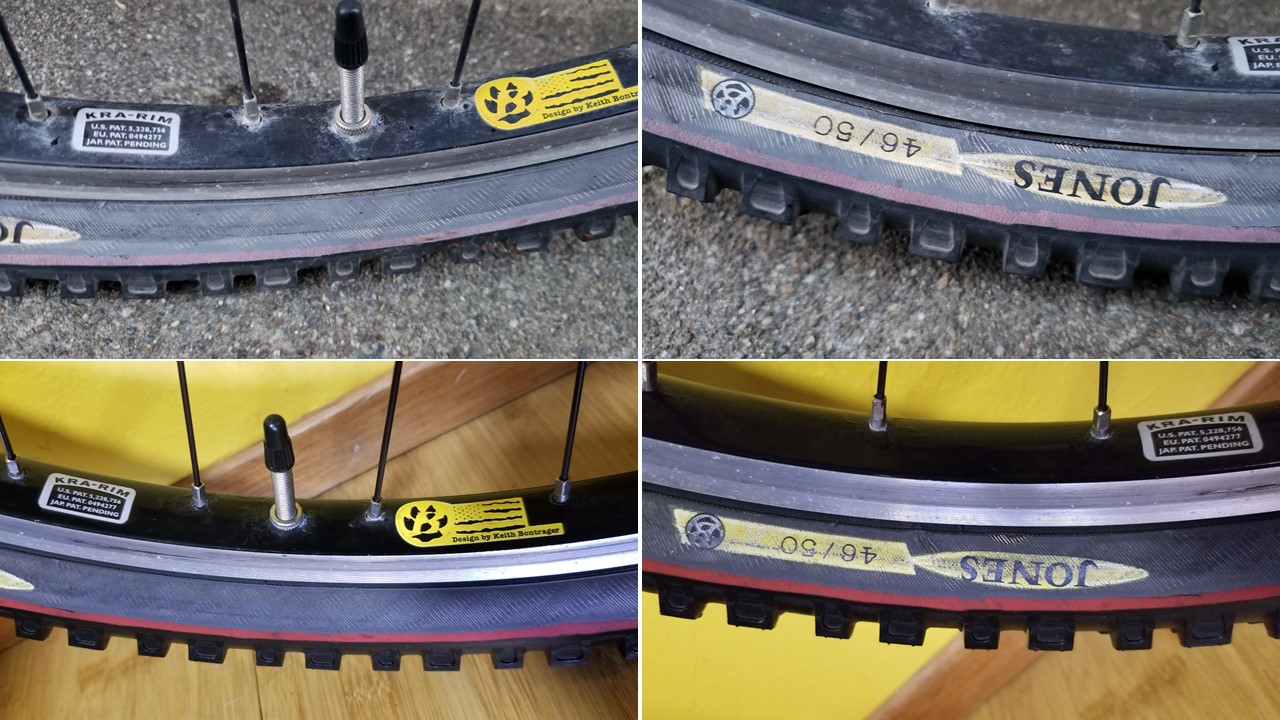

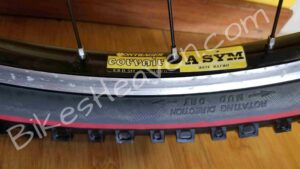

- Wheels: 26″ Bontrager Comp, Bontrager Corvair rims, DT stainless spokes 1.8mm straight gauge, brass nipples
- Tires: Bontrager Jones all-terrain 26×2.10″ (front) and 26×1.90″ (rear)

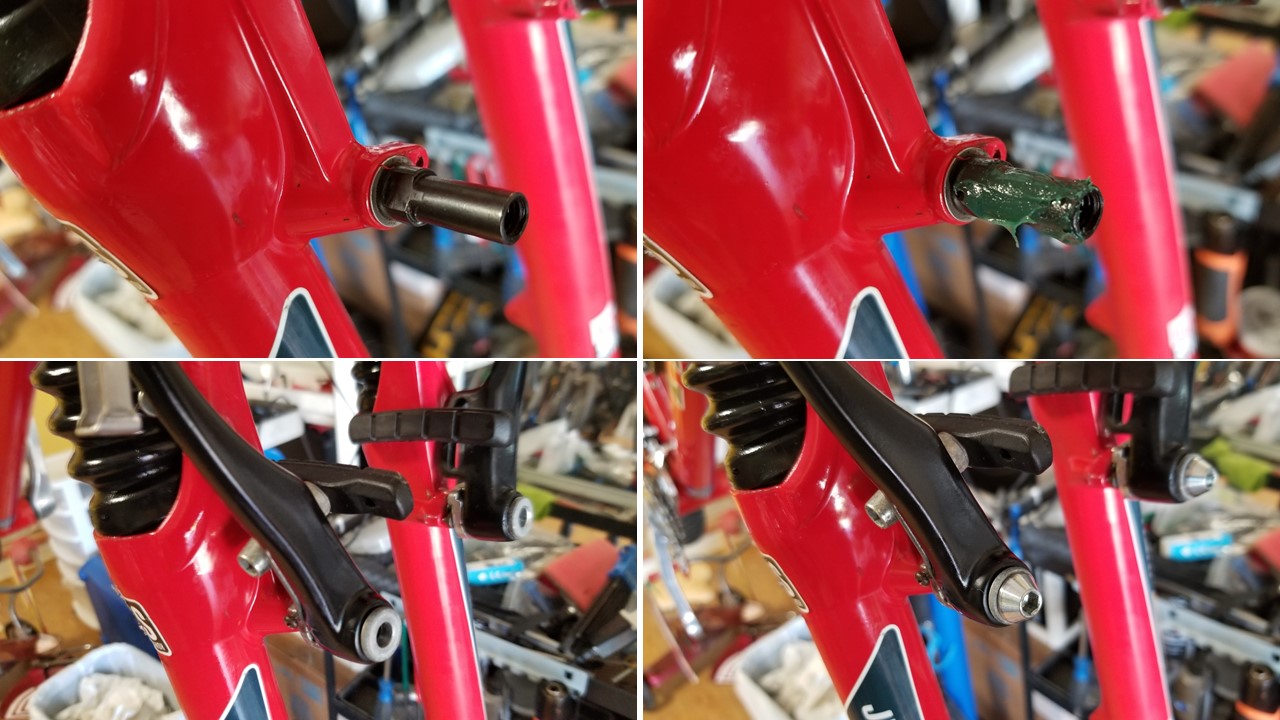

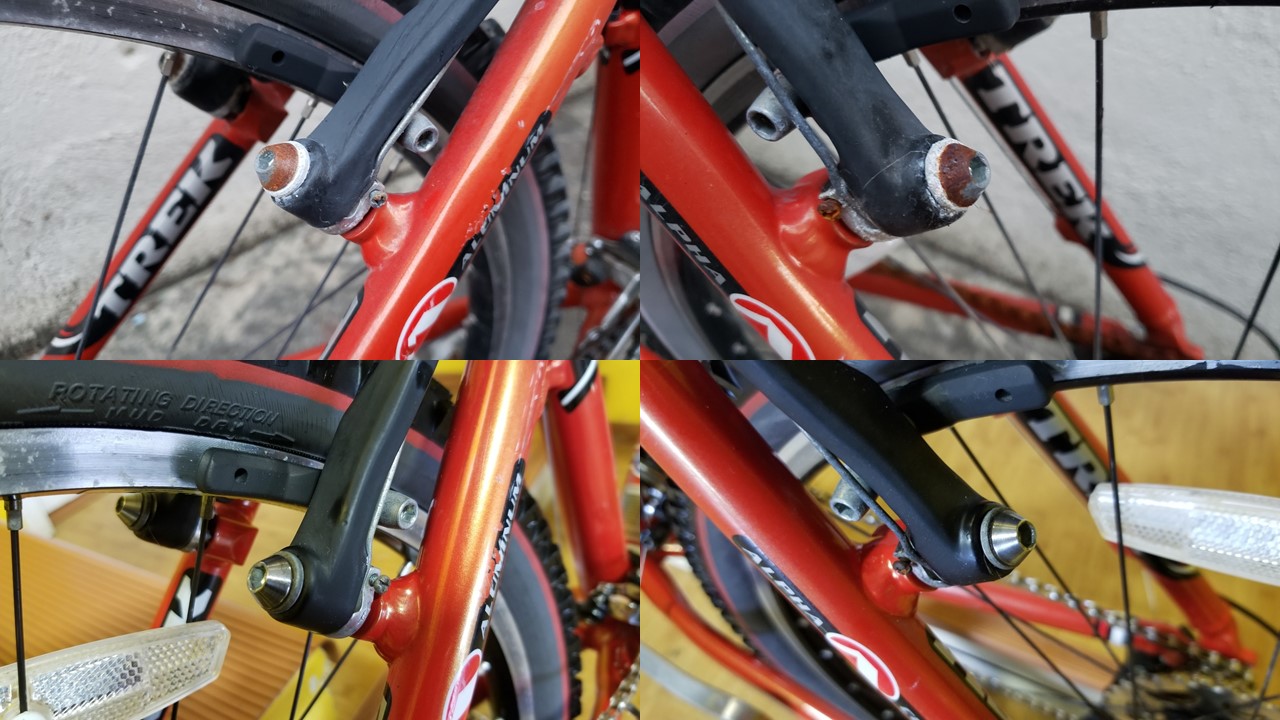

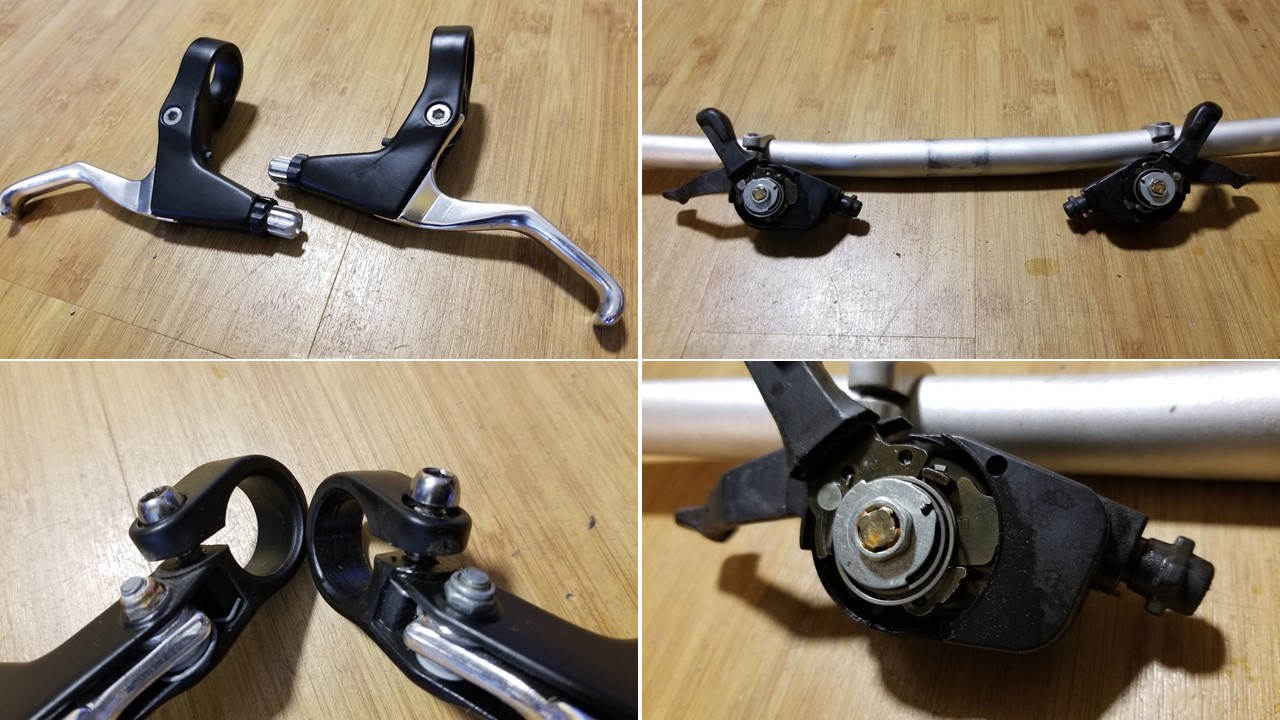

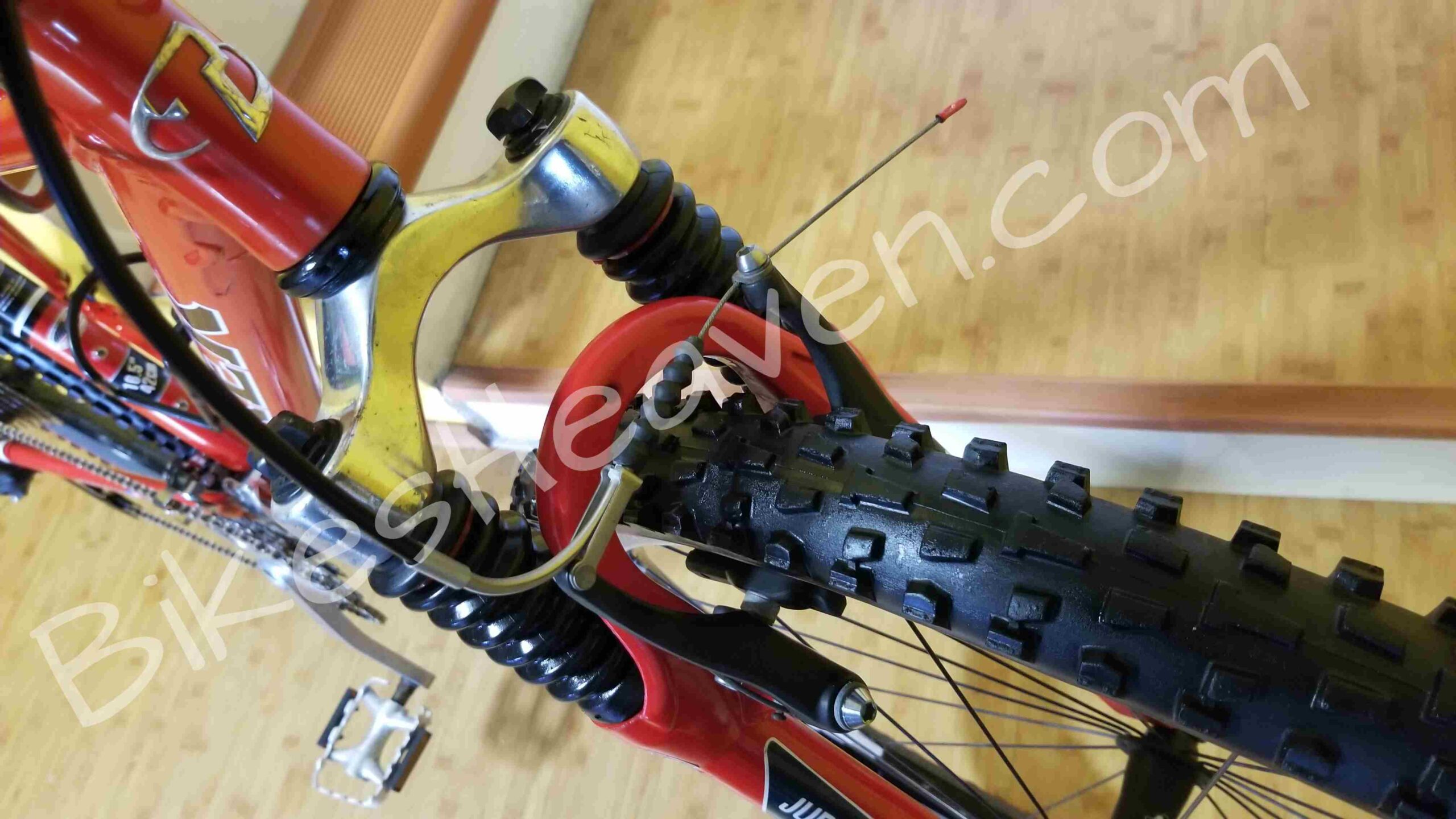

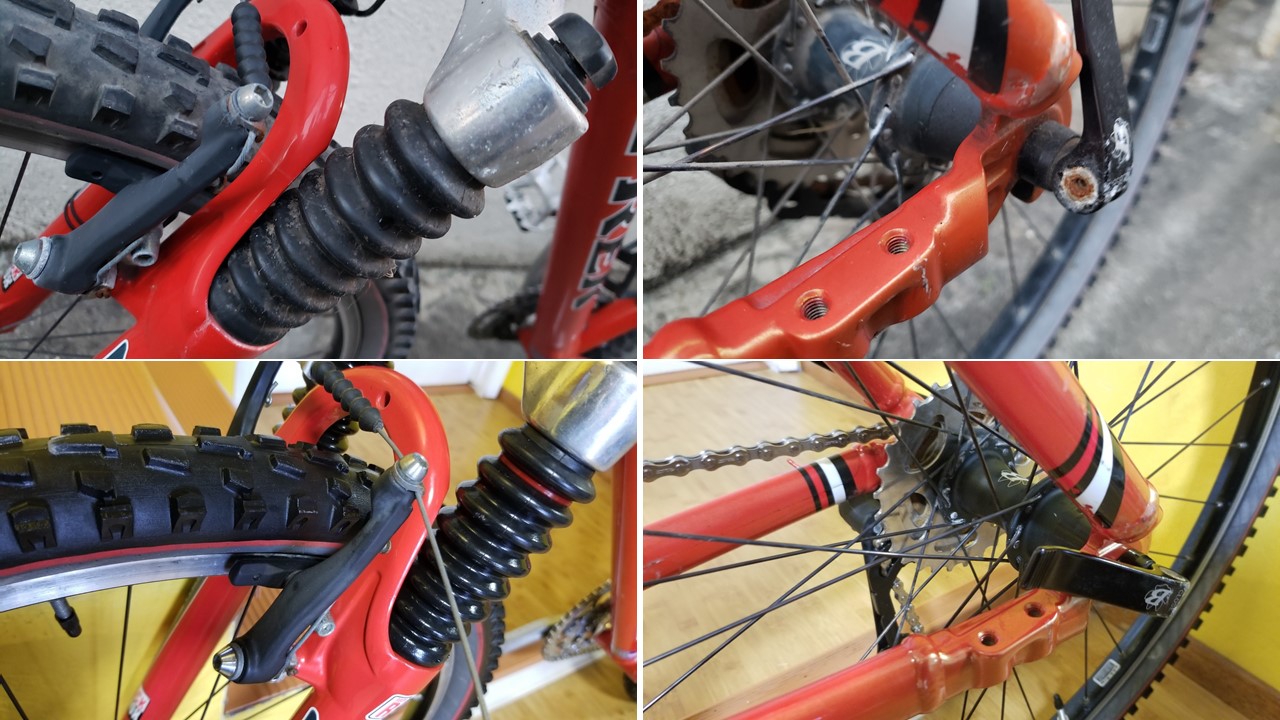

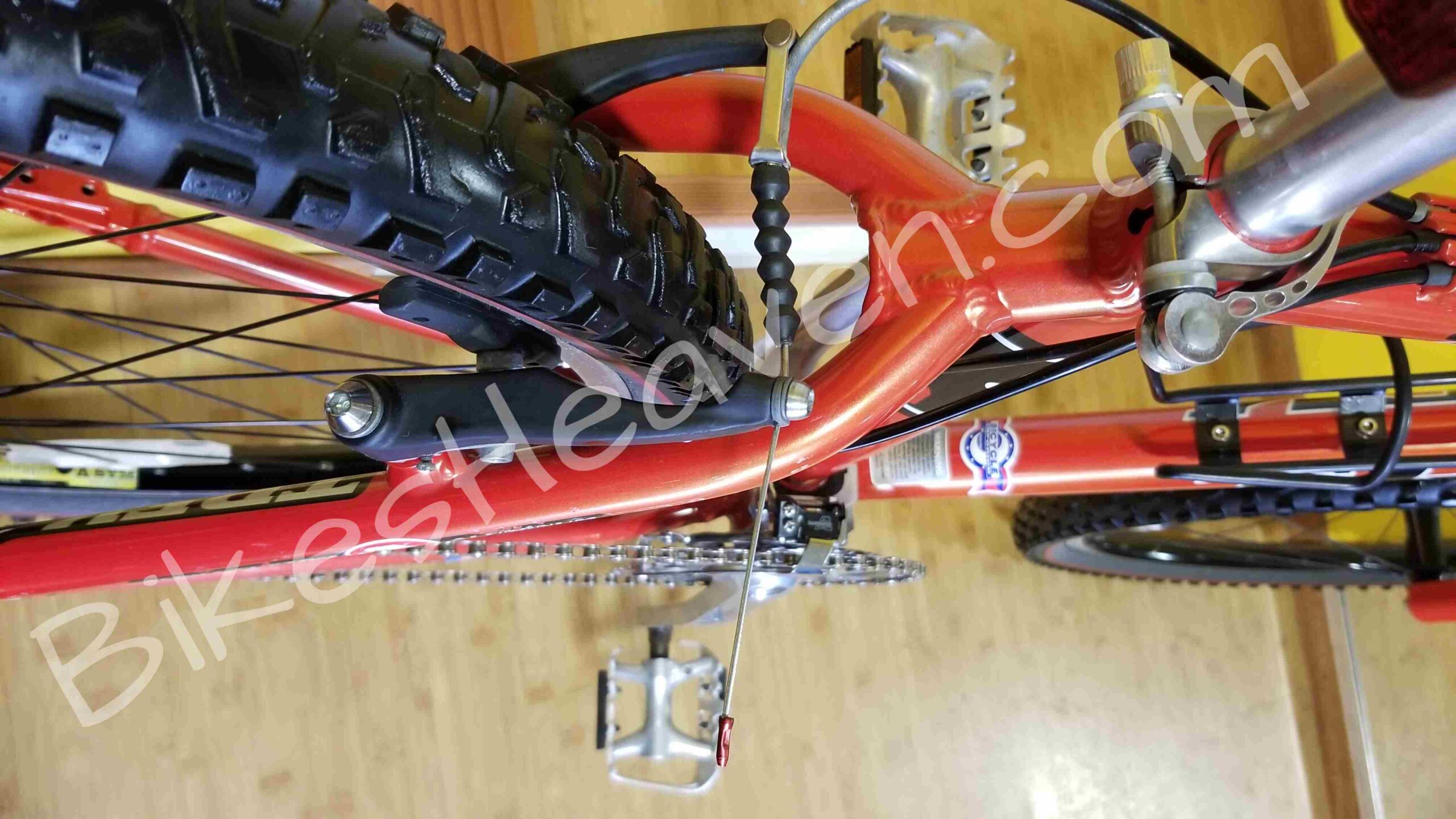

- Brakeset: Lee Chi TX22 brakes, Lee Chi LV77E levers

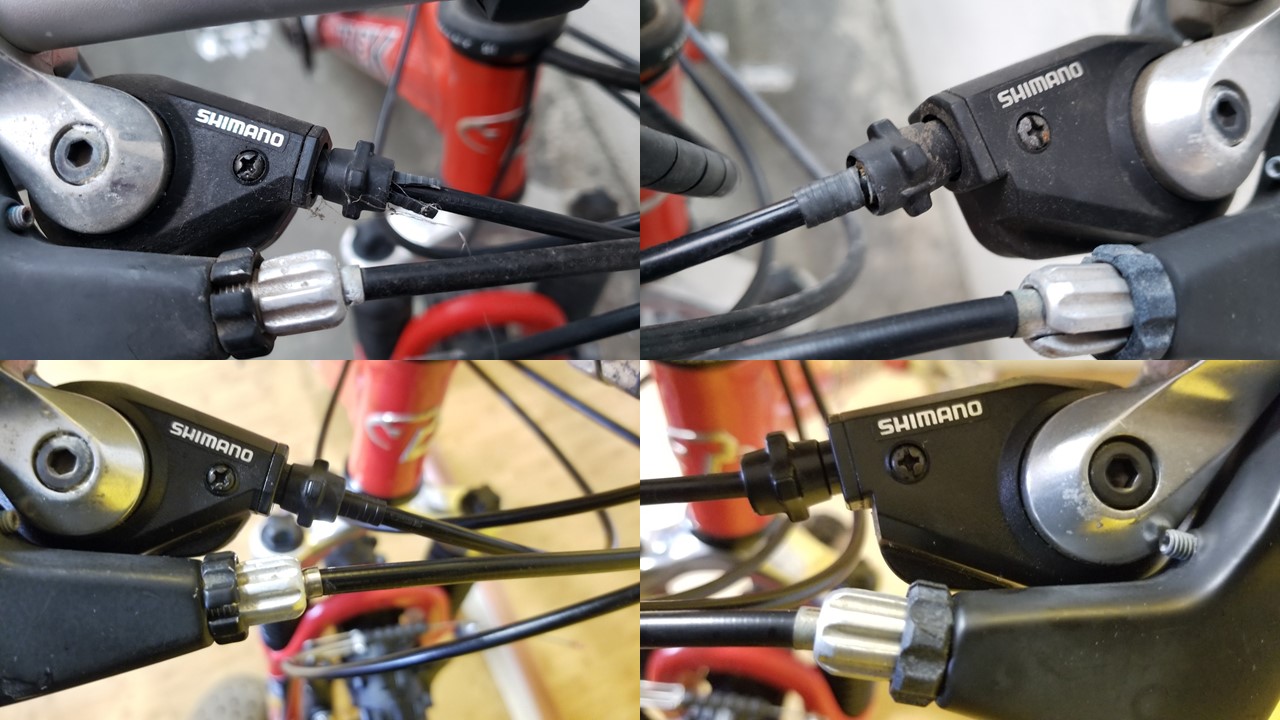

- Shift Levers: Shimano STX-RC RapidFire SL

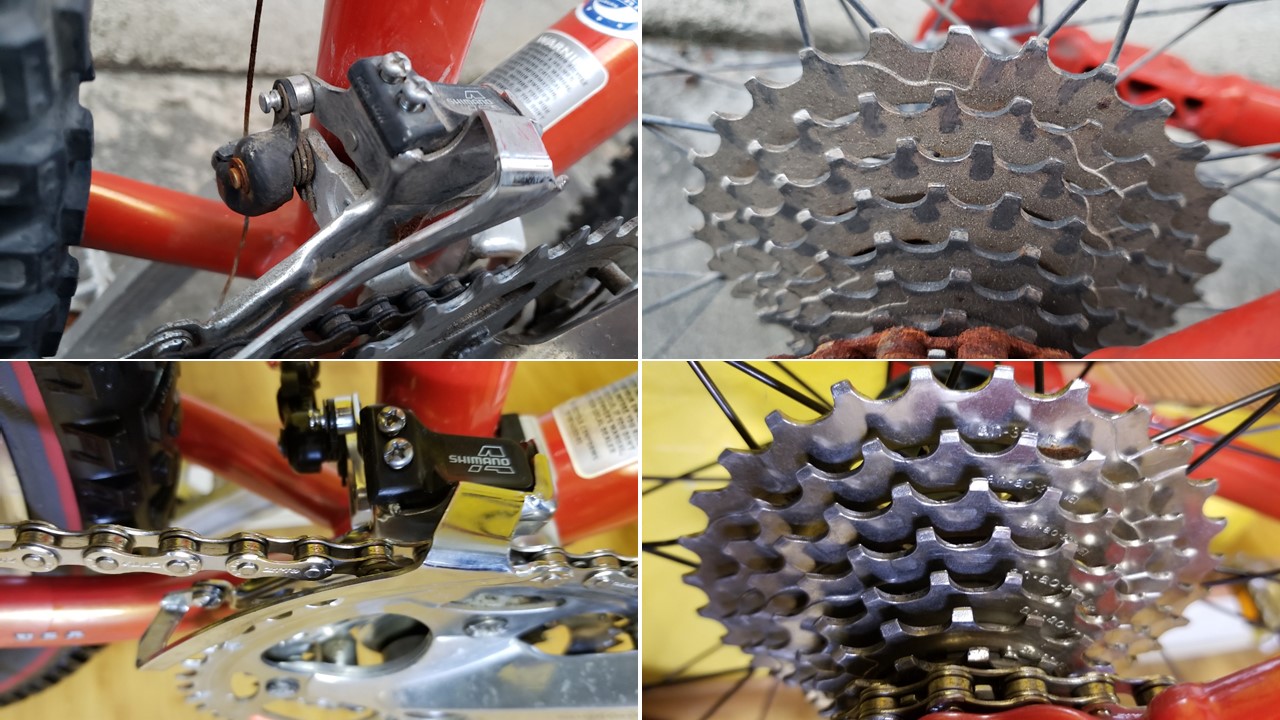

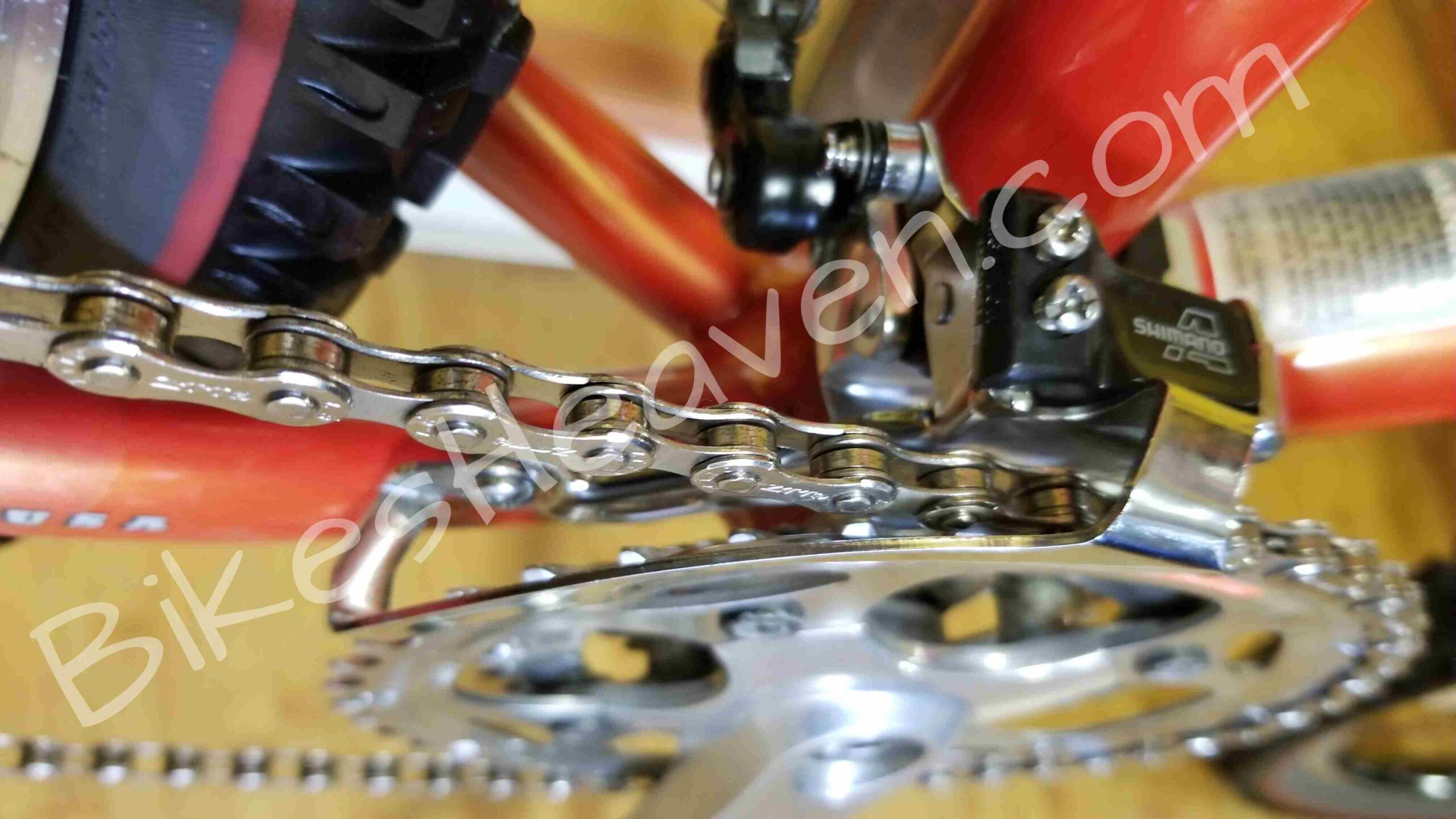

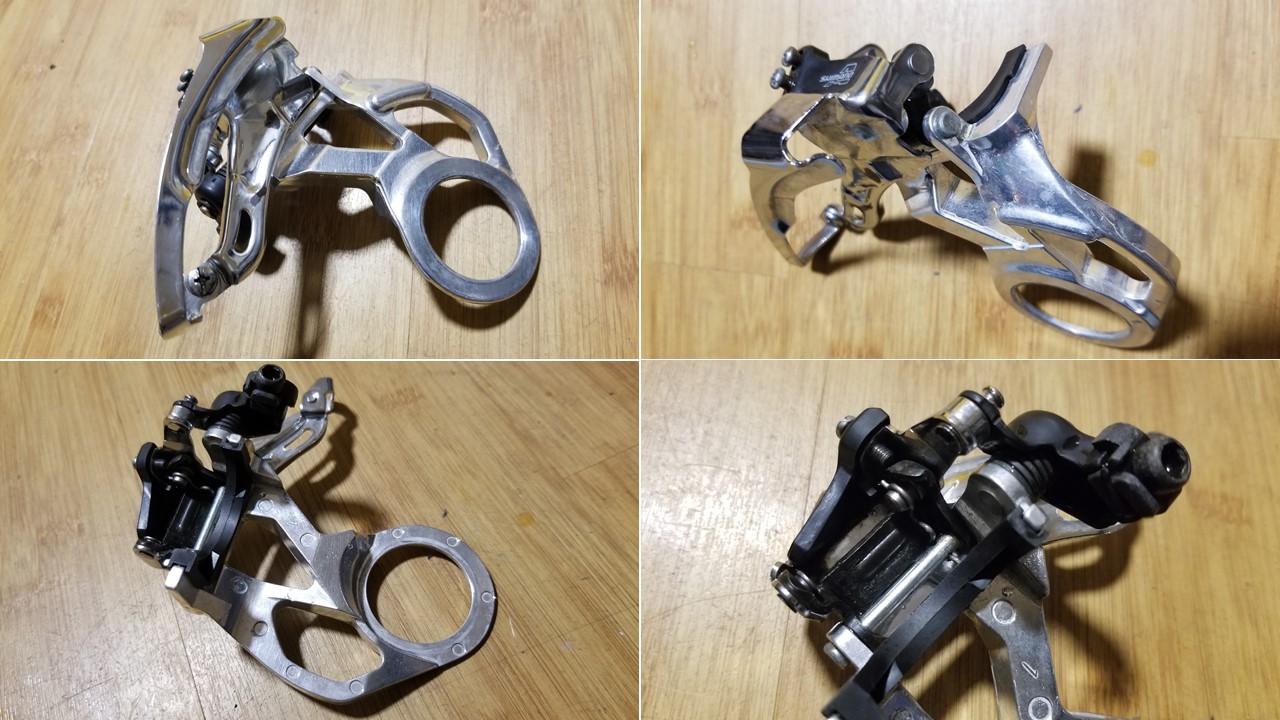

- Front Derailleur: Shimano Alivio, top-pull/bottom bracket mount

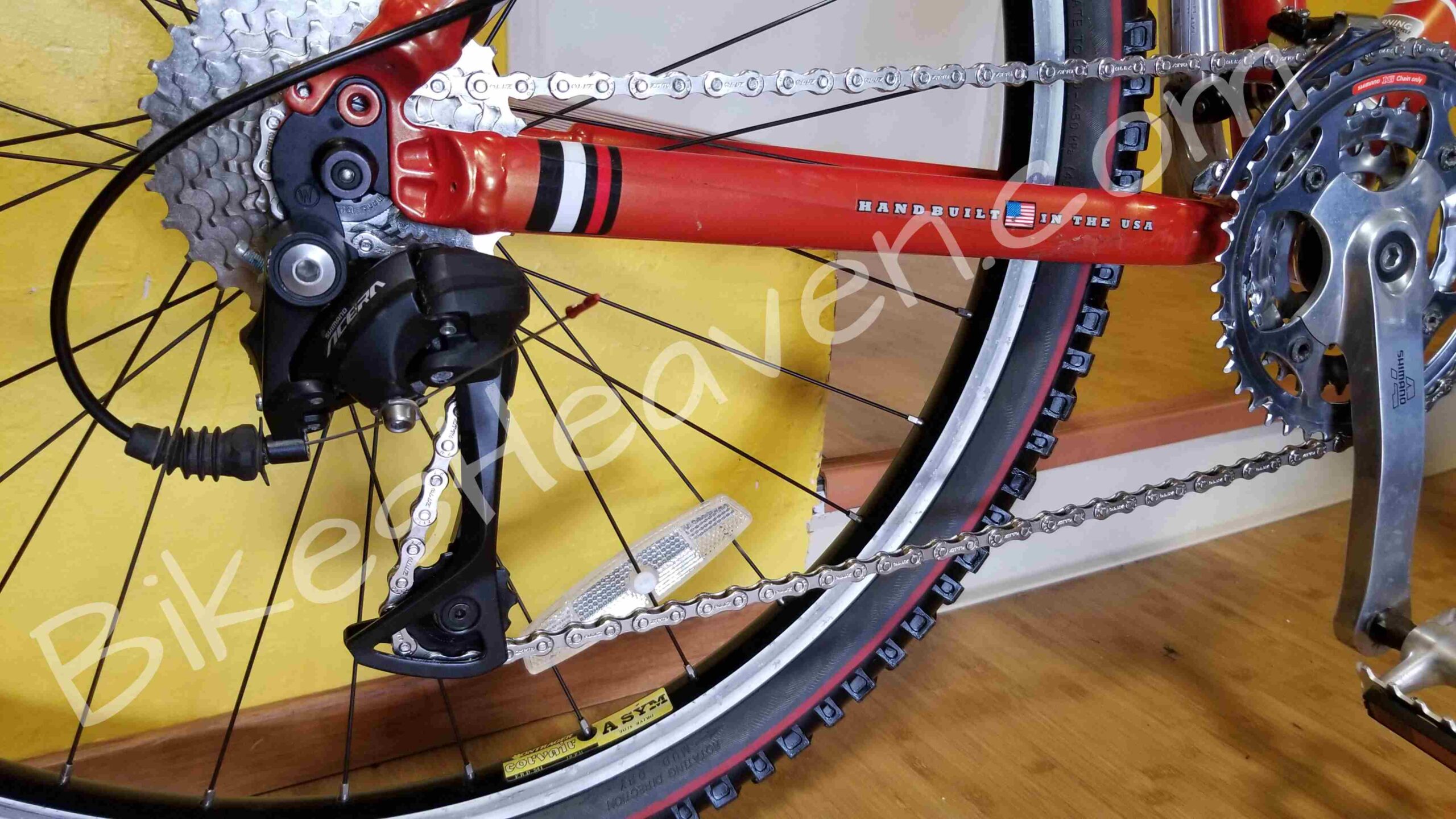

- Rear Derailleur: Shimano Deore LX

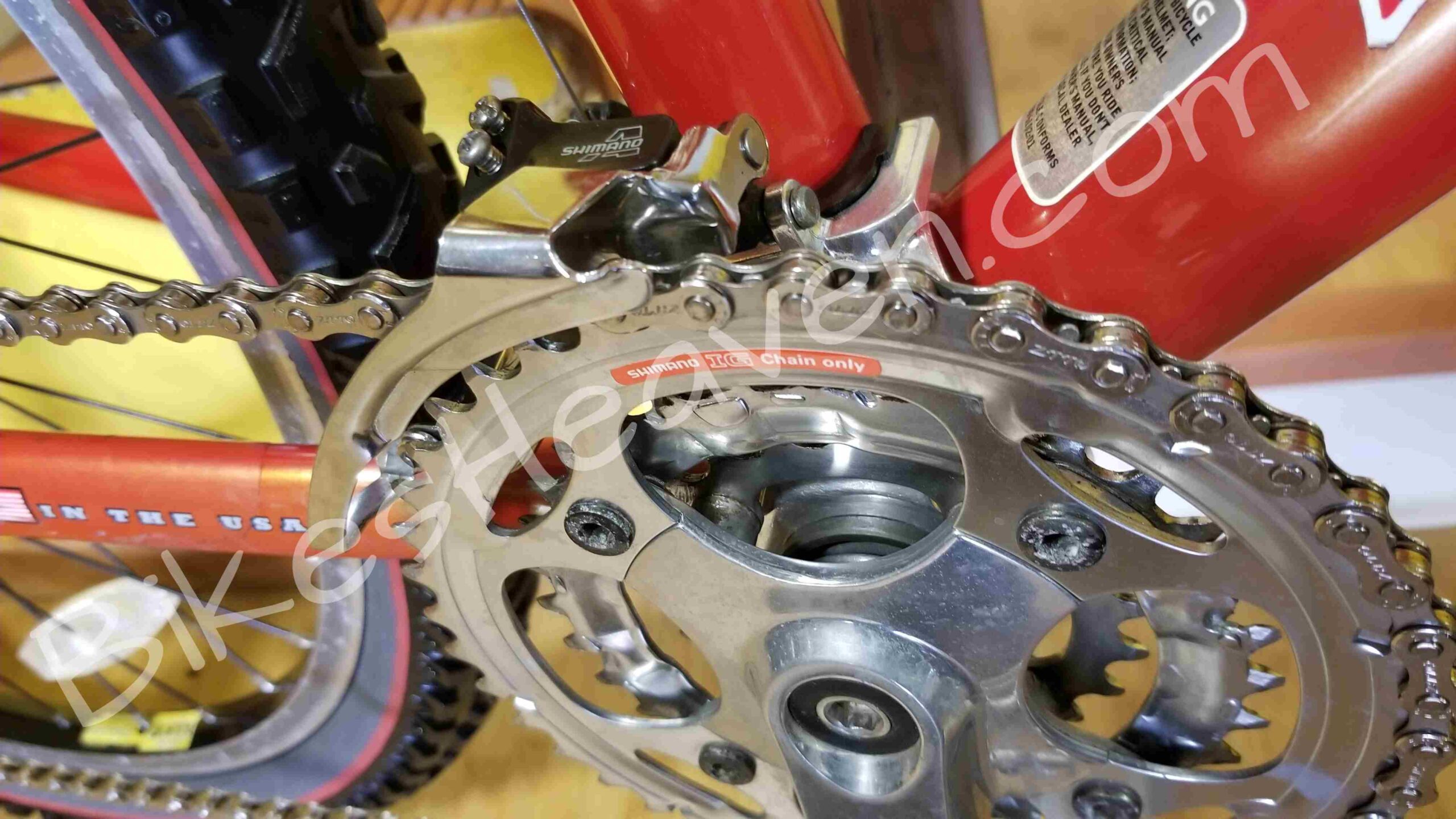

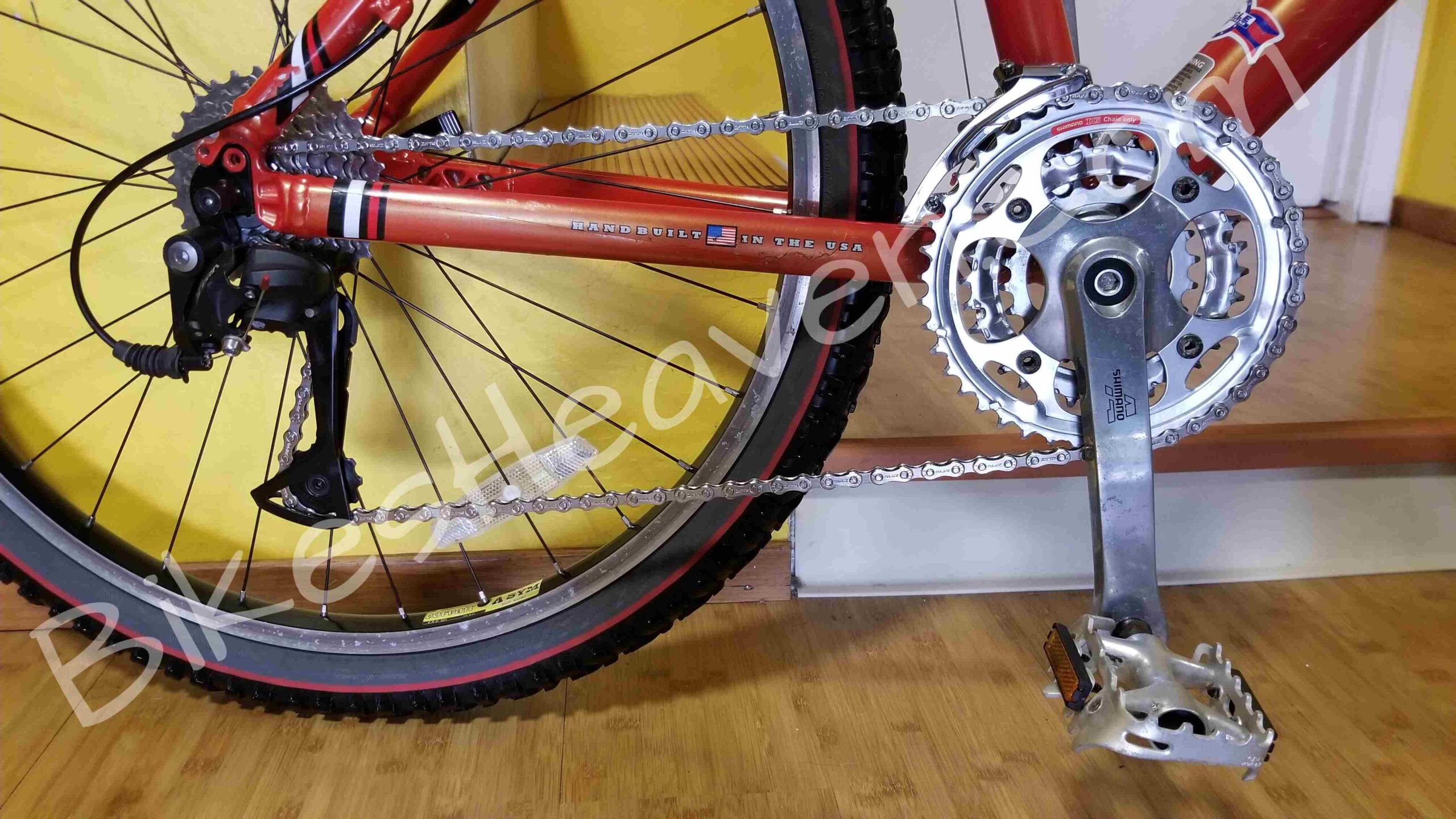

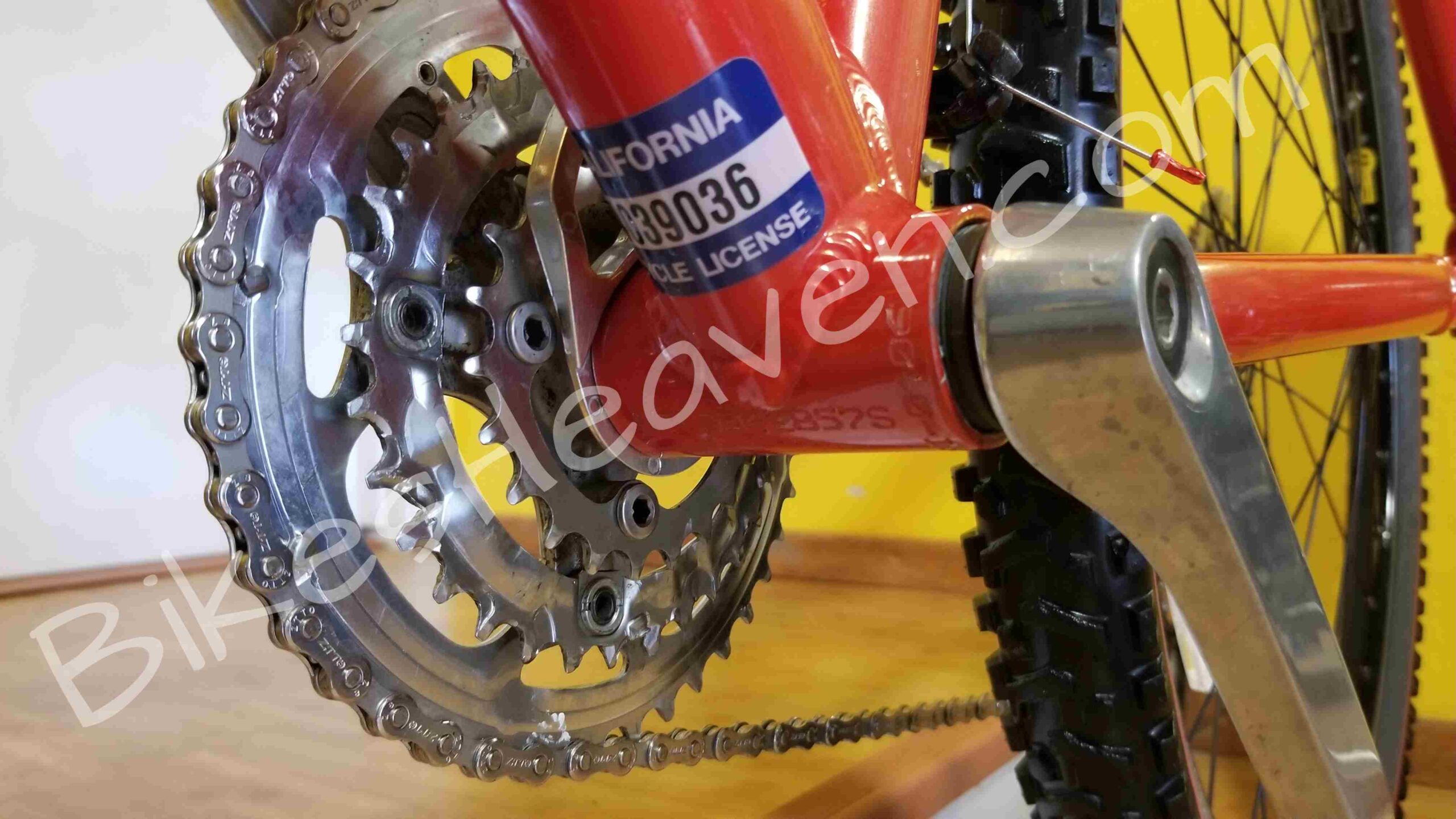

- Crankset Shimano: Alivio, 22/32/42 teeth

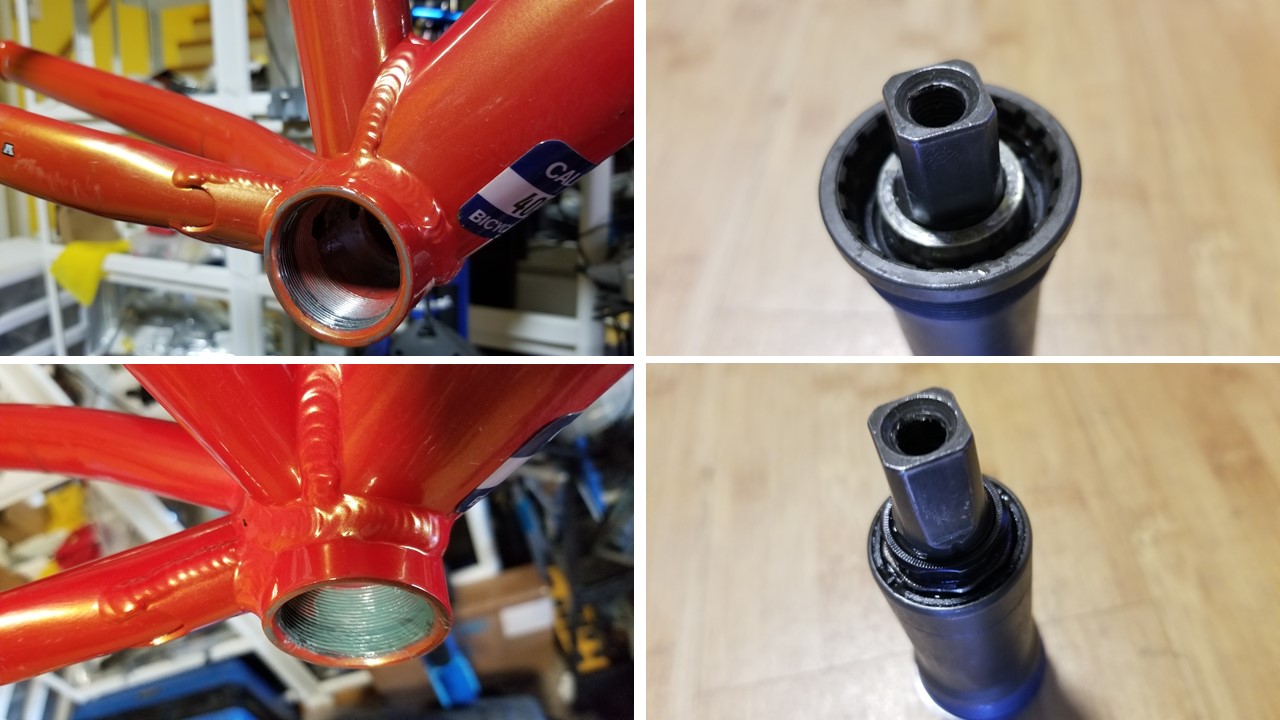

- Bottom Bracket: Shimano BB-LP27E, 113mm spindle, 73mm Shell Width

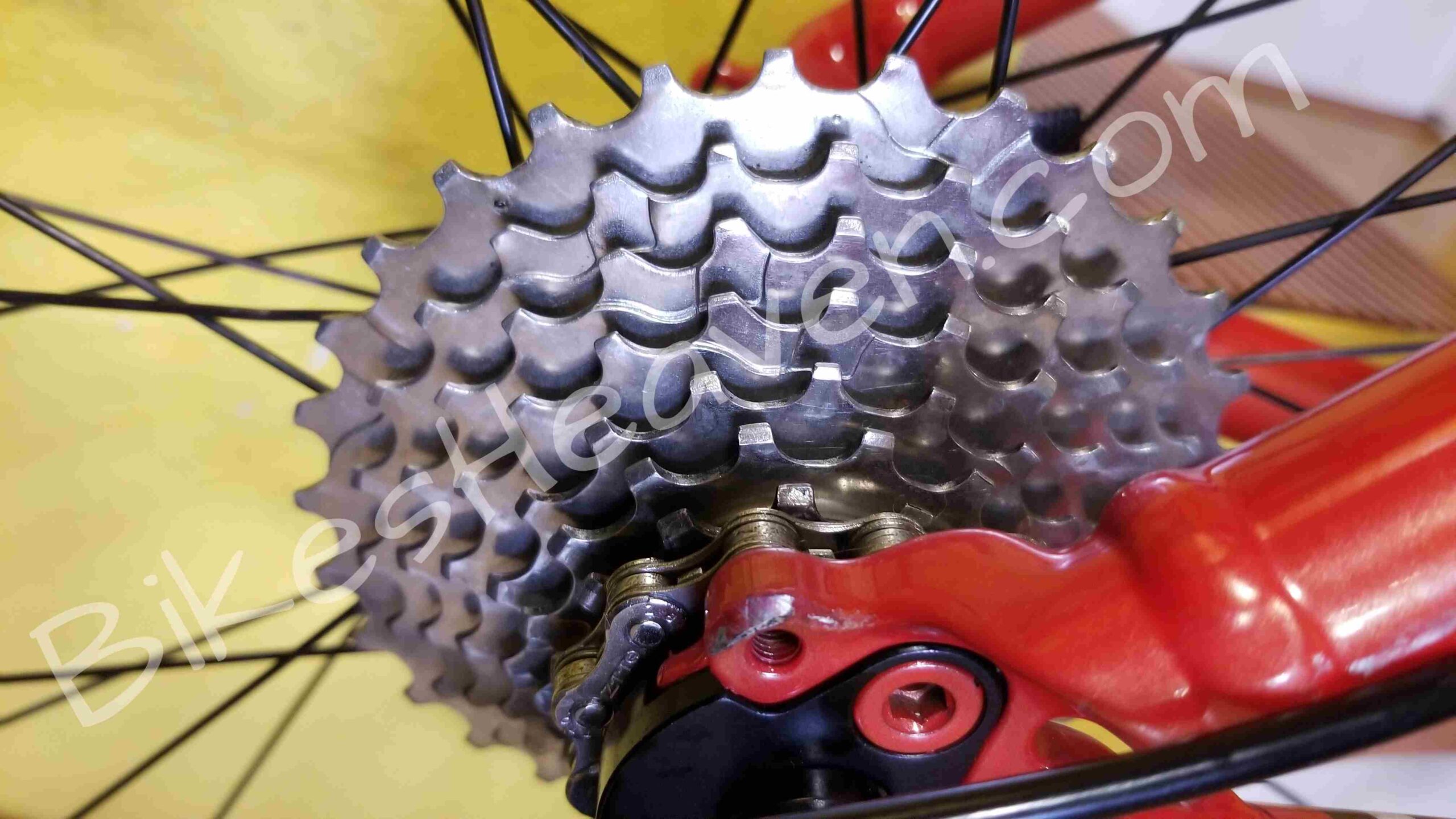

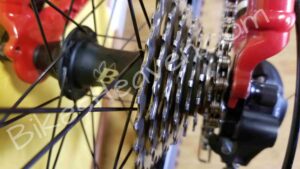

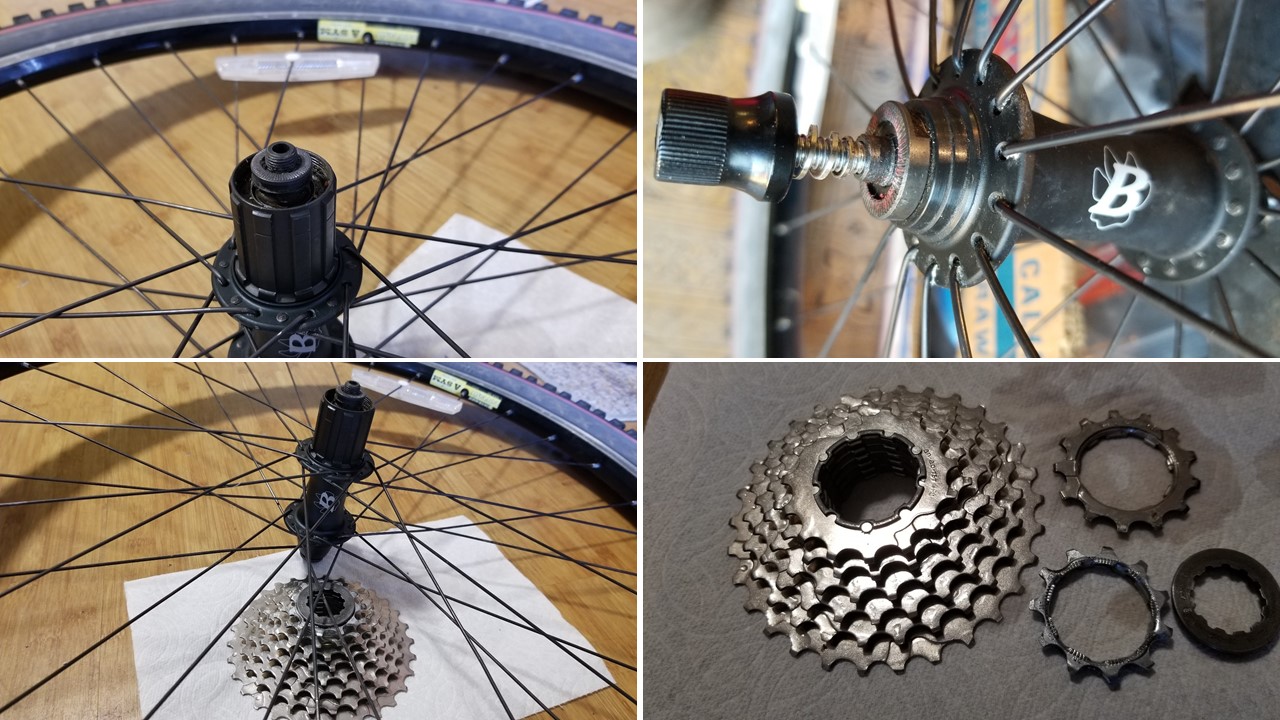

- Cassette: 8-speed, 11-30 teeth
- Chain: Shimano CN-HG50, 1/2 x 3/32″
- Seatpost: Kalloy SP-312, 27.2mm diameter

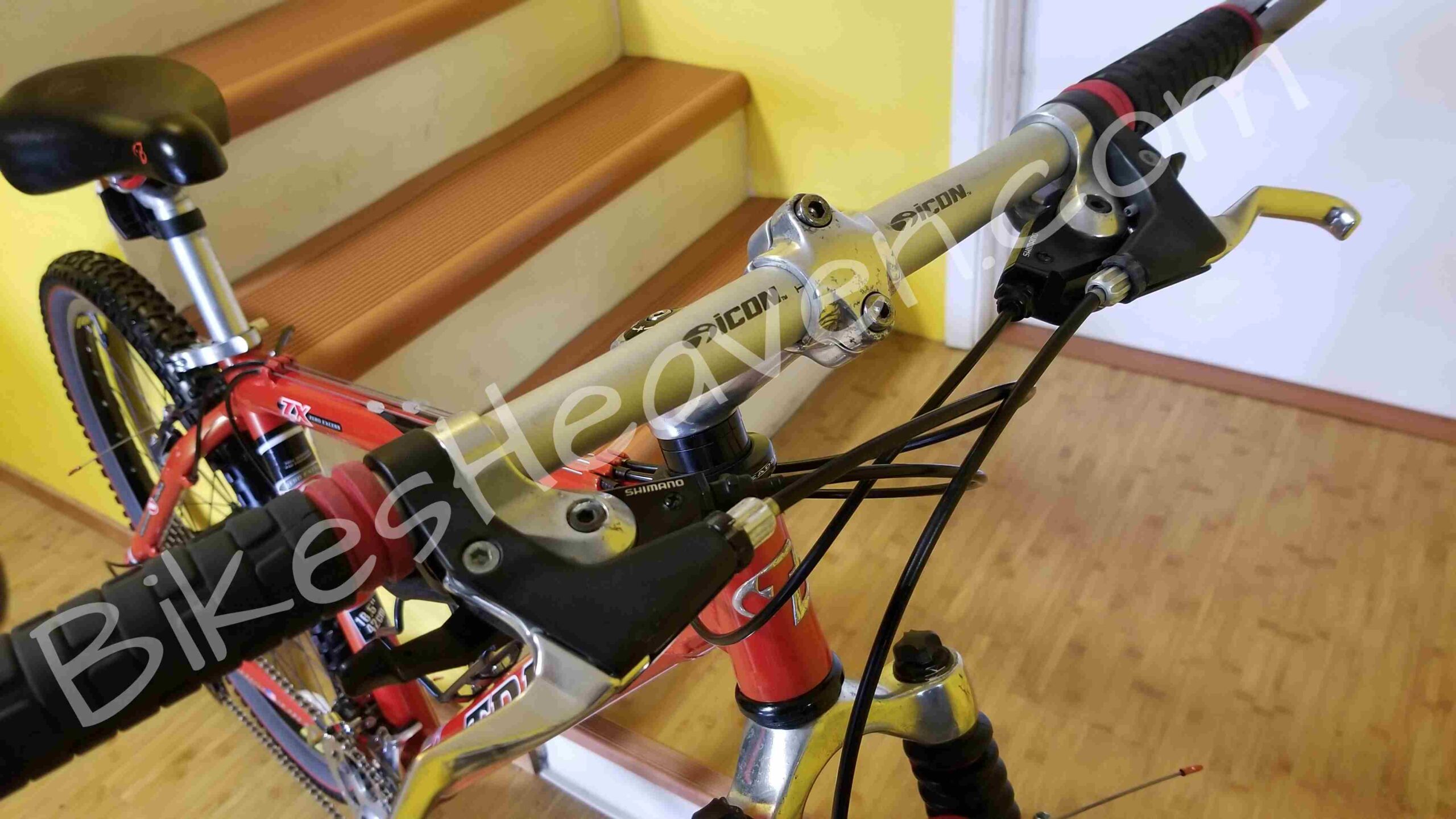

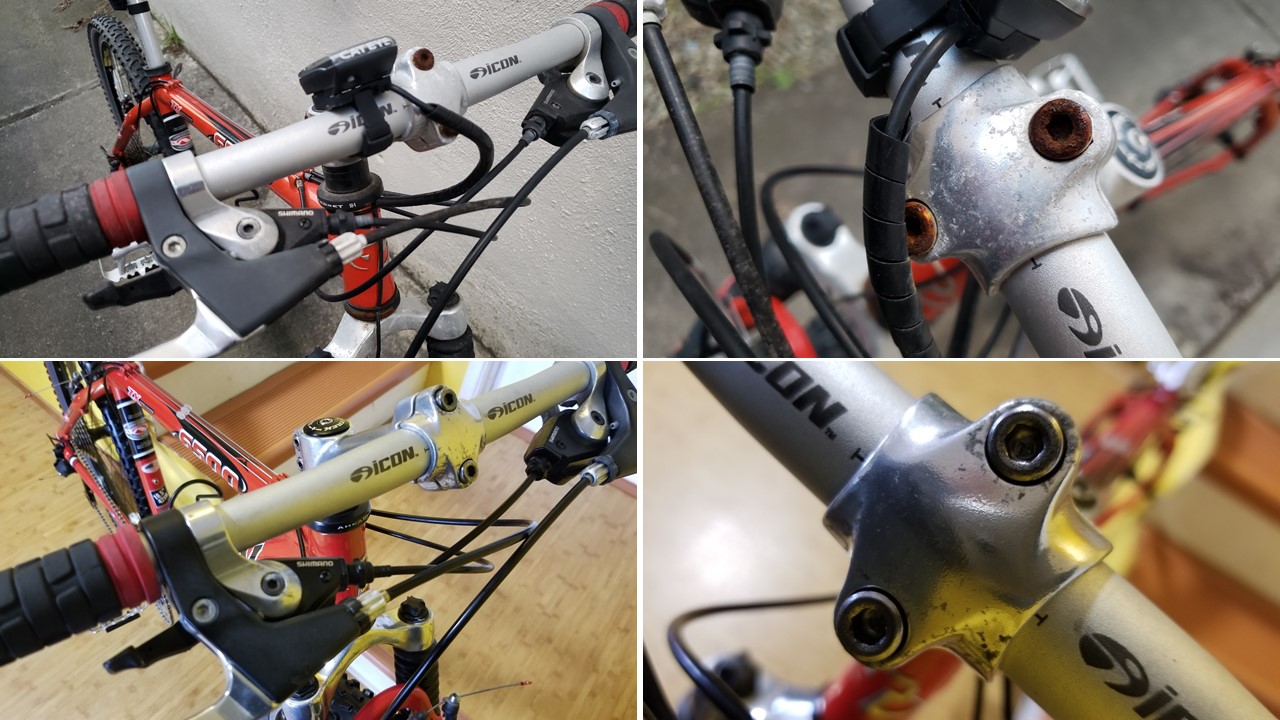

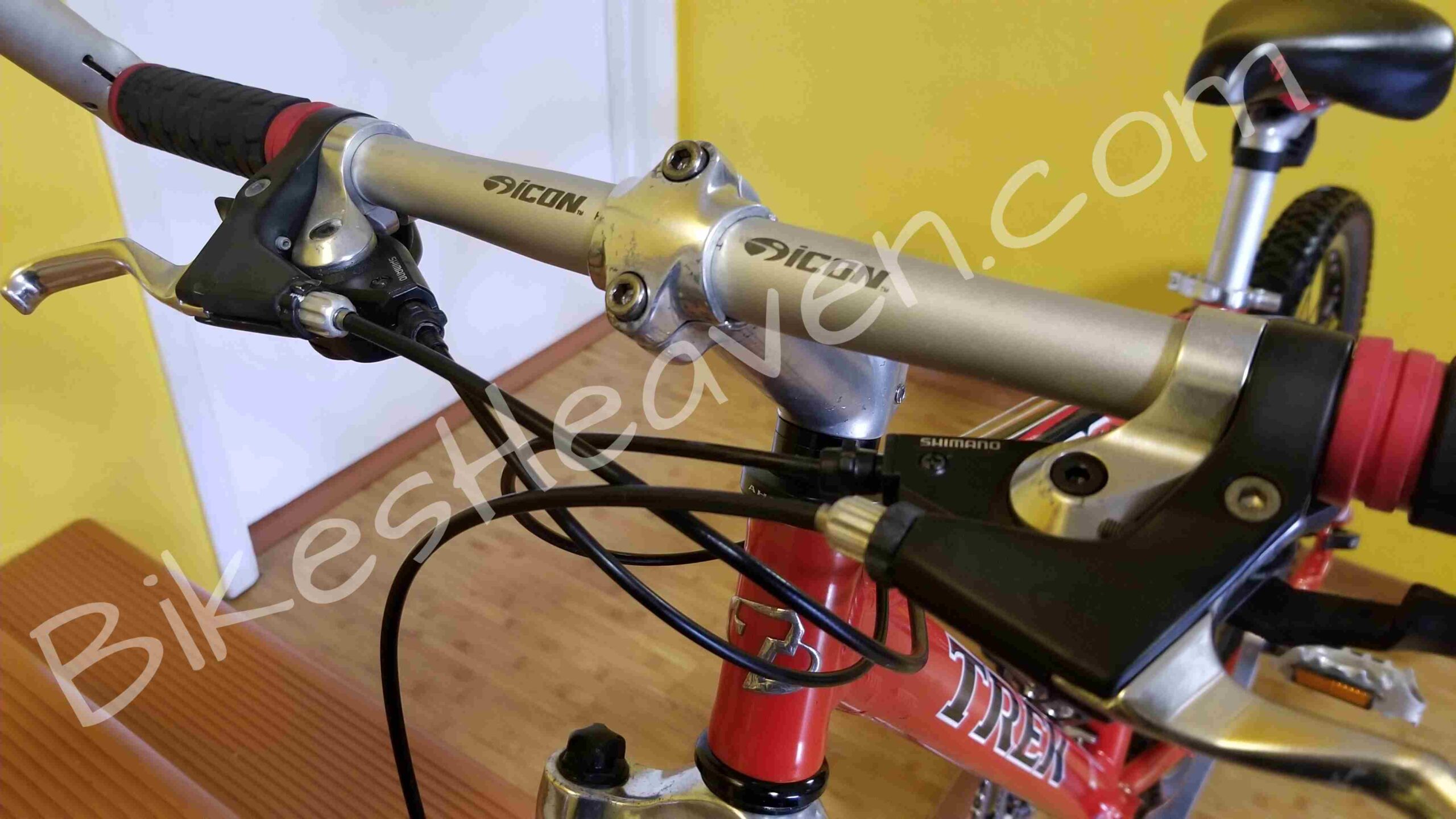

- Handlebars: ICON 6061

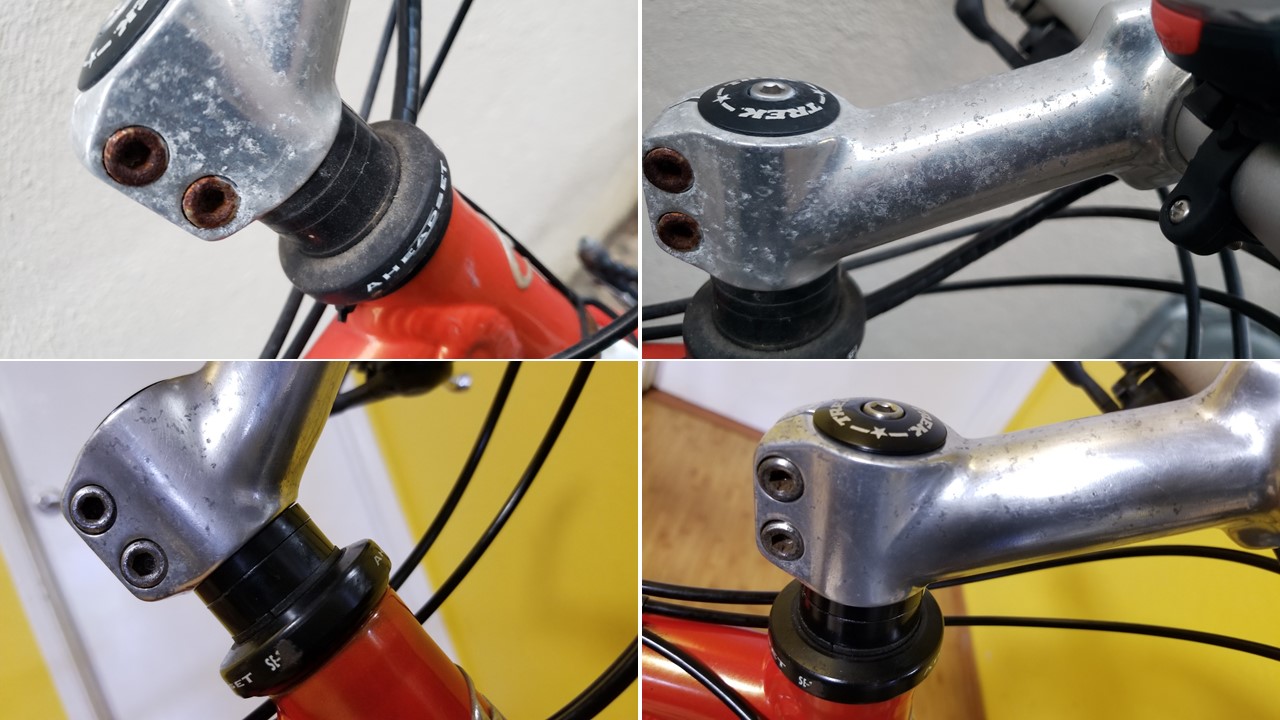

- Handlebar Stem: Alloy Ahead

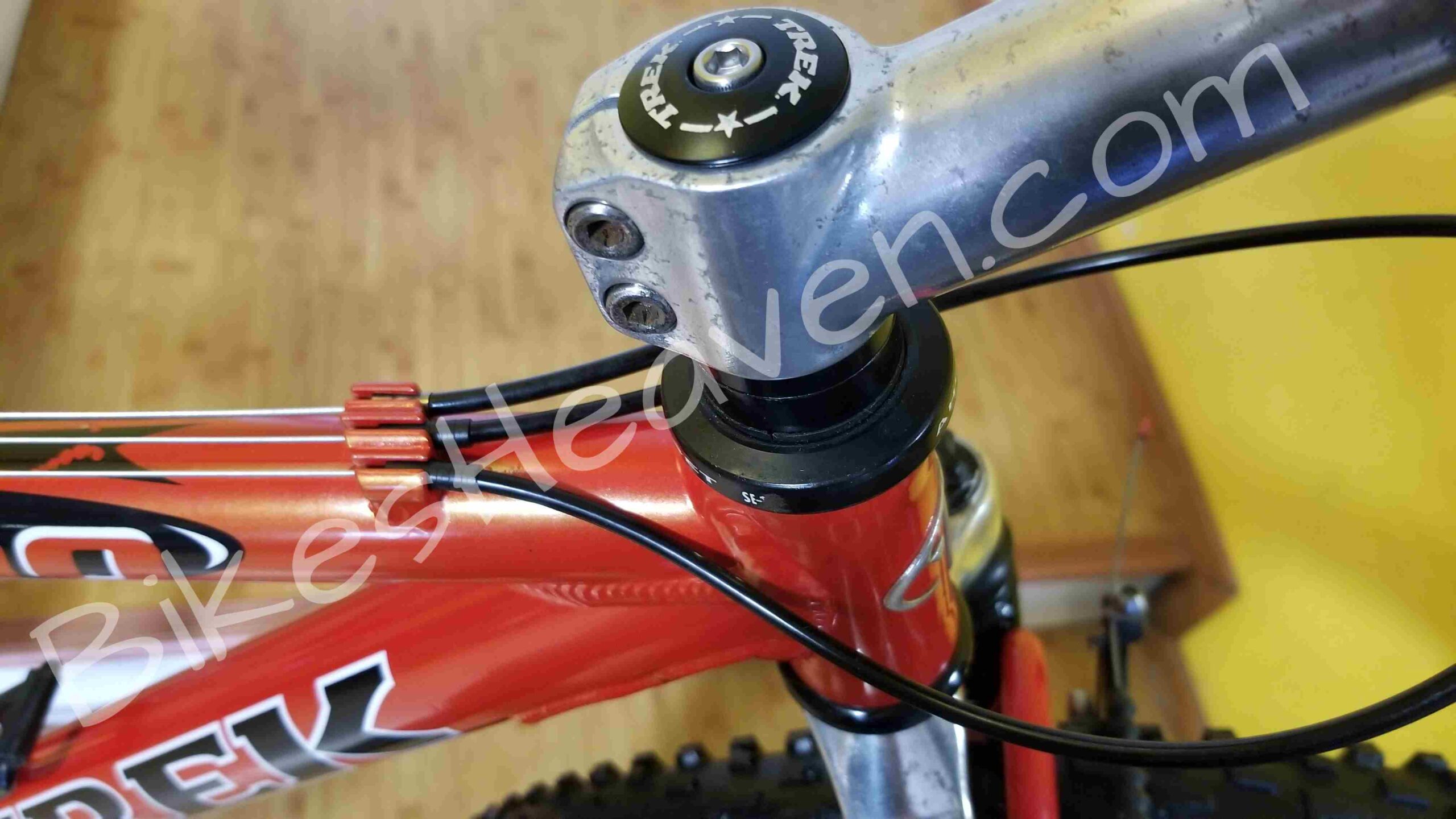

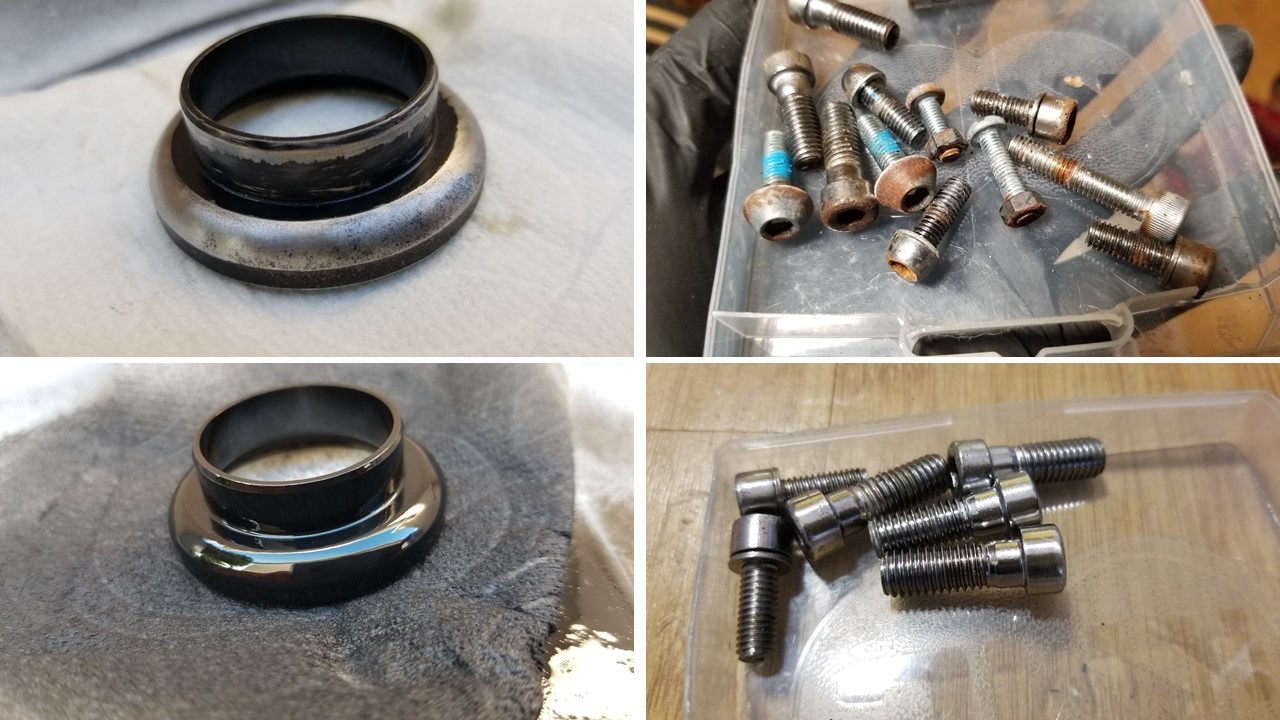

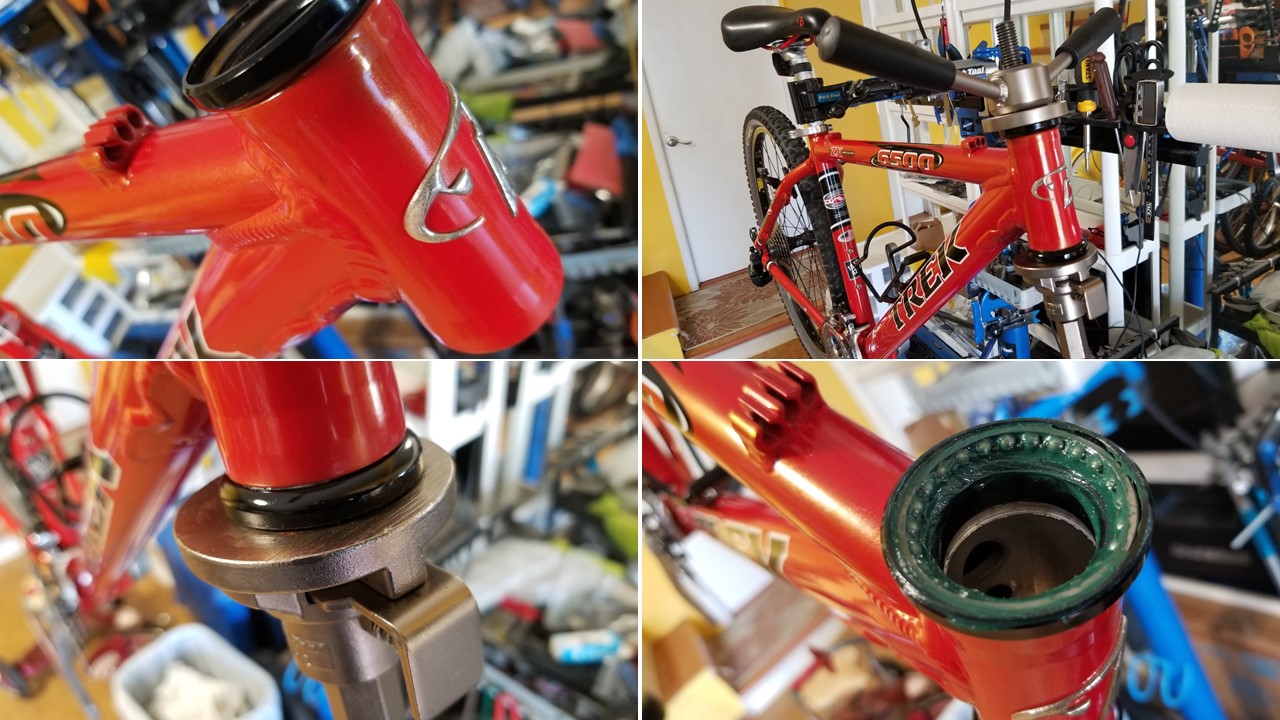

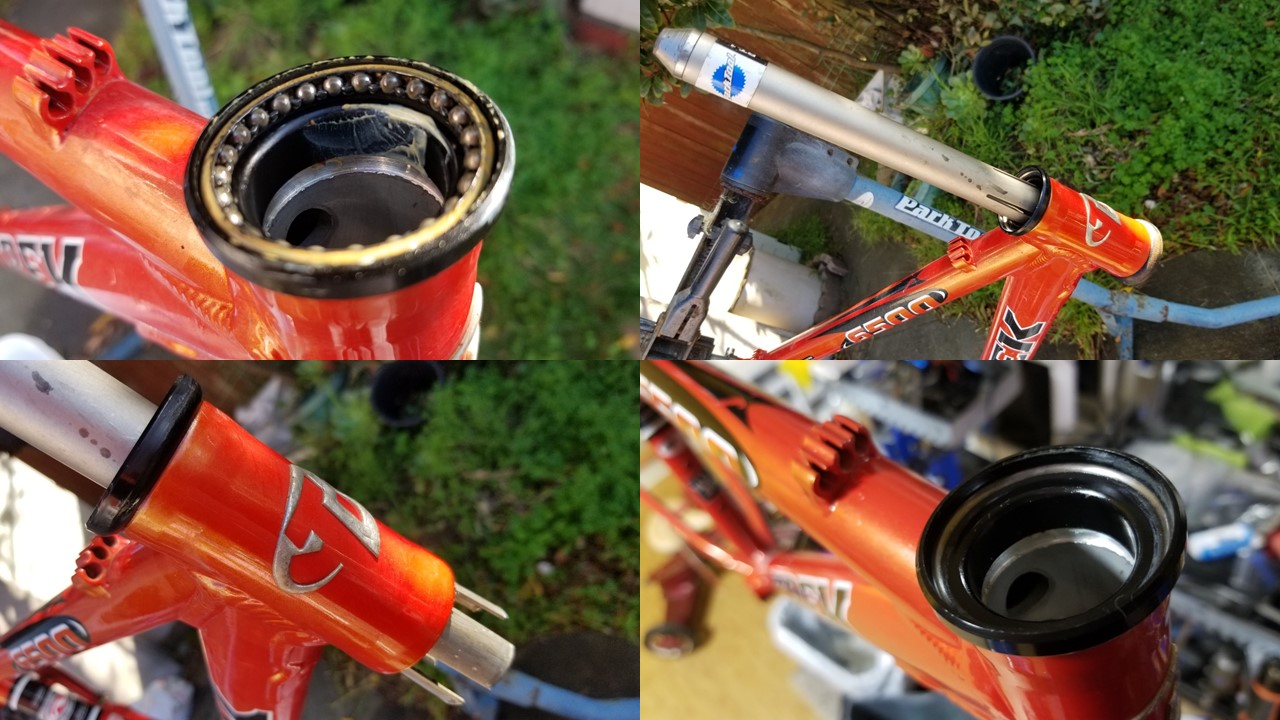

- Headset: 1-1/8″ threadless Aheadset SE-1

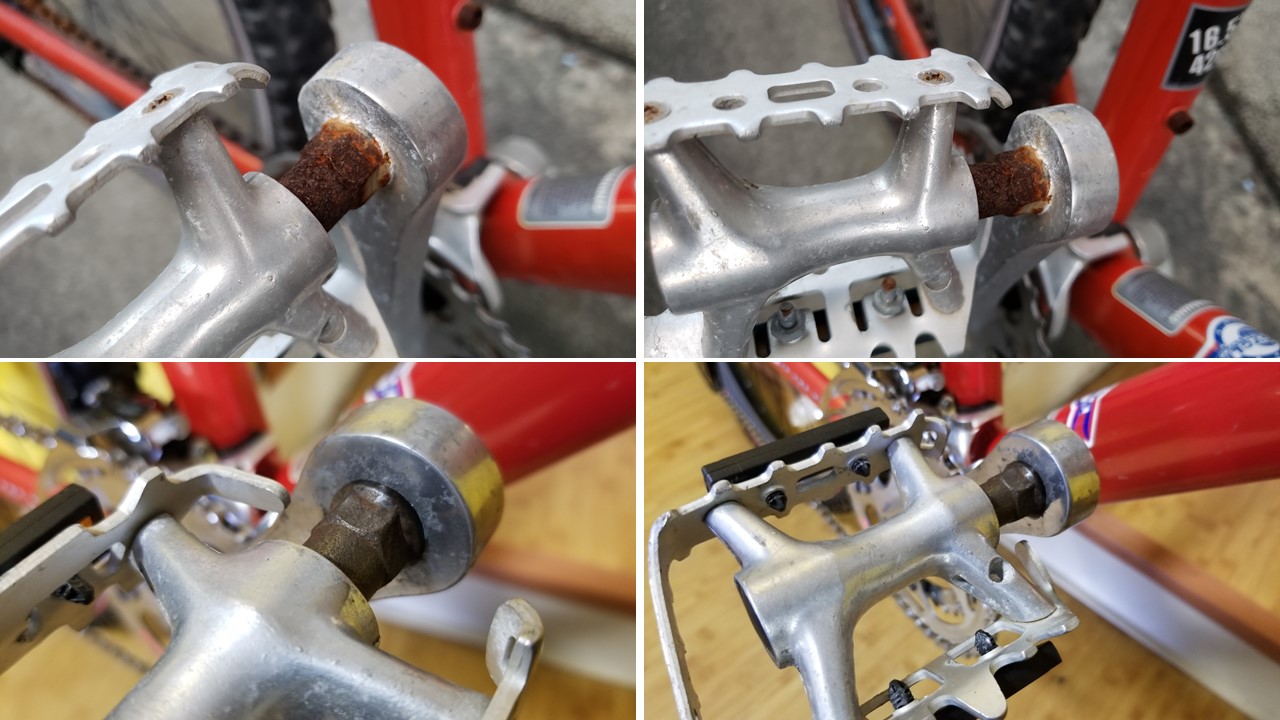

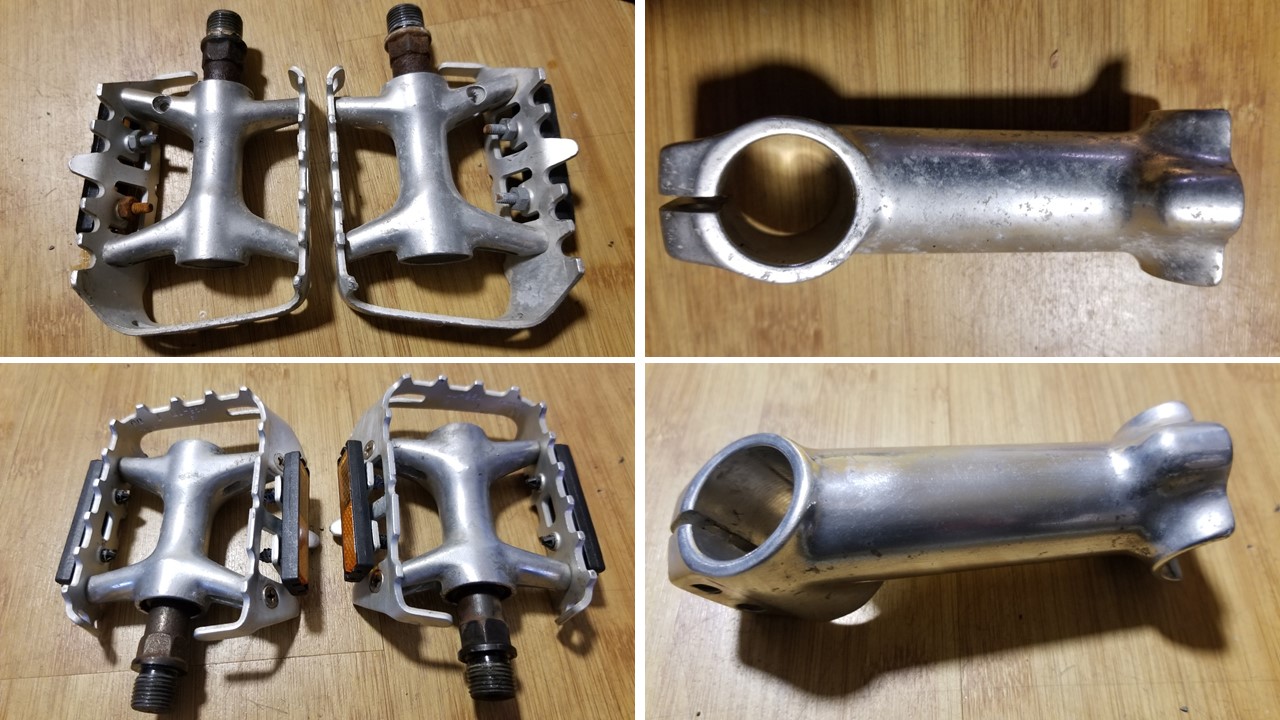

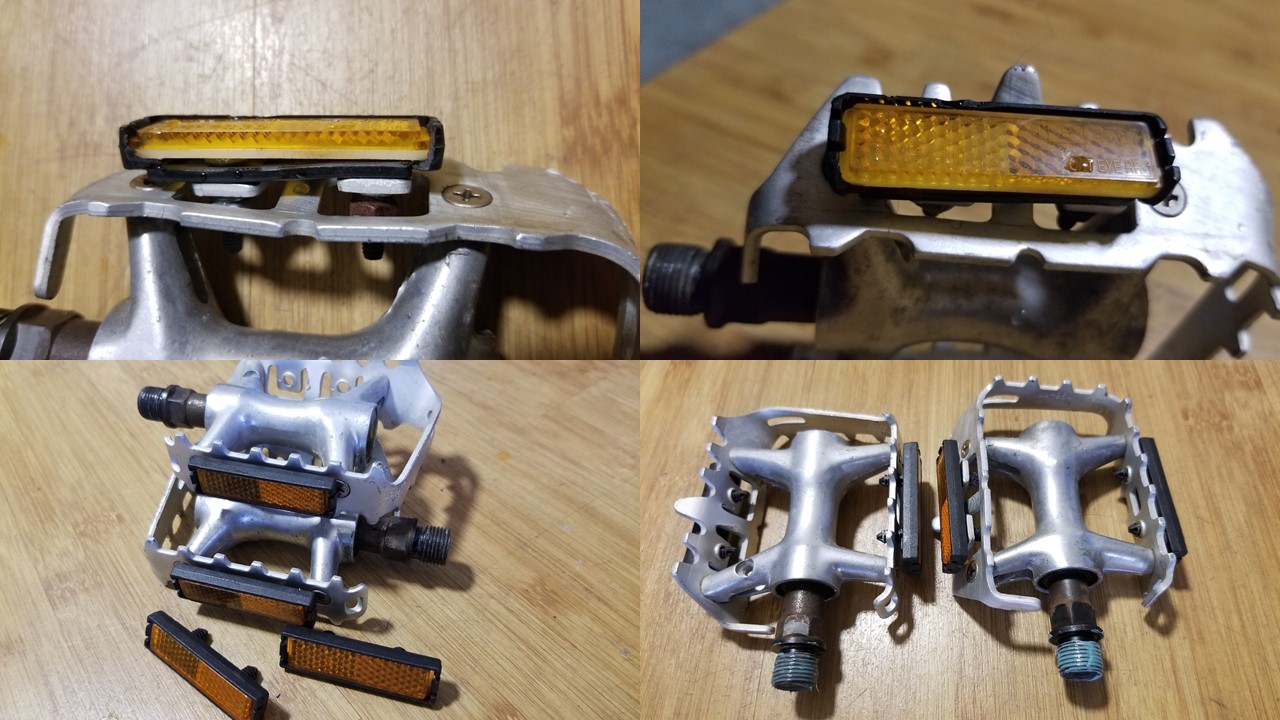

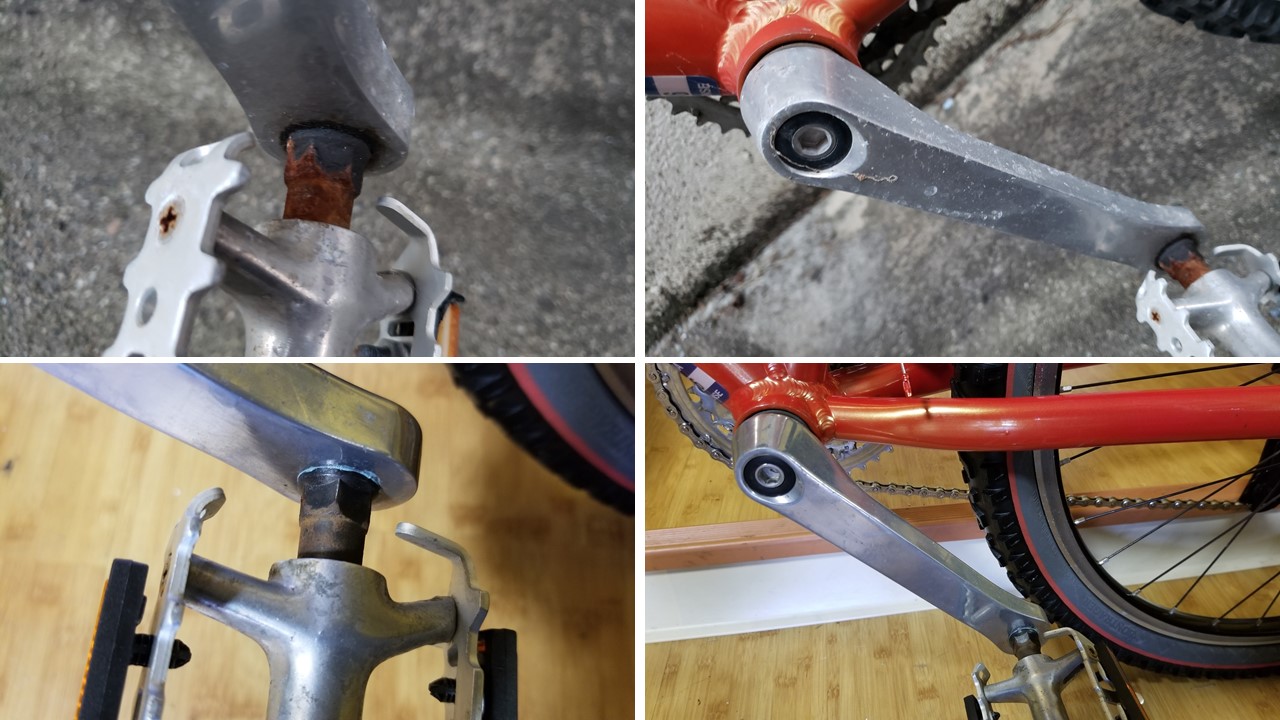

- Pedals: Aluminum cage w/clips & straps

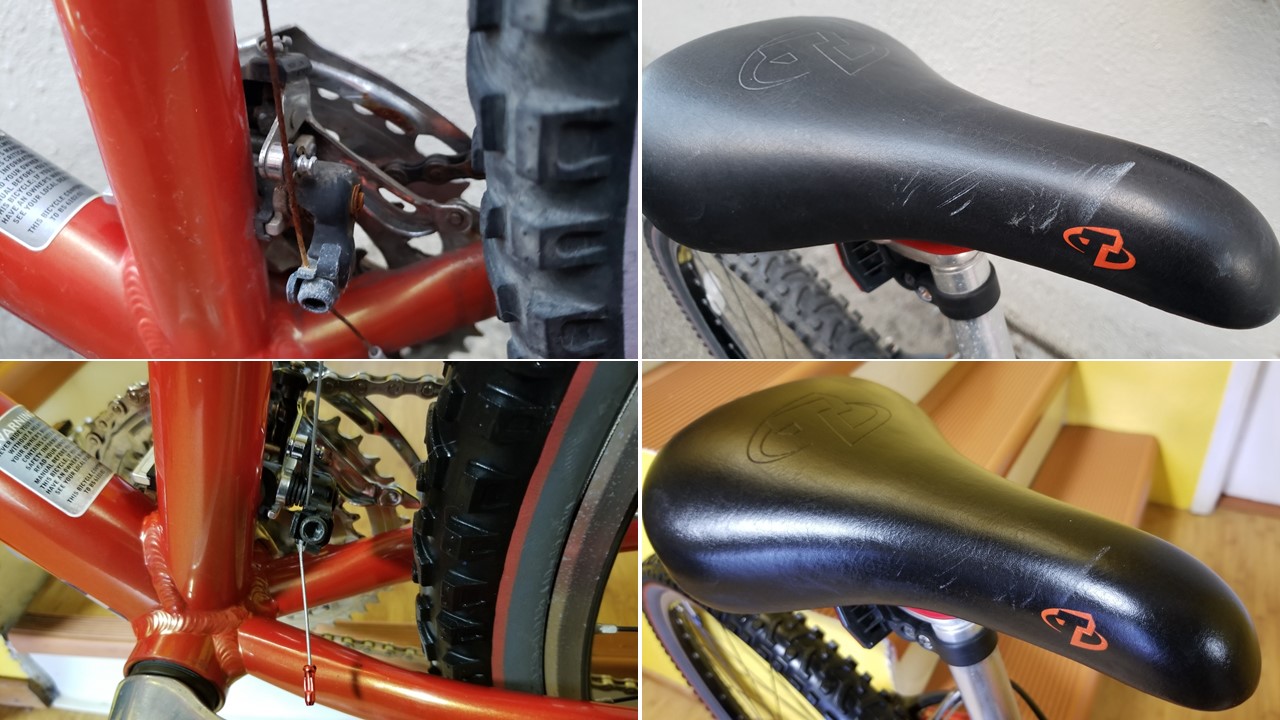

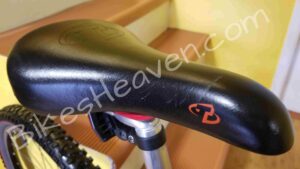

- Saddle: Bontrager FS+10 Comp
