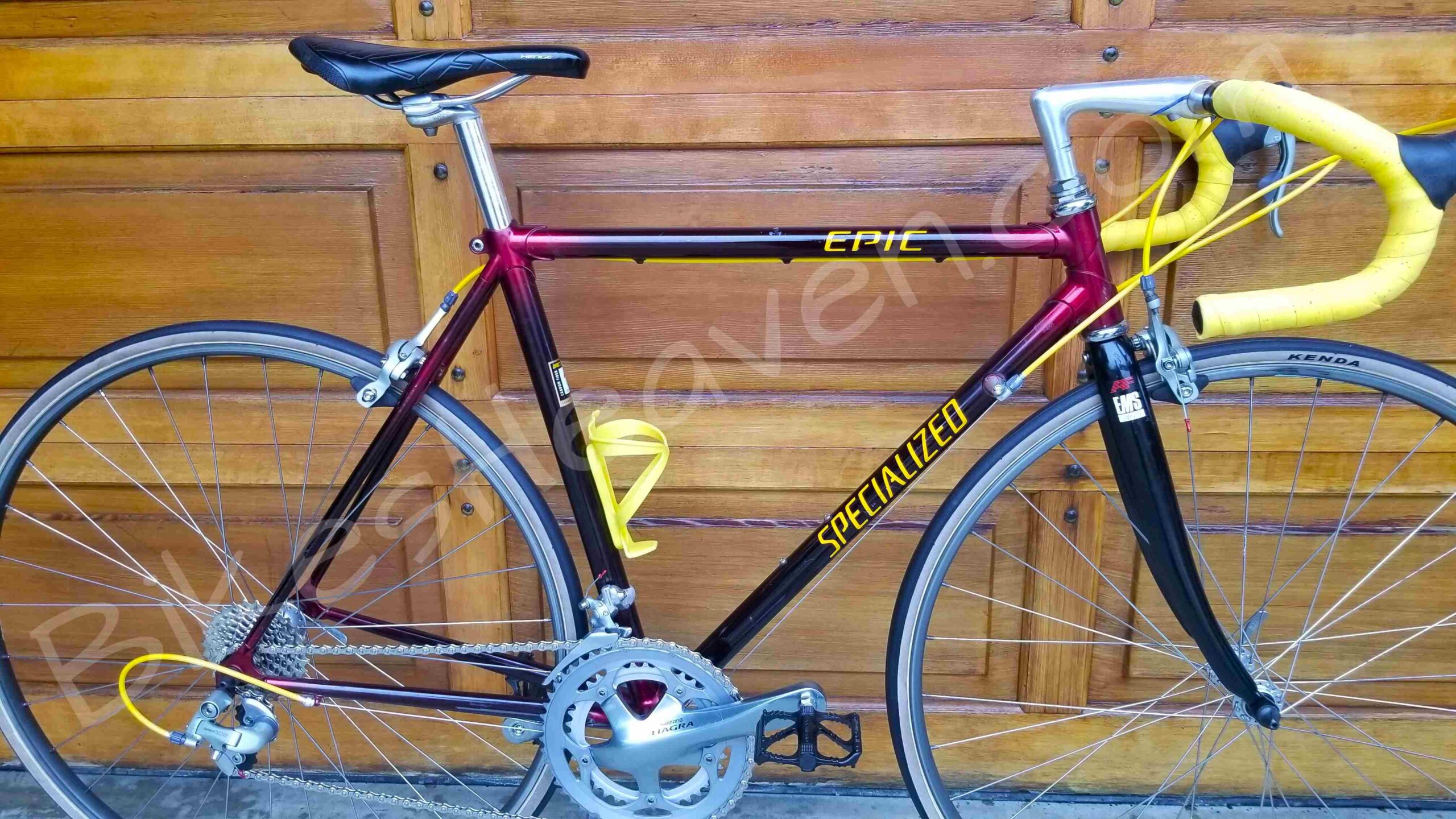

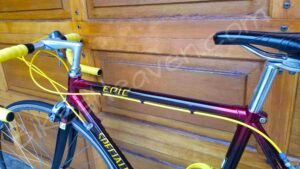

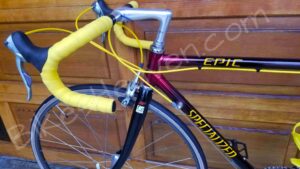

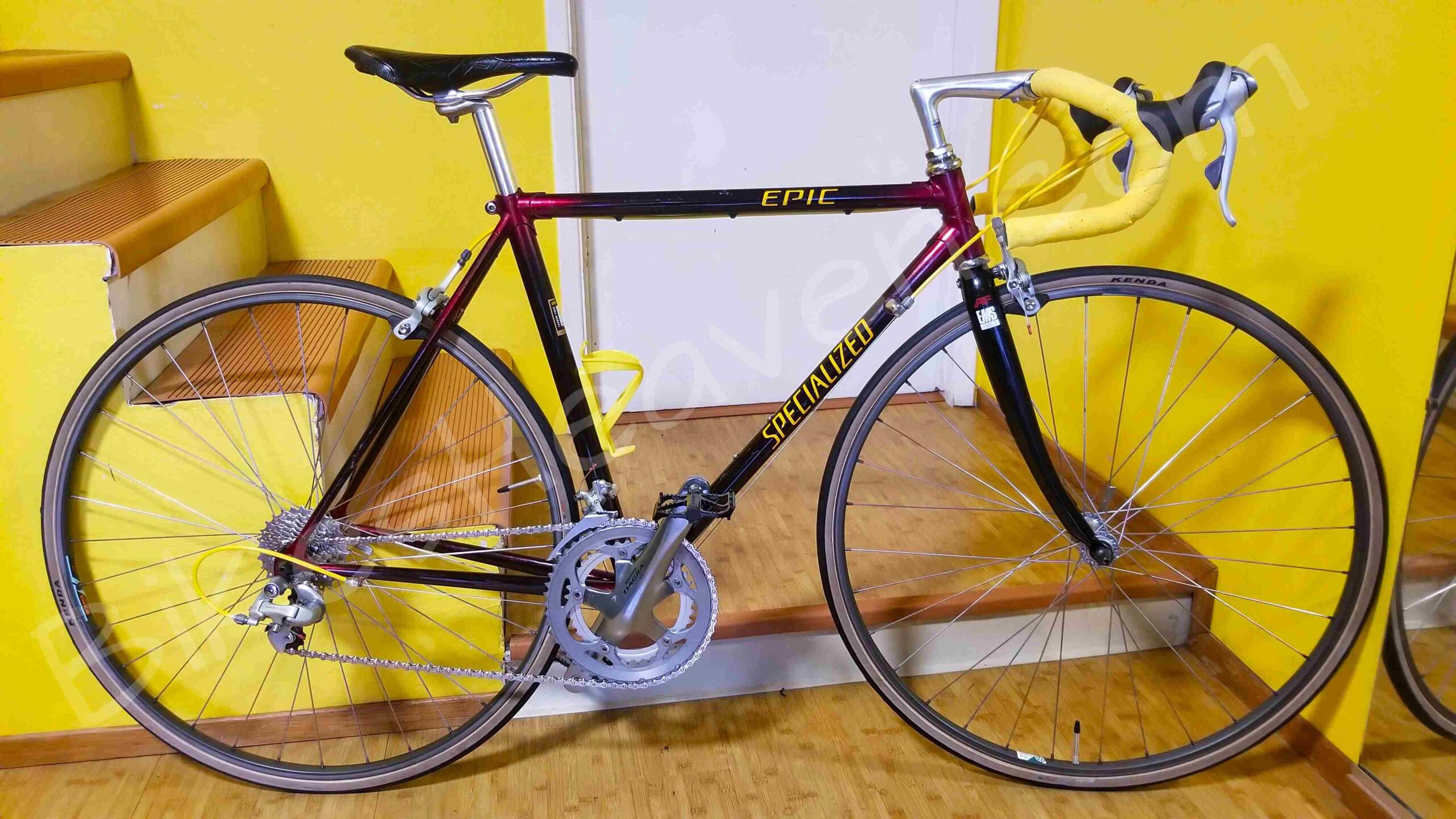

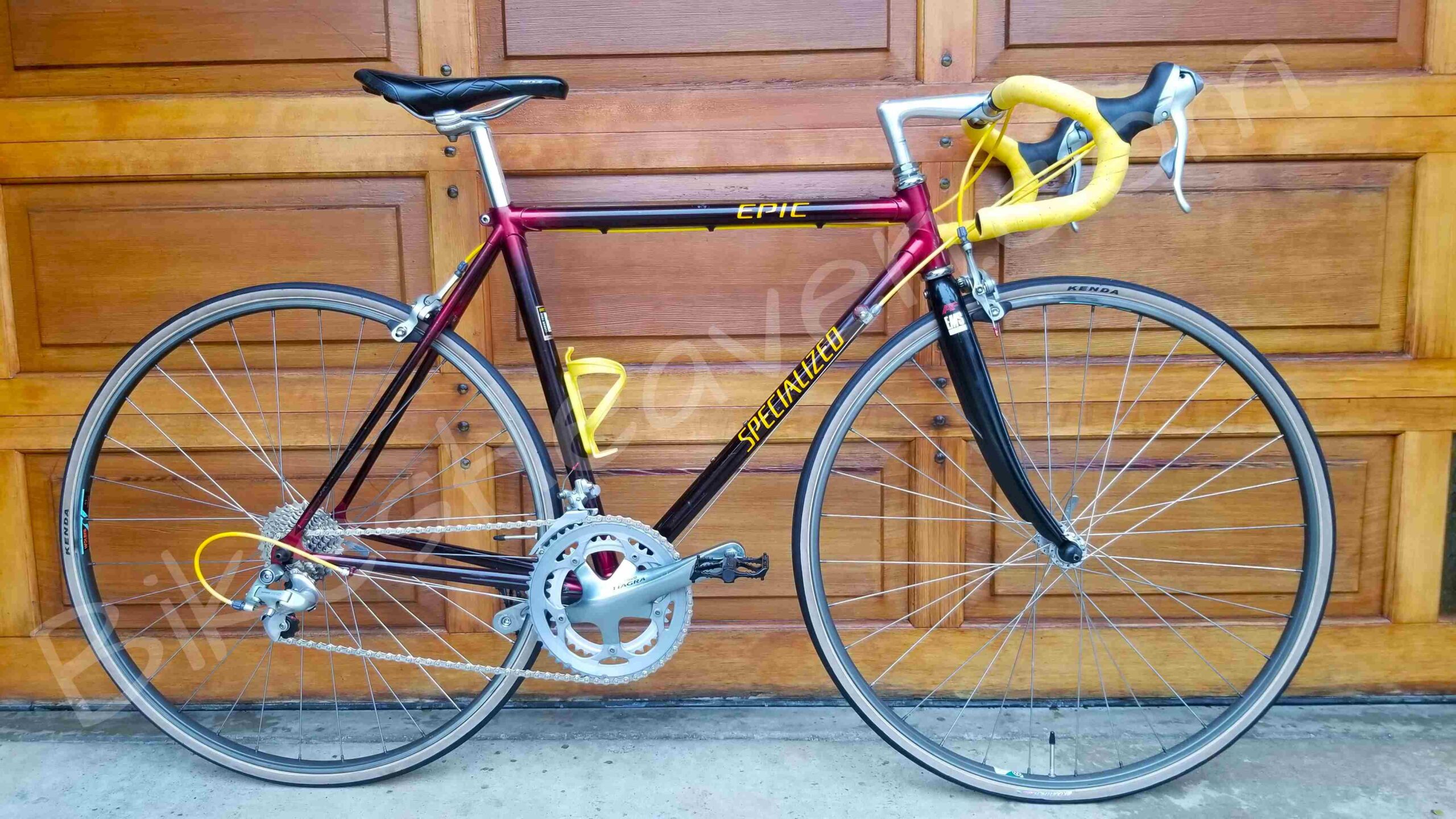

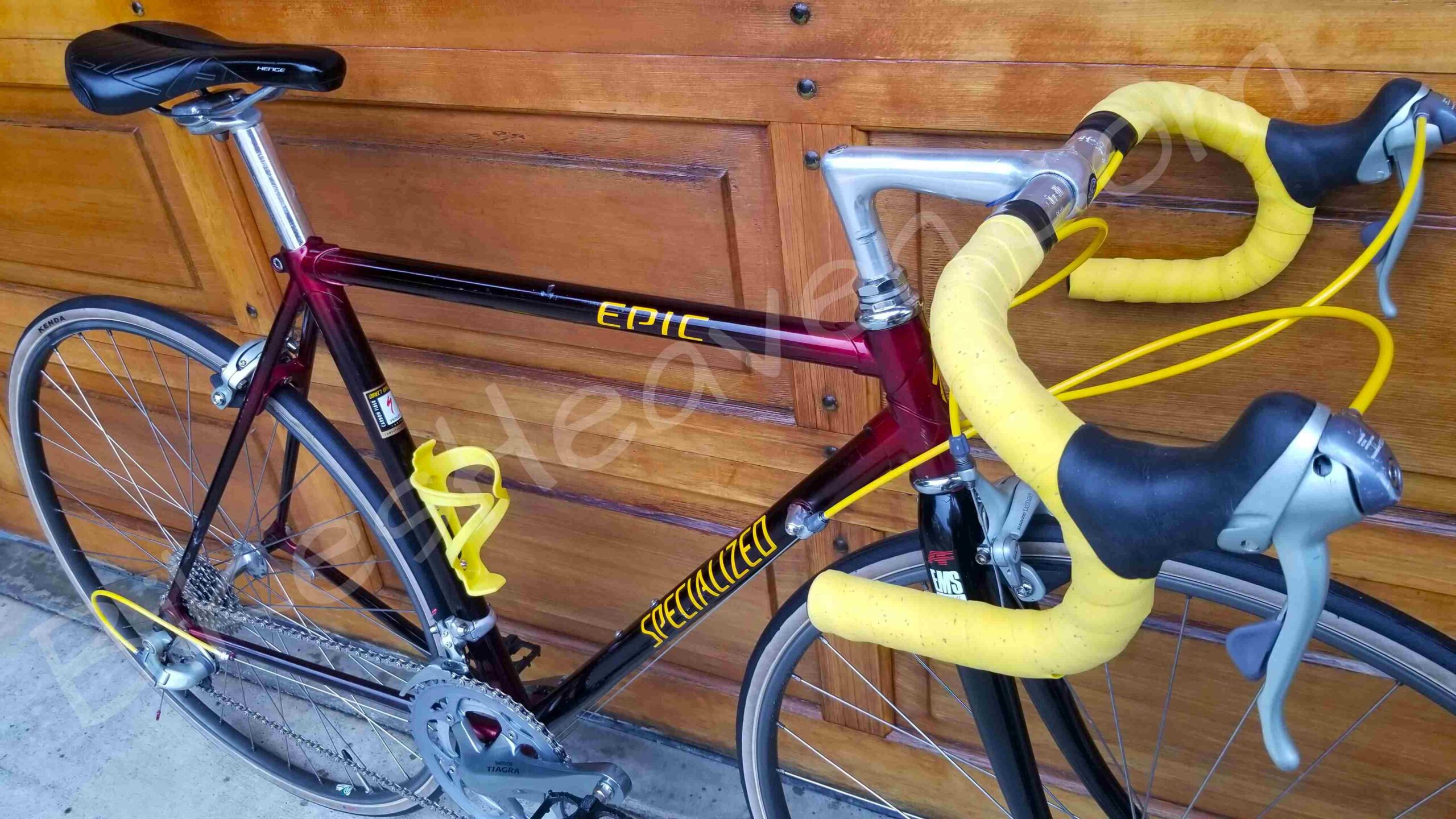

1993 Specialized Epic 52cm carbon 'ruby'

The 1993 Specialized Epic is a premium road/triathlon racing bike. Best for 5’2″-5’7″ riders. It is highly regarded as a milestone bicycle because it represents the “Carbon Dawn” era of cycling history. Unlike modern one-piece carbon fiber frames, the 1993 Epic used a unique transitional, multi-material design that blended classic frame building with cutting-edge composite materials.

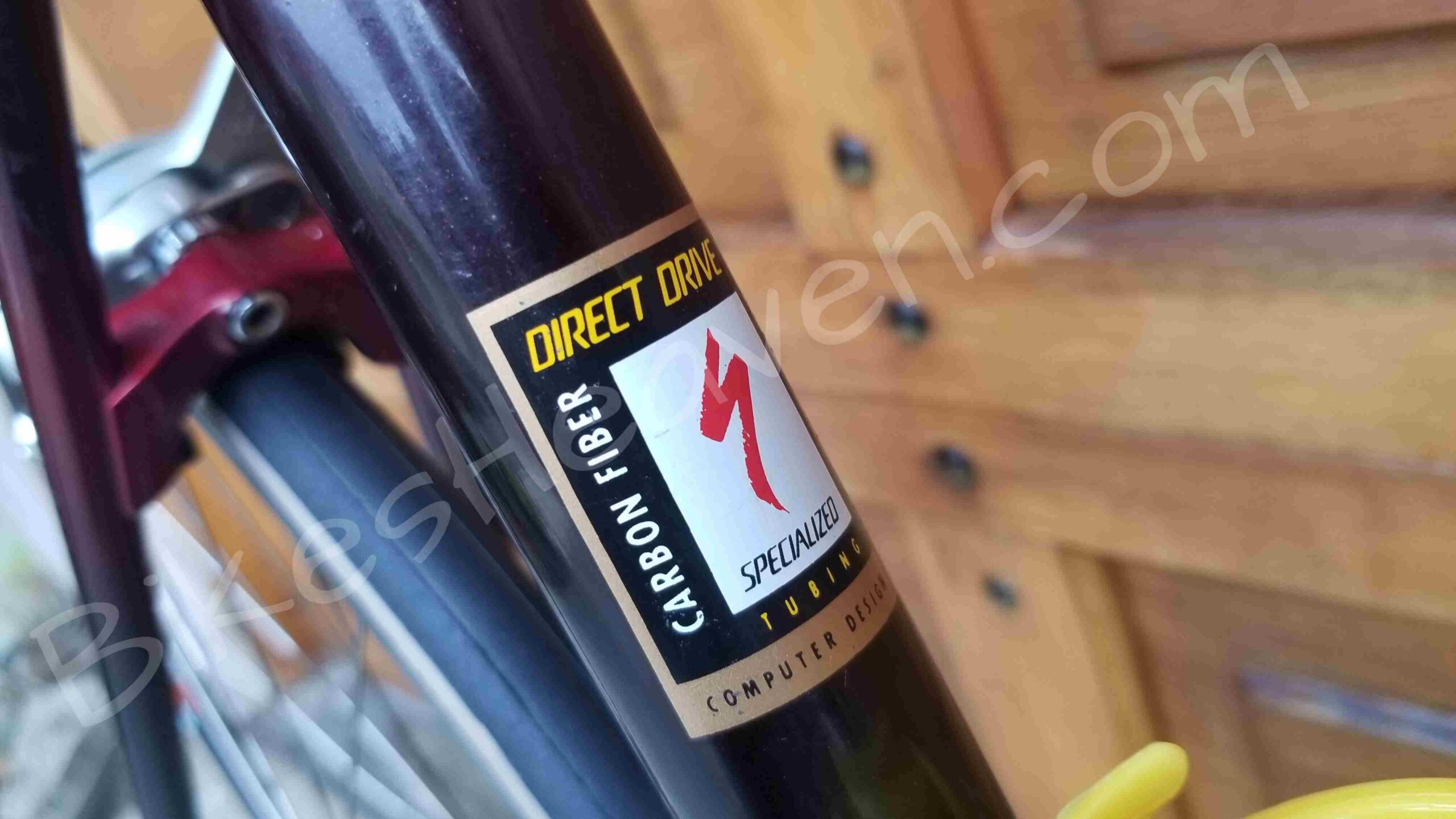

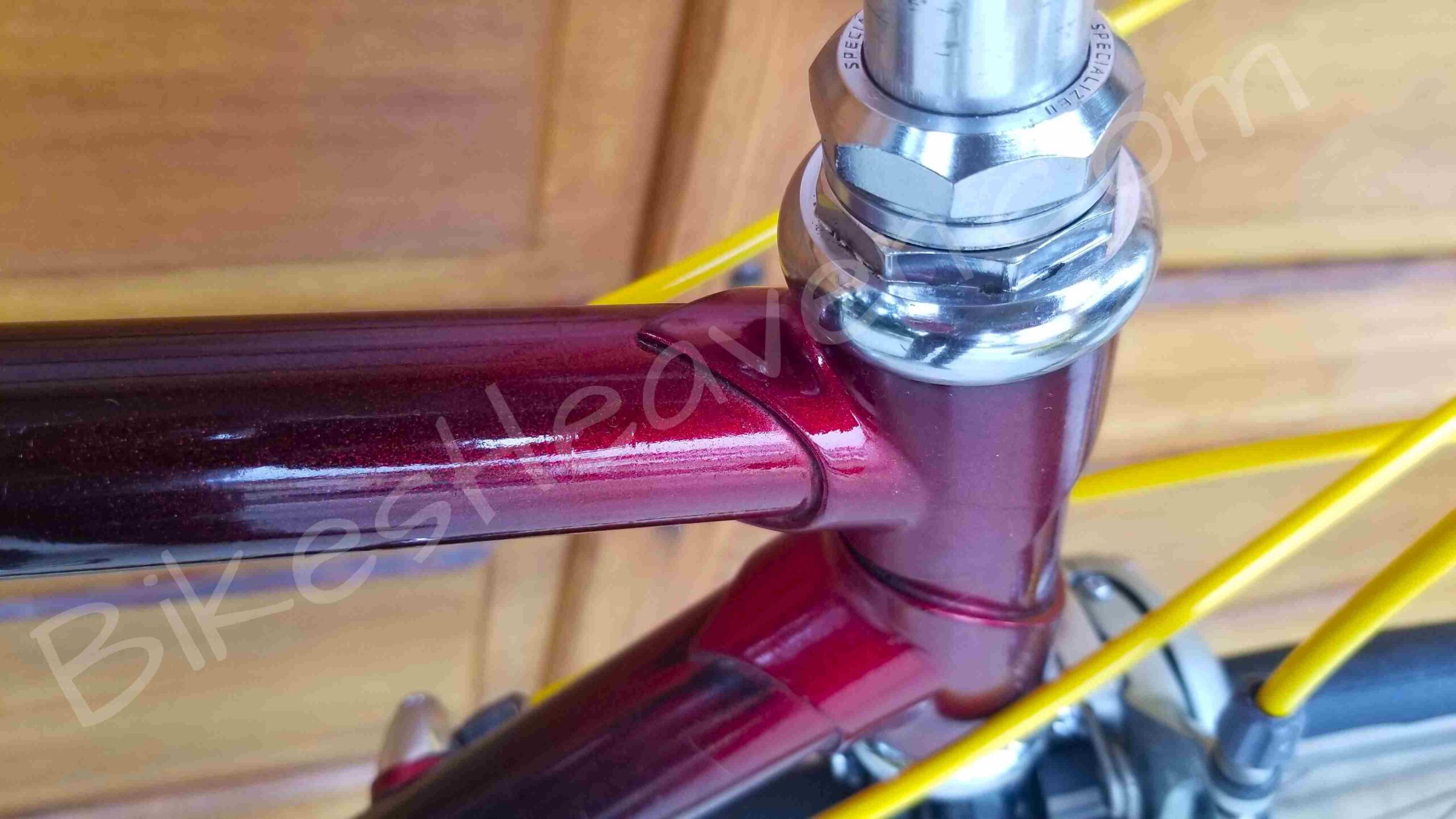

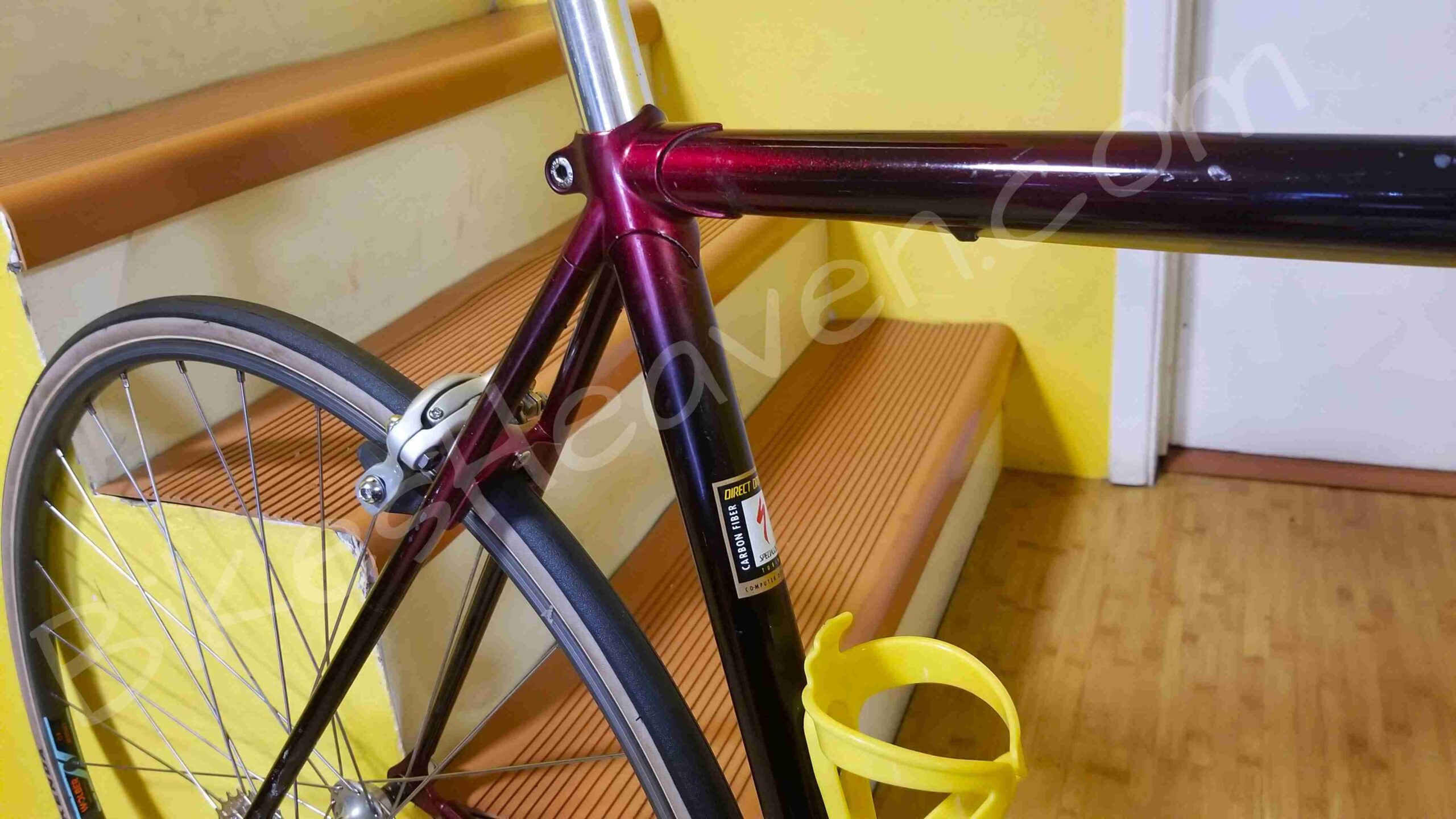

The standout feature of this bike is its lugged carbon fiber construction. Specialized utilized Direct Drive carbon fiber tubes, bonded into elegant aluminum lugs with heavy-duty epoxy. This design replicates the smooth, dampened, resilient ride quality of a traditional steel frame, with the added stiffness and lightness of carbon. Fully built, this bike weighs under 21 lbs. Weightless.

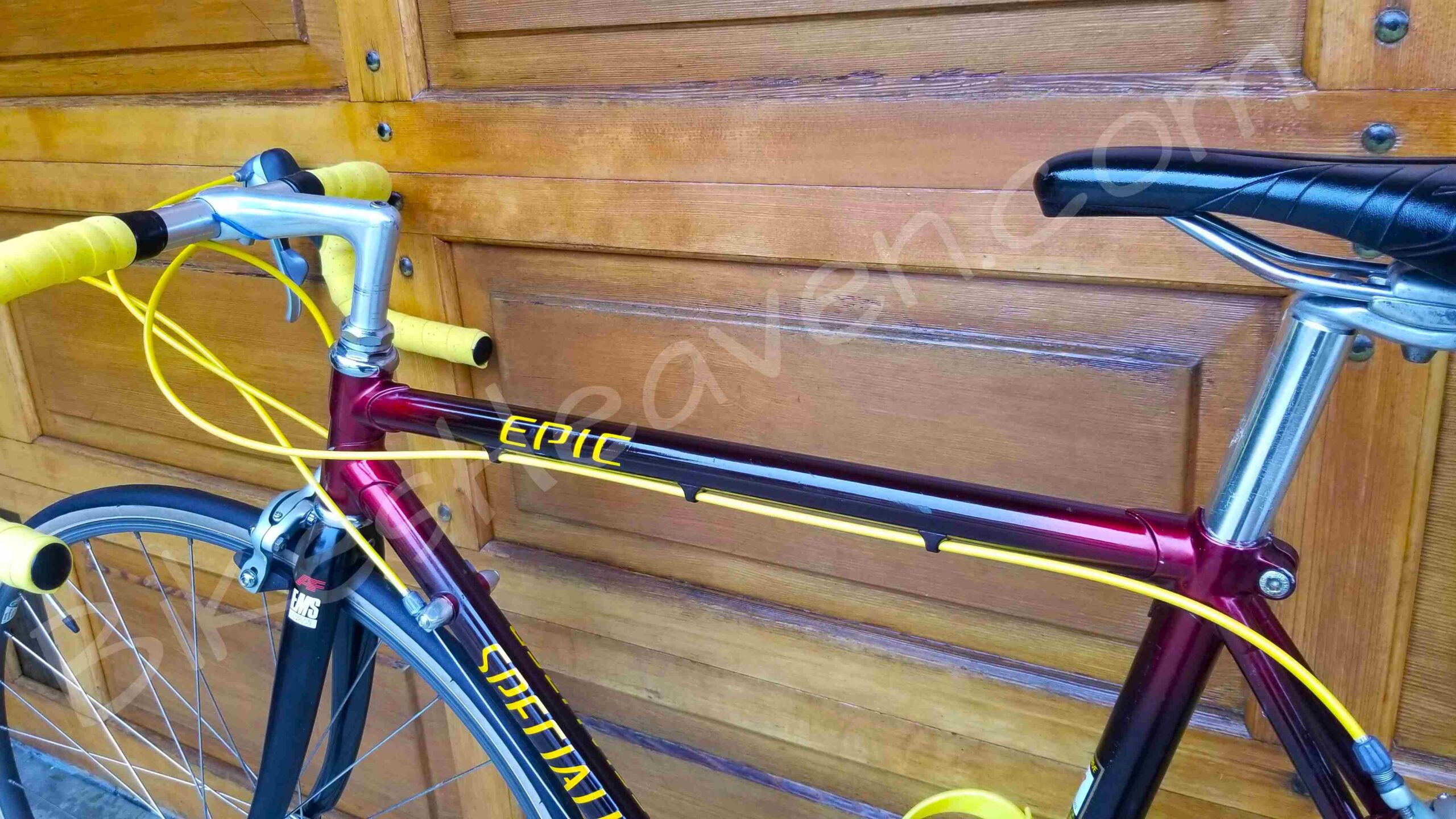

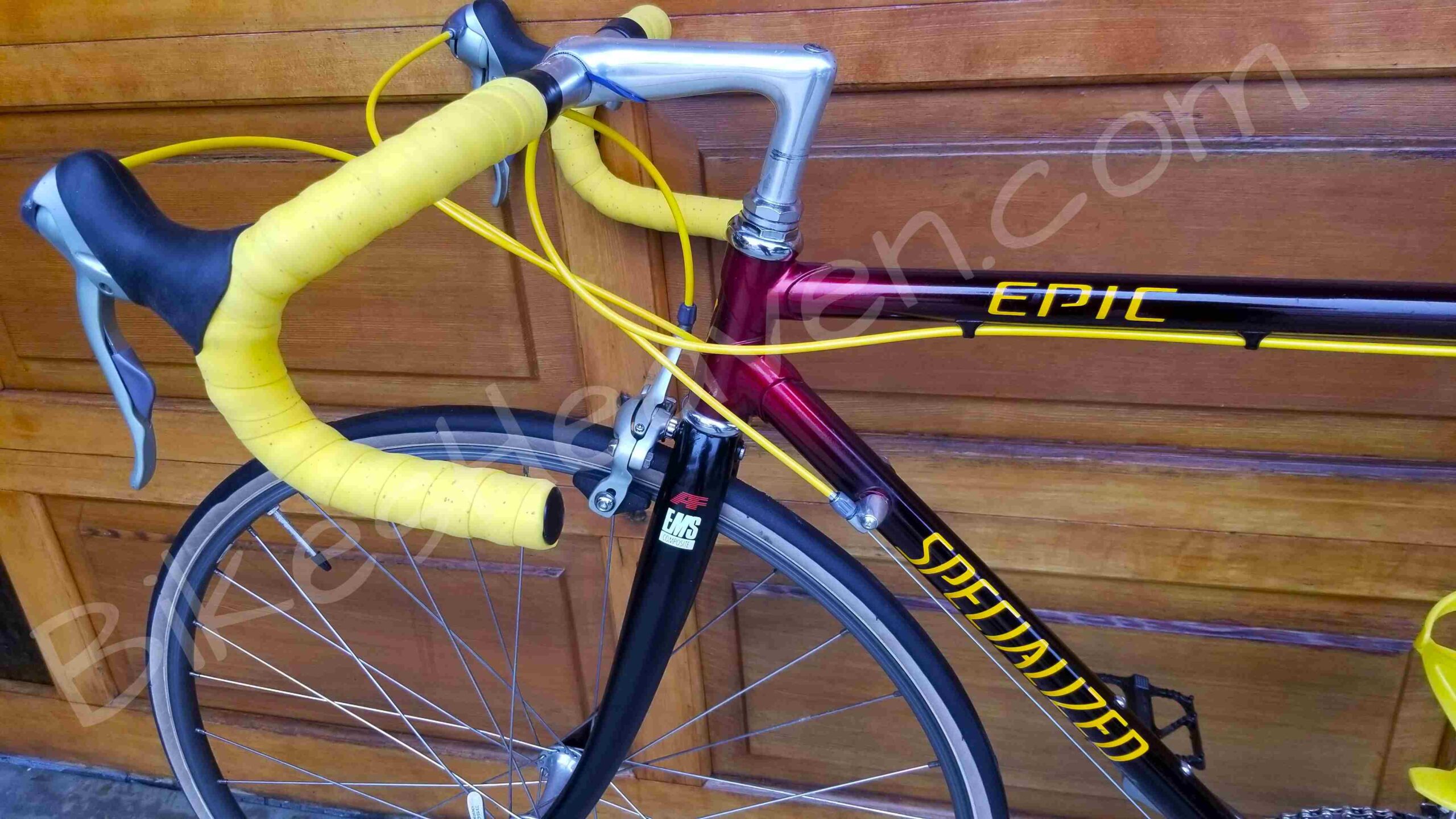

Original lugged carbon tubes painted in ruby red/black. I got this bike with an EMS composite fork, Cinelli stem, Cinelli handlebars, and a single-speed cog. I restored it to its original glory with a full Shimano 105 STI drivetrain, Shimano RX100 wheels, and new Shimano components, including a HollowTech bottom bracket, a modern Tiagra crankset, an 11-28T cassette, and a freewheel body. it rides like a dream.

This bike is now available for $650. If you see any reasons to negotiate this price, please review the replacement parts cost estimate for this bike. Please email me at bikesheaven1@gmail.com with any questions.

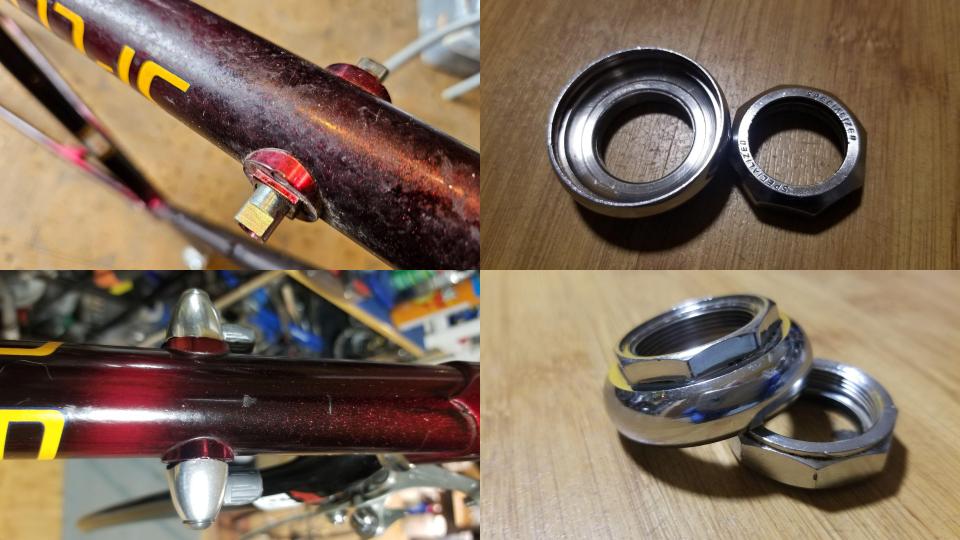

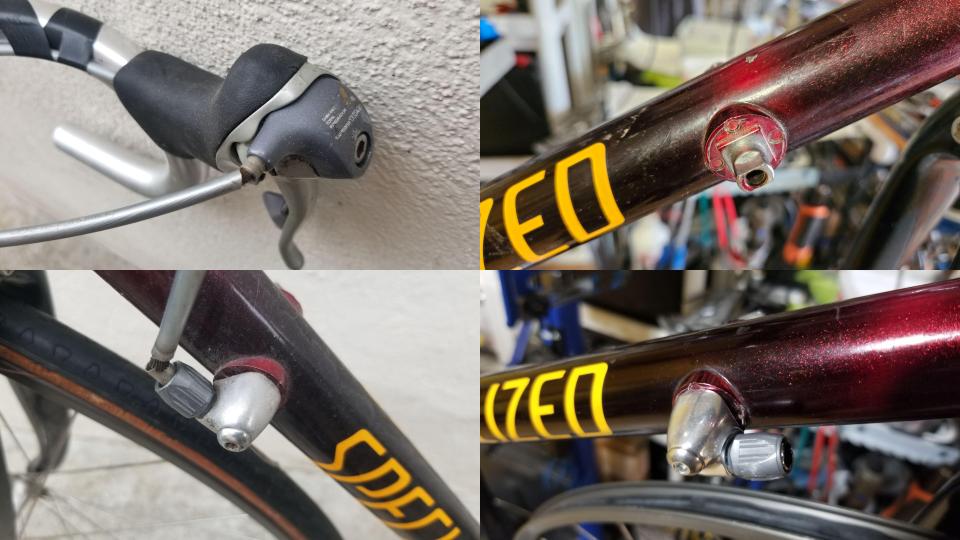

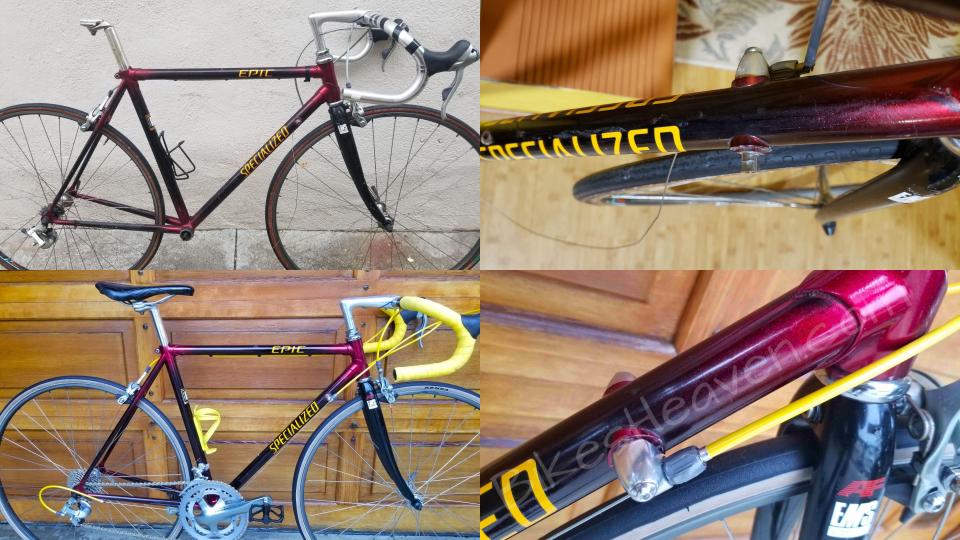

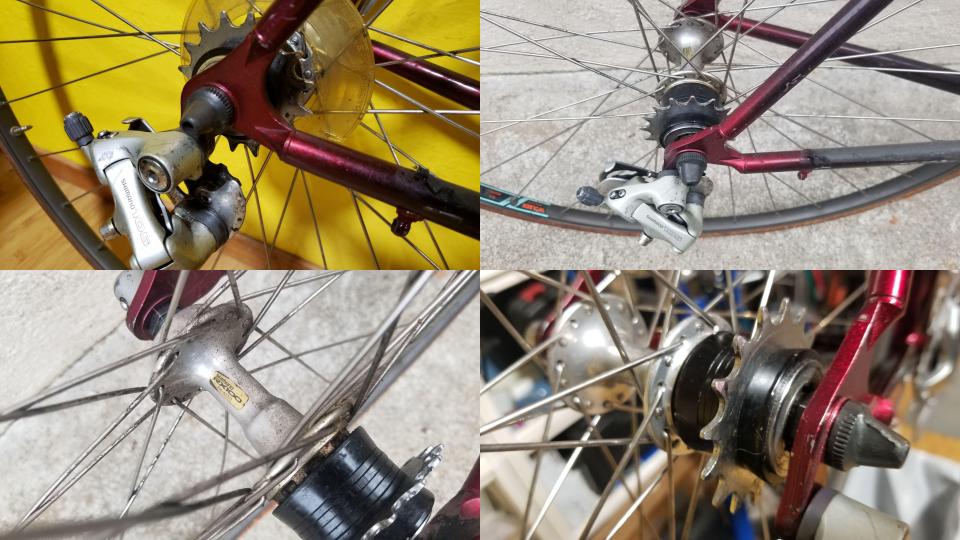

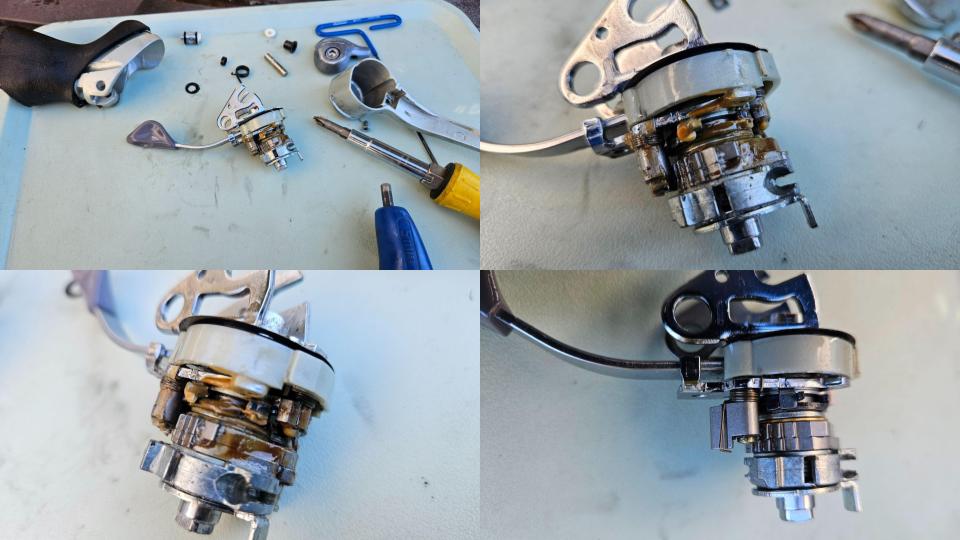

Restoration Pics

New & Upgraded Components

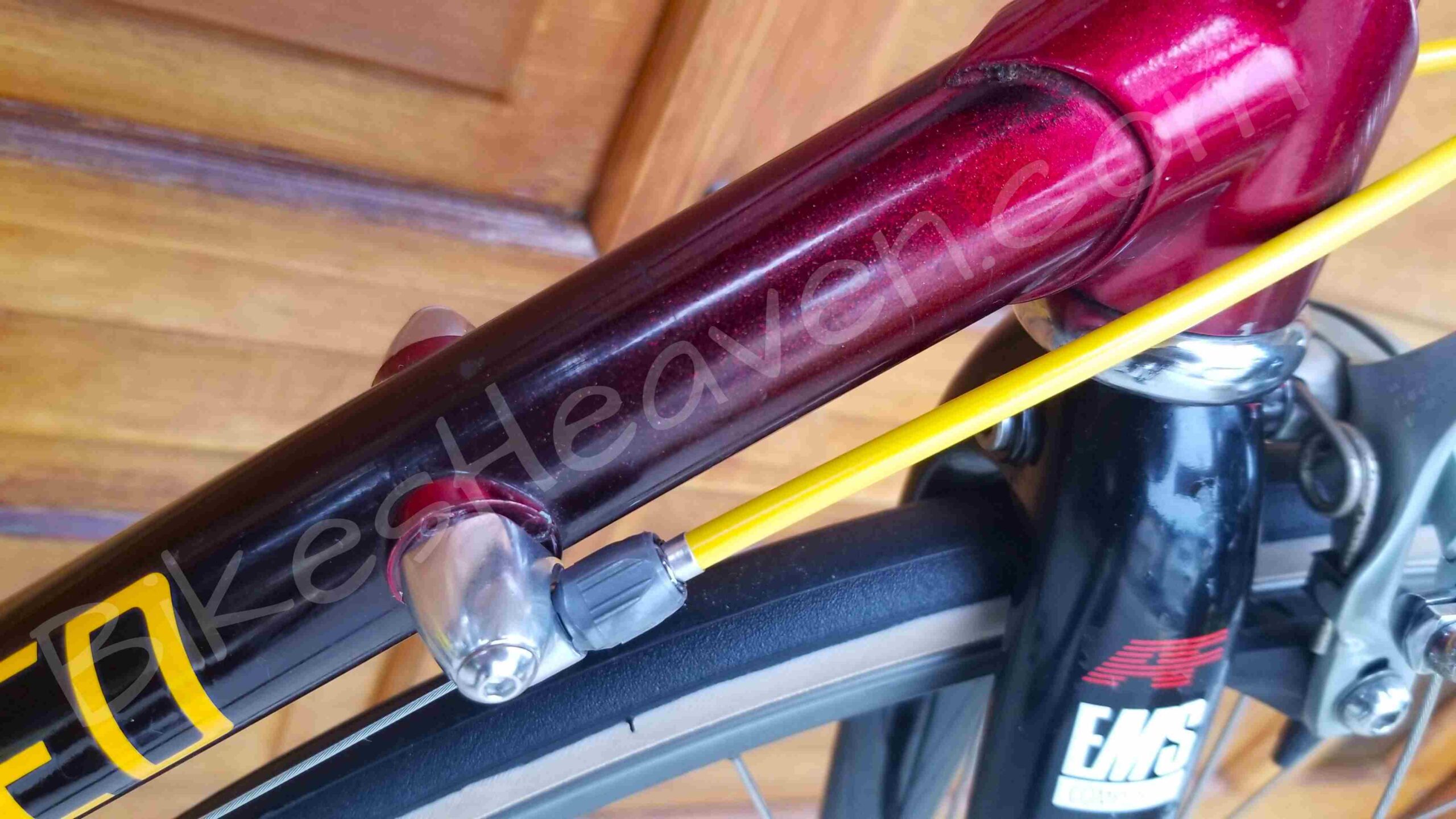

  • Fork: EMS Composite, chromoly steerer

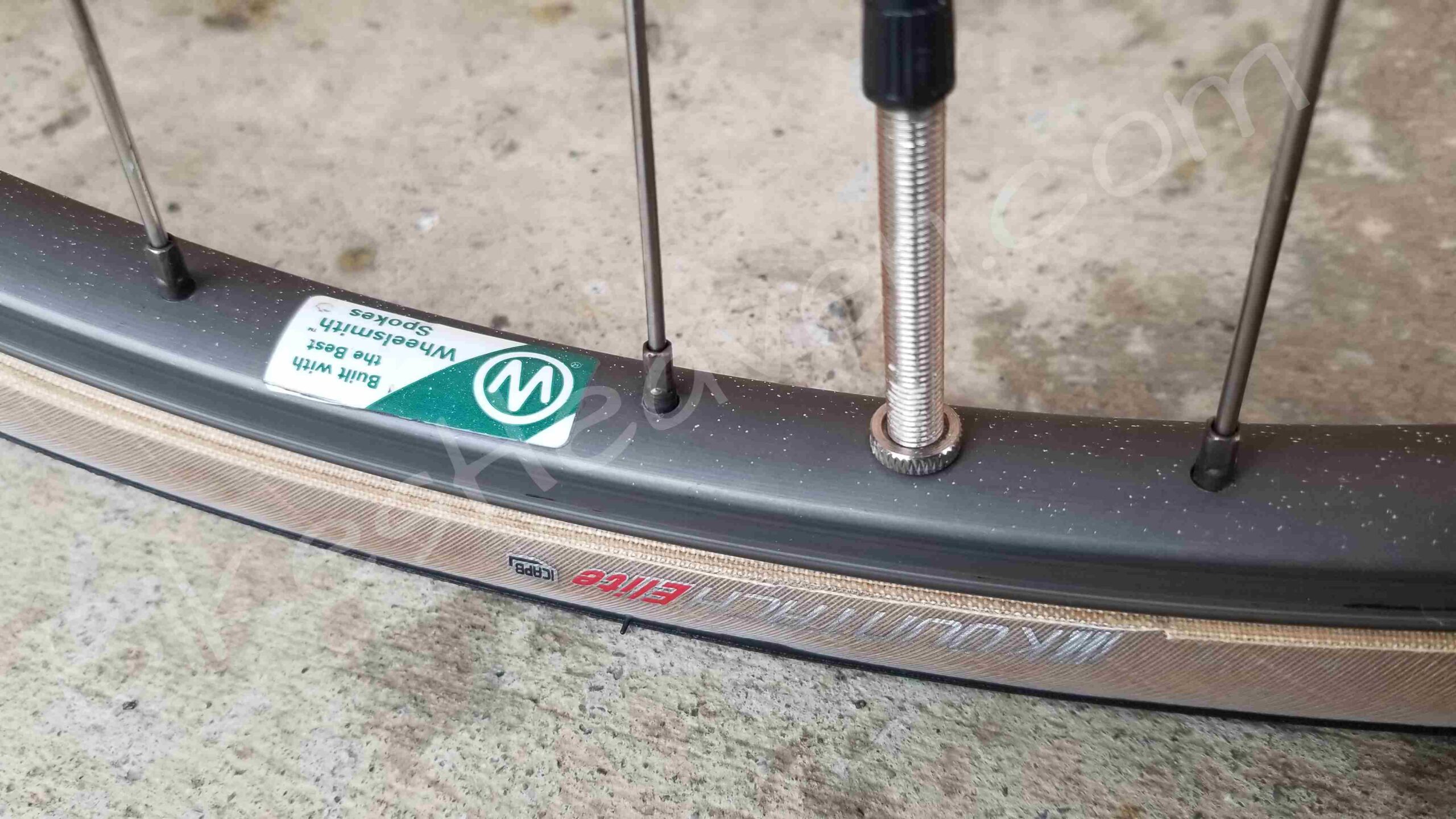

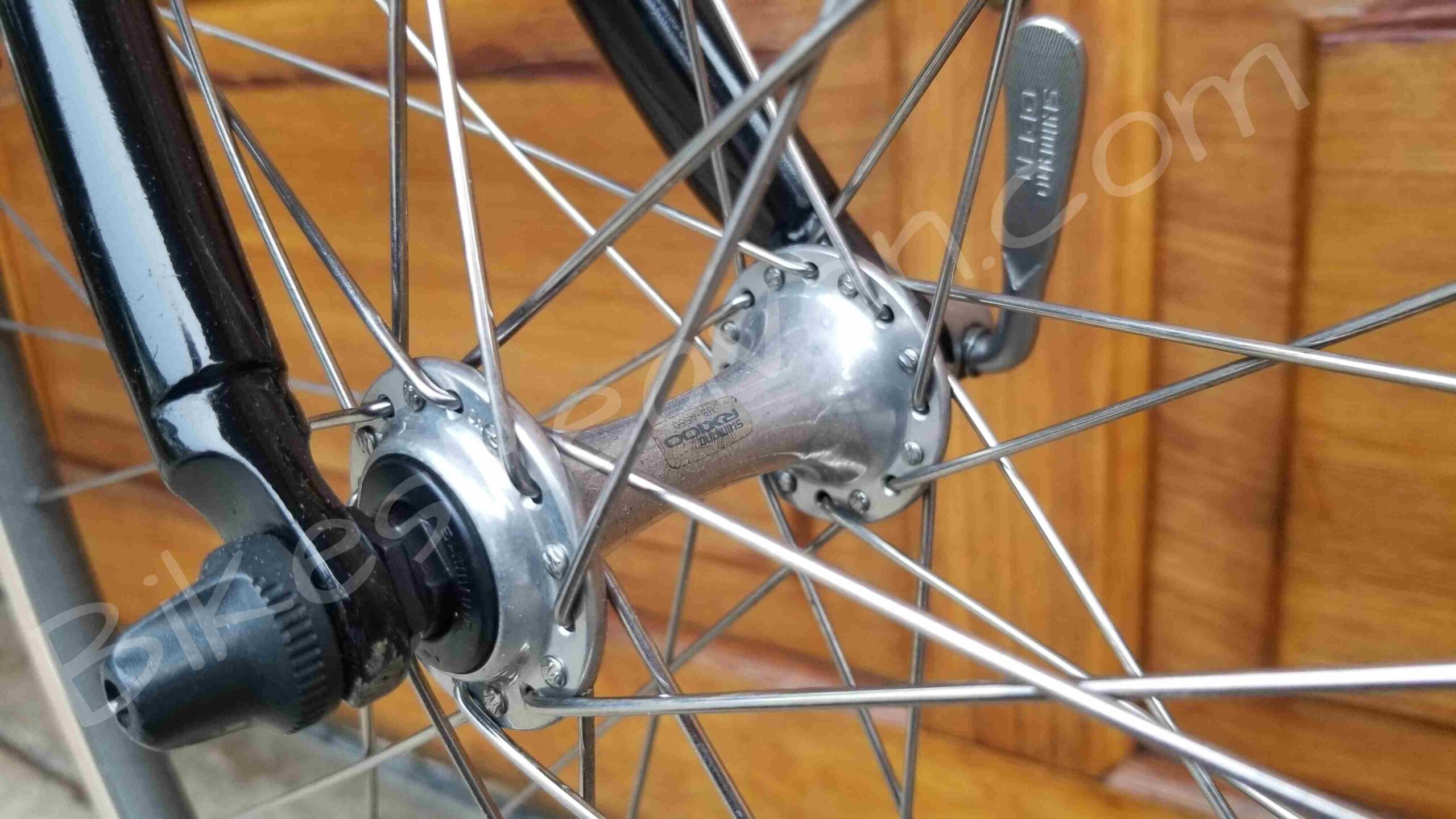

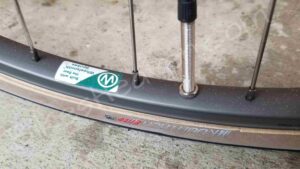

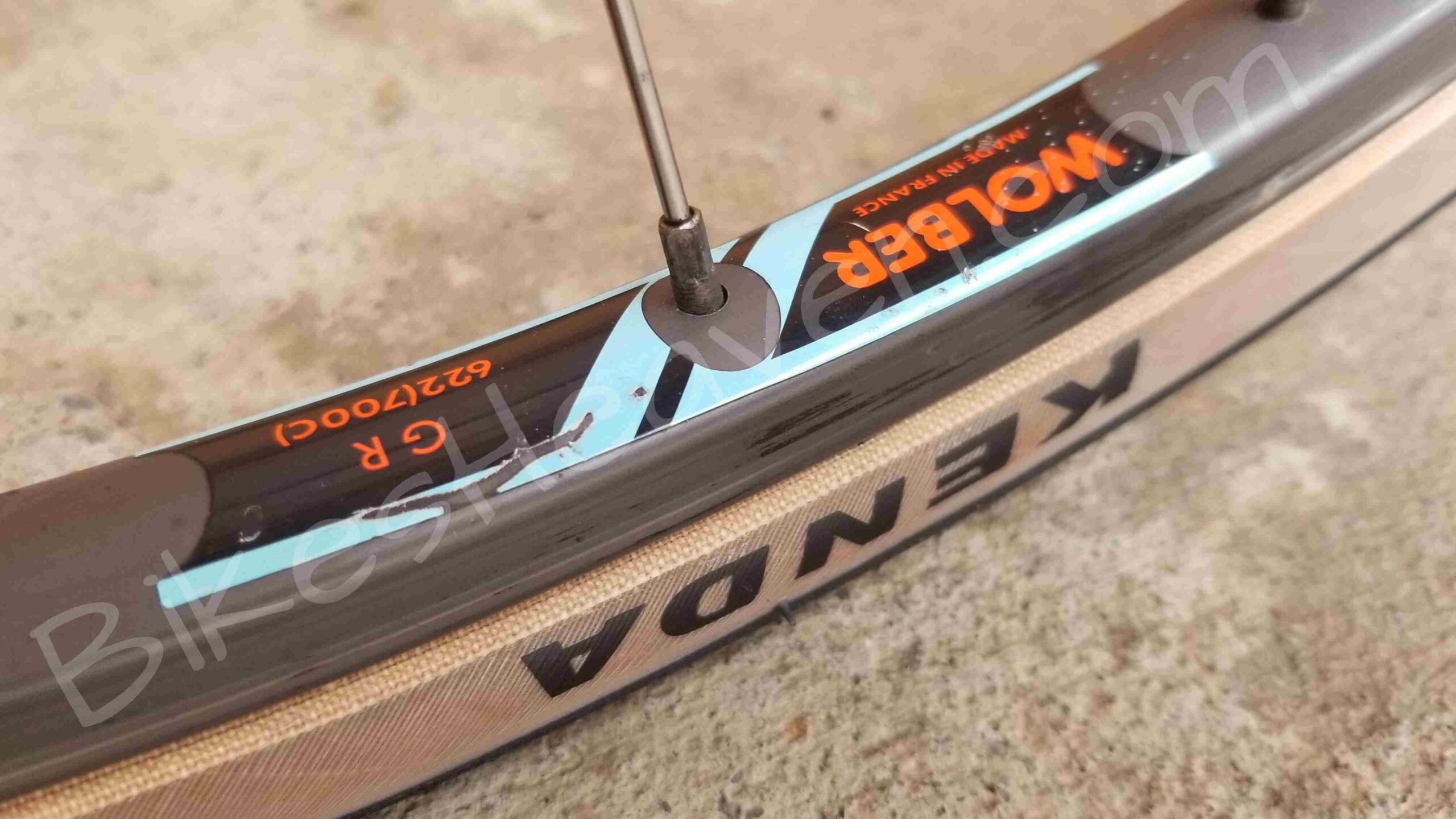

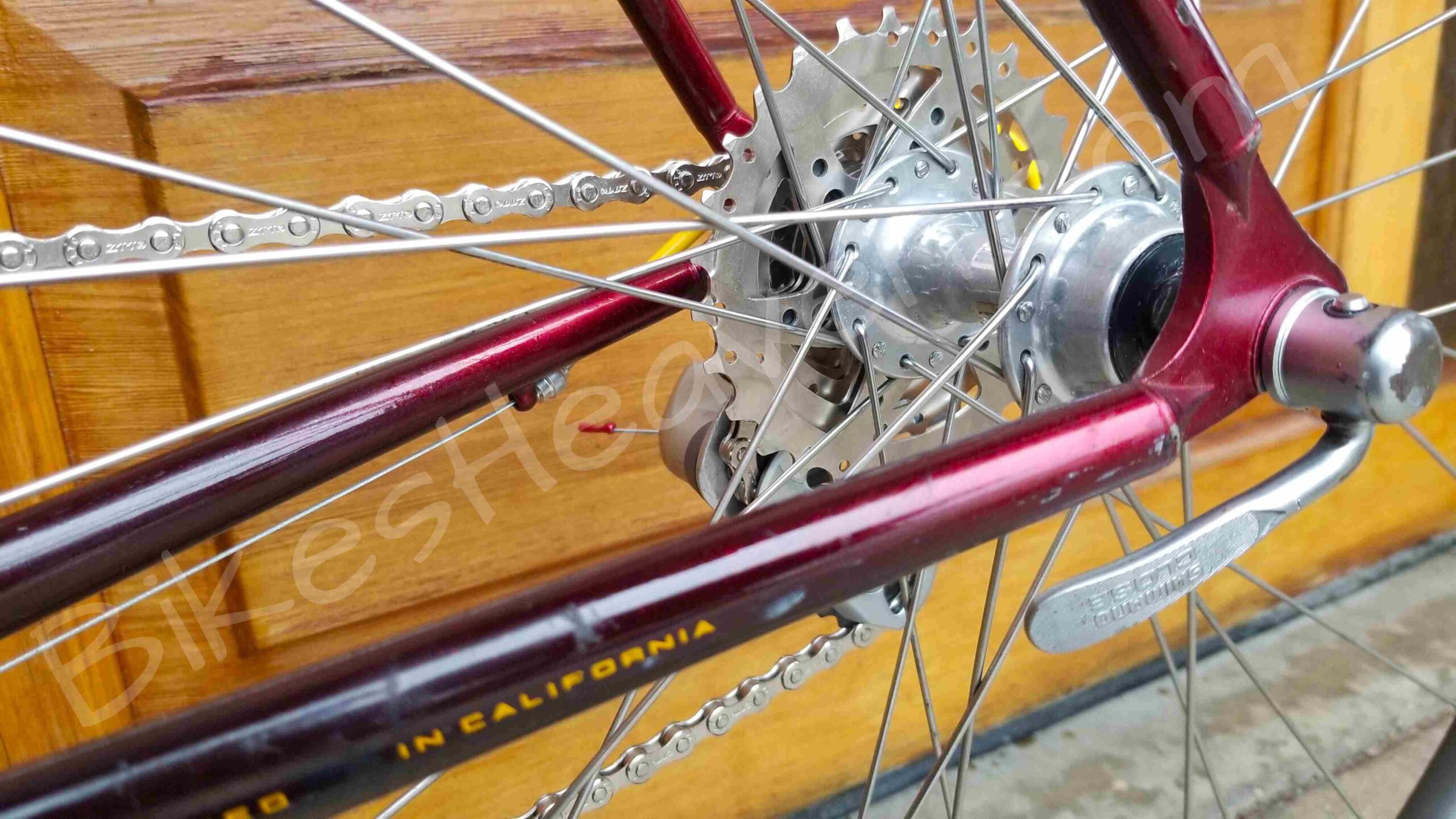

  • Wheels: 700c Shimano RX100 hubs, Wolber/Wheelsmith 19mm Rims, Stainless spokes

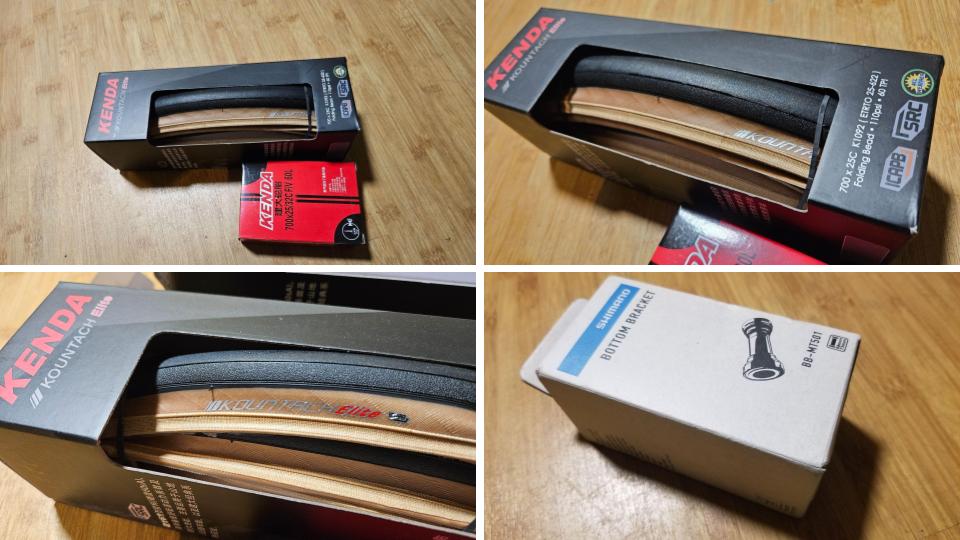

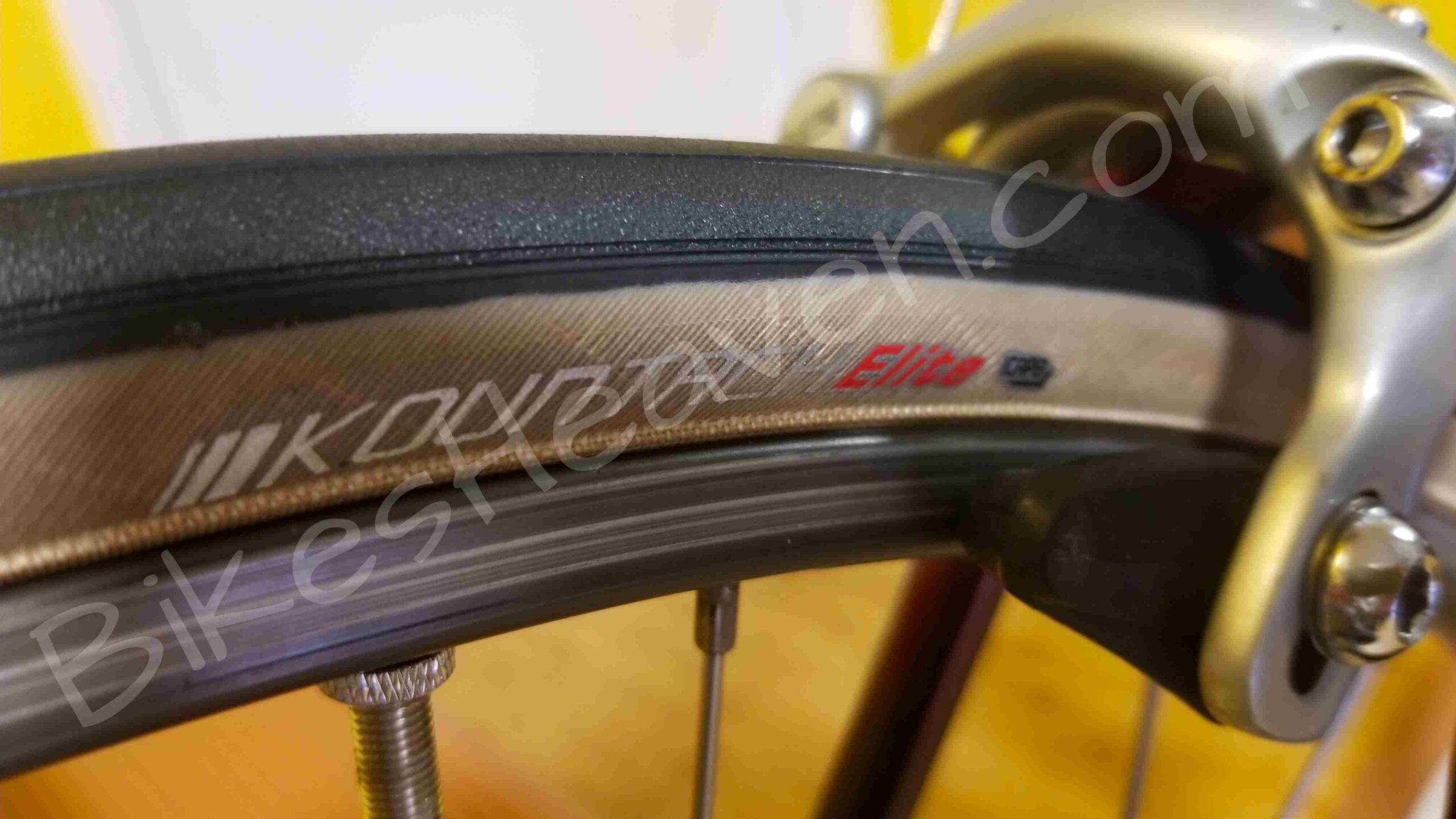

  • NEW Tires: 700x25c Kenda Kountach Elite
  • NEW Inner Tubes: 700x25c Kenda

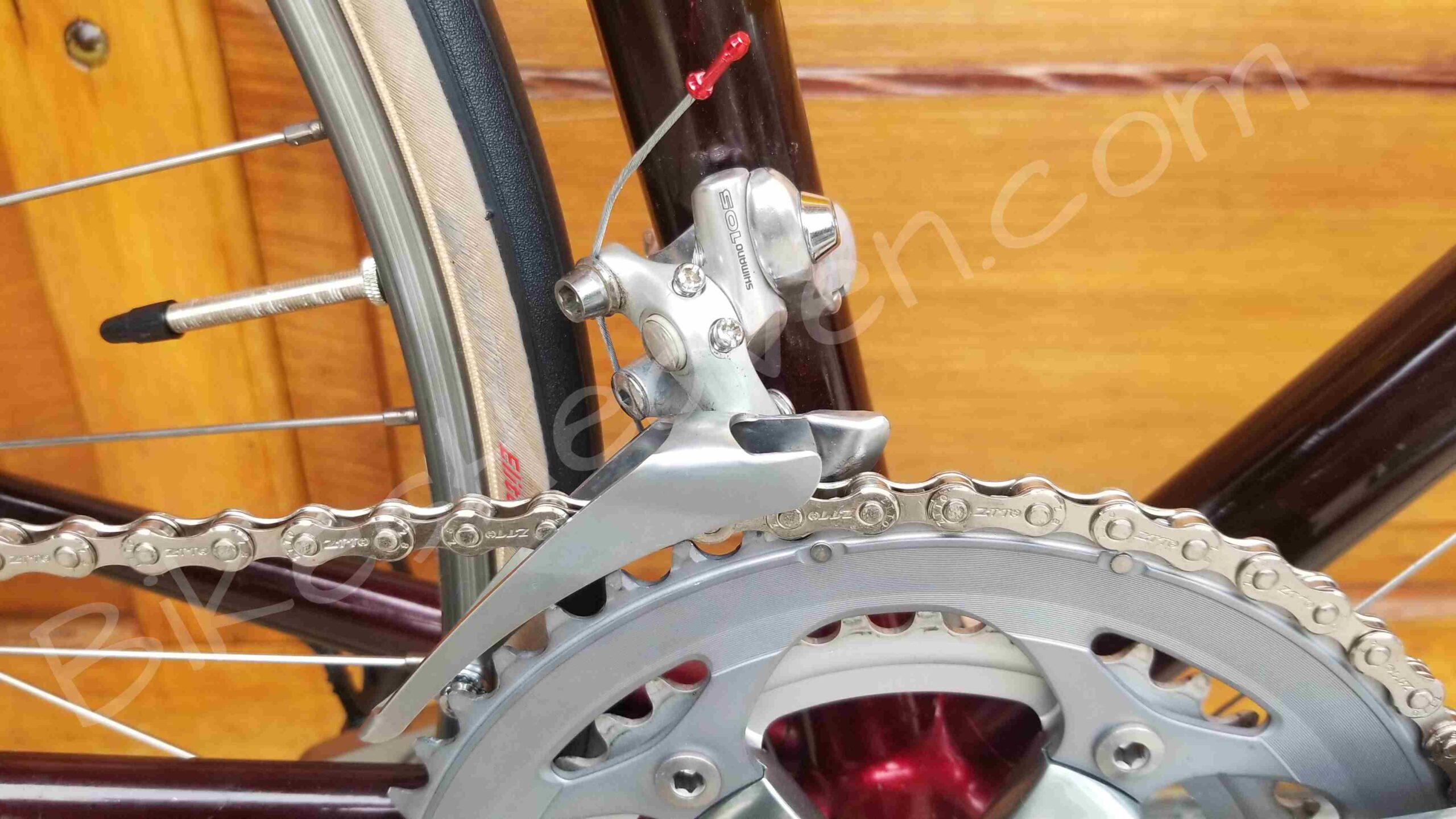

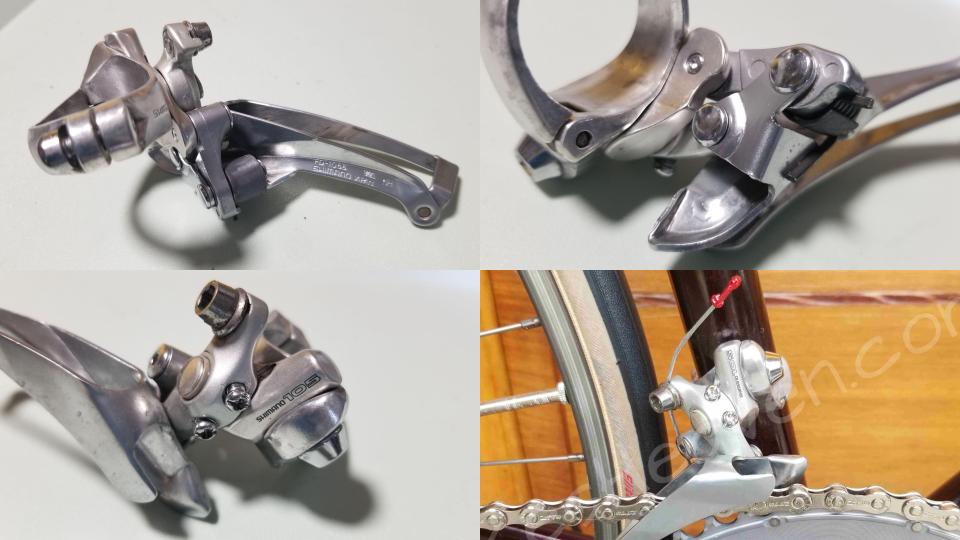

  • Front derailleur: Shimano 105

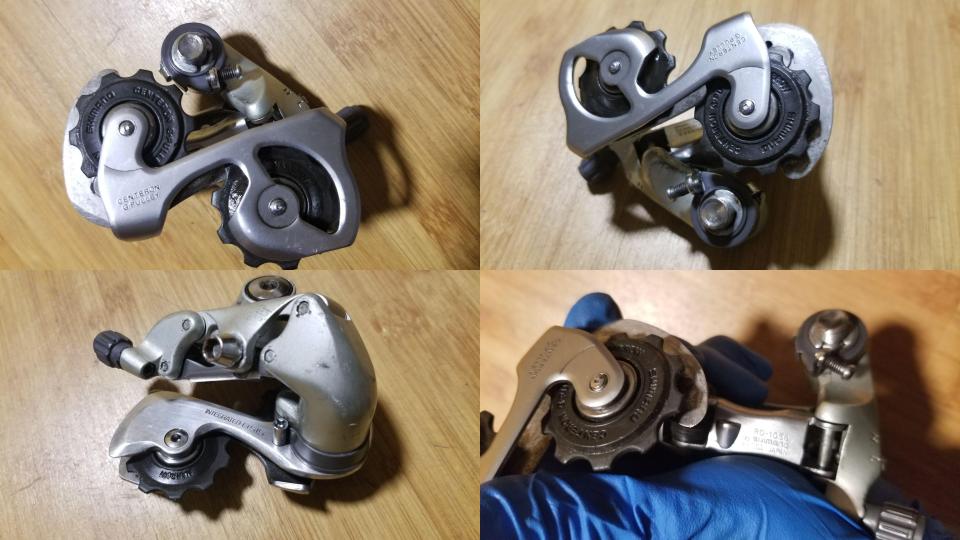

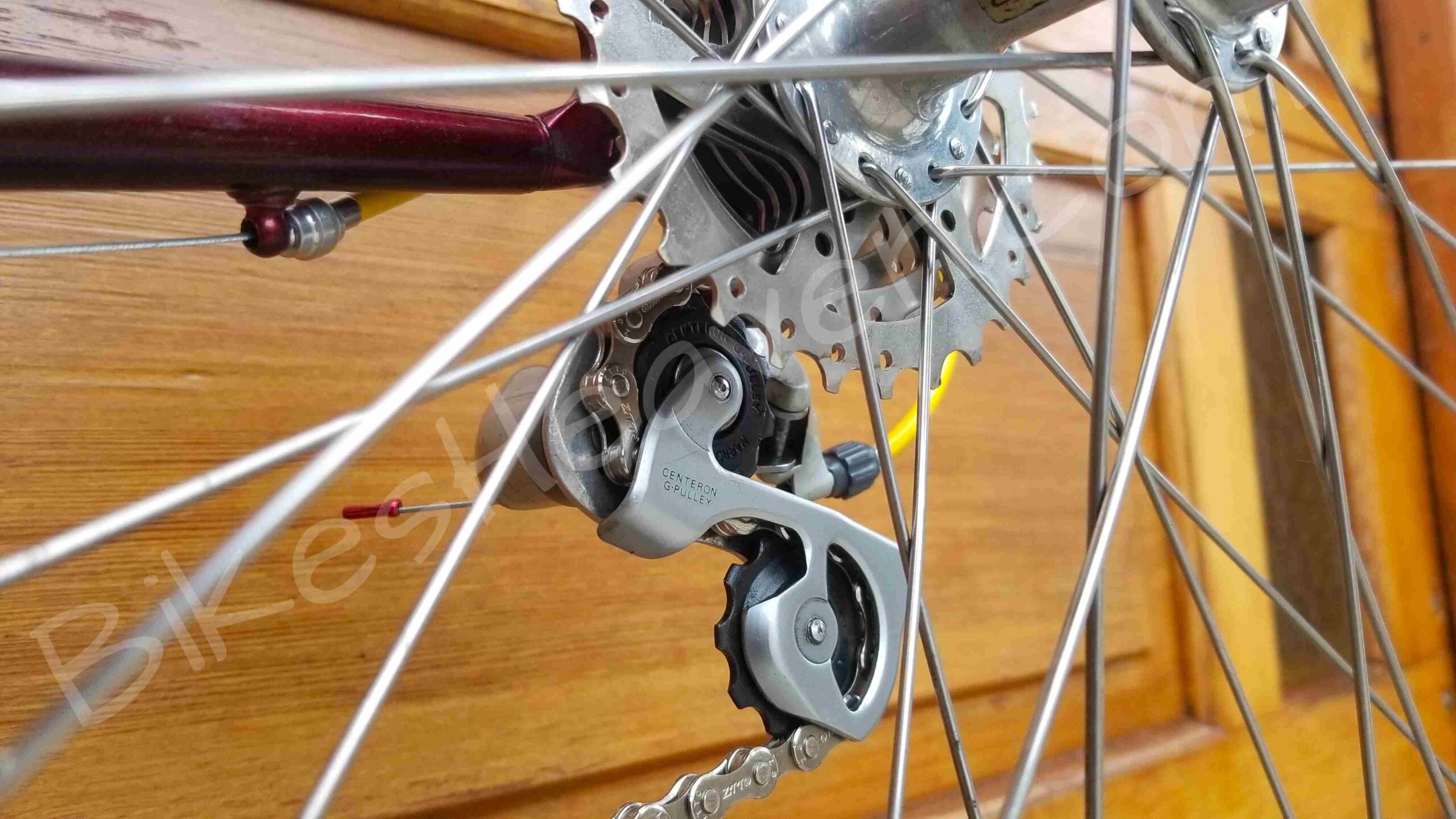

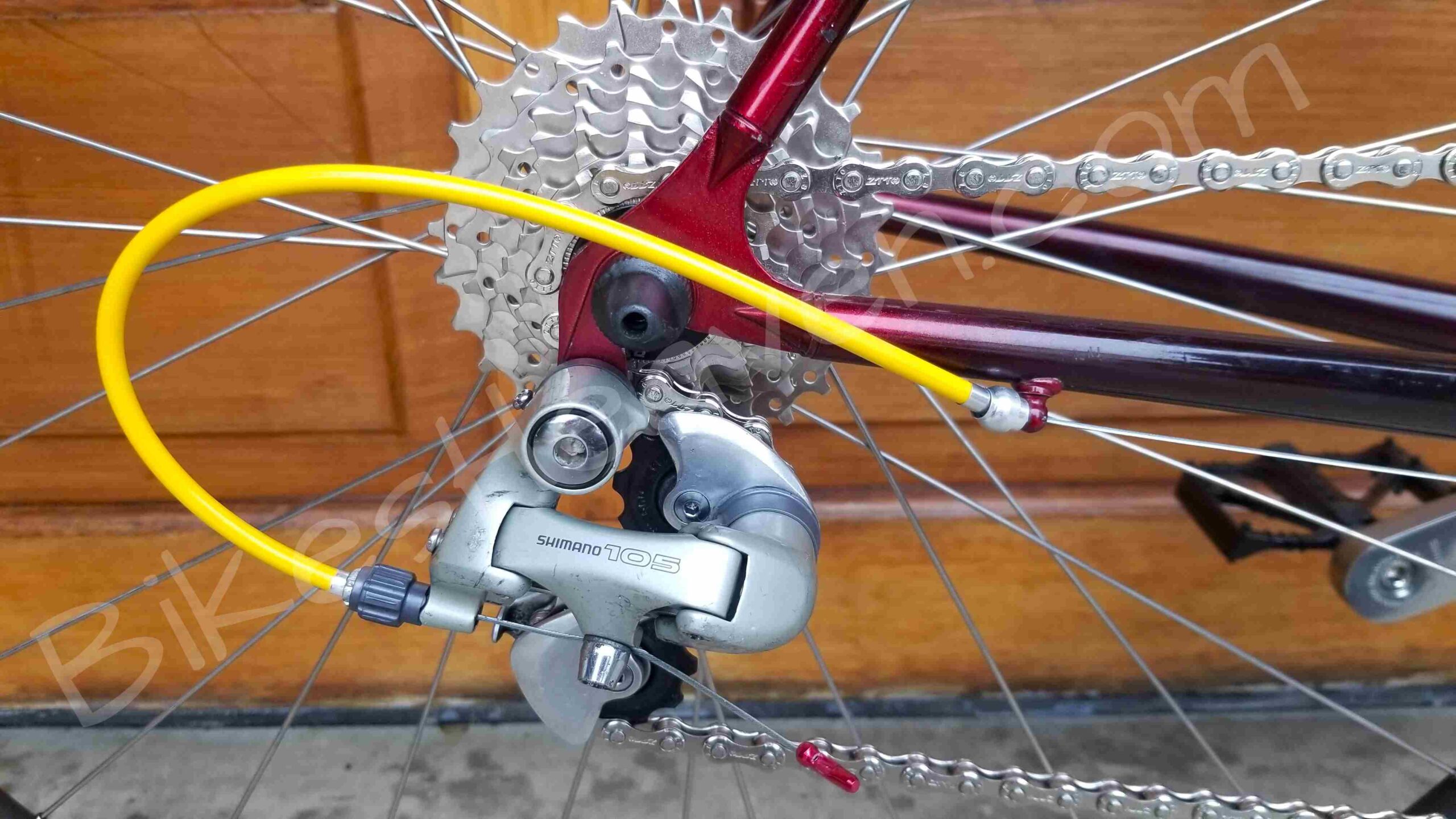

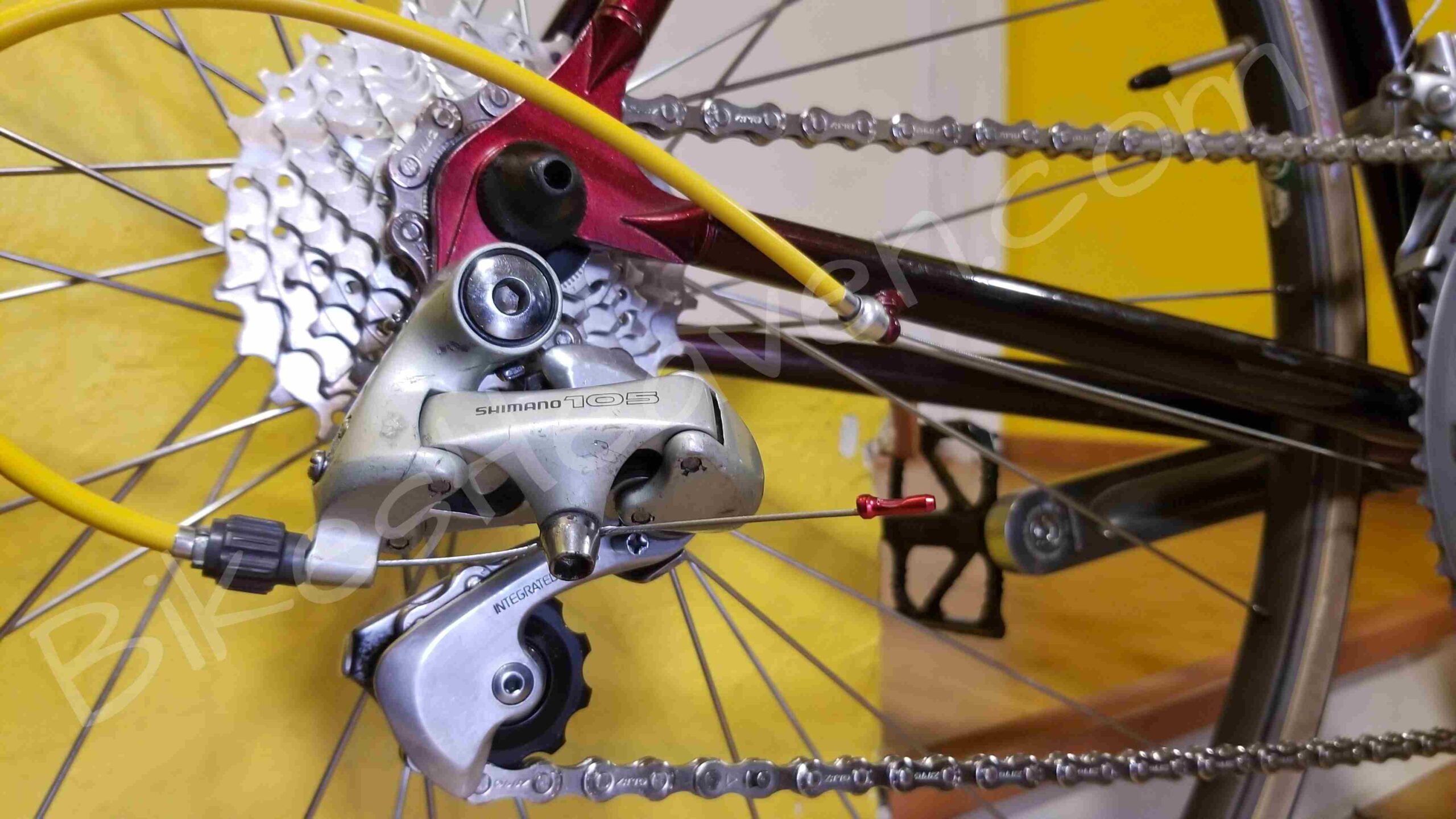

  • Rear derailleur: Shimano 105

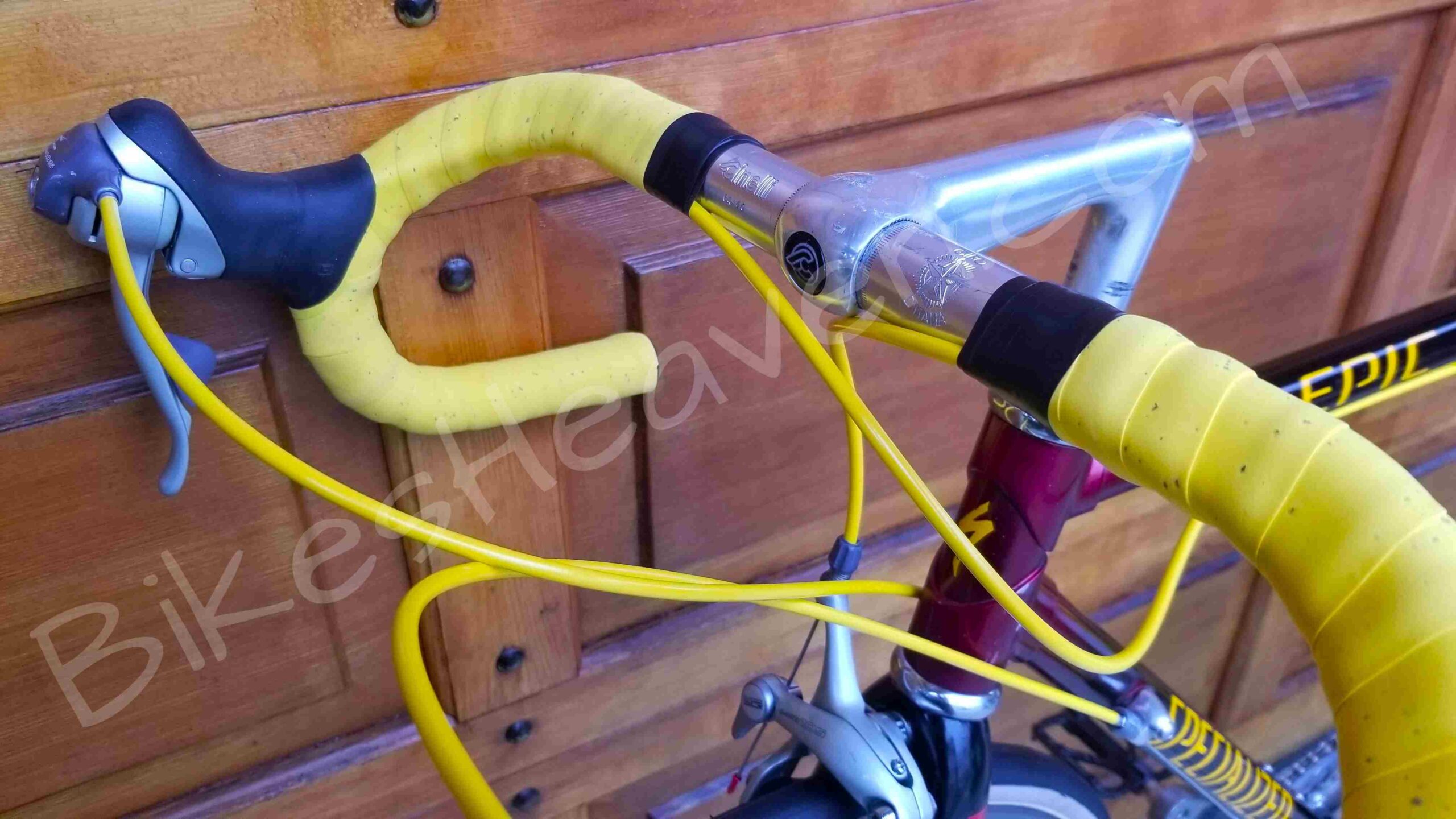

  • Shifters/Brake Levers: Shimano 105

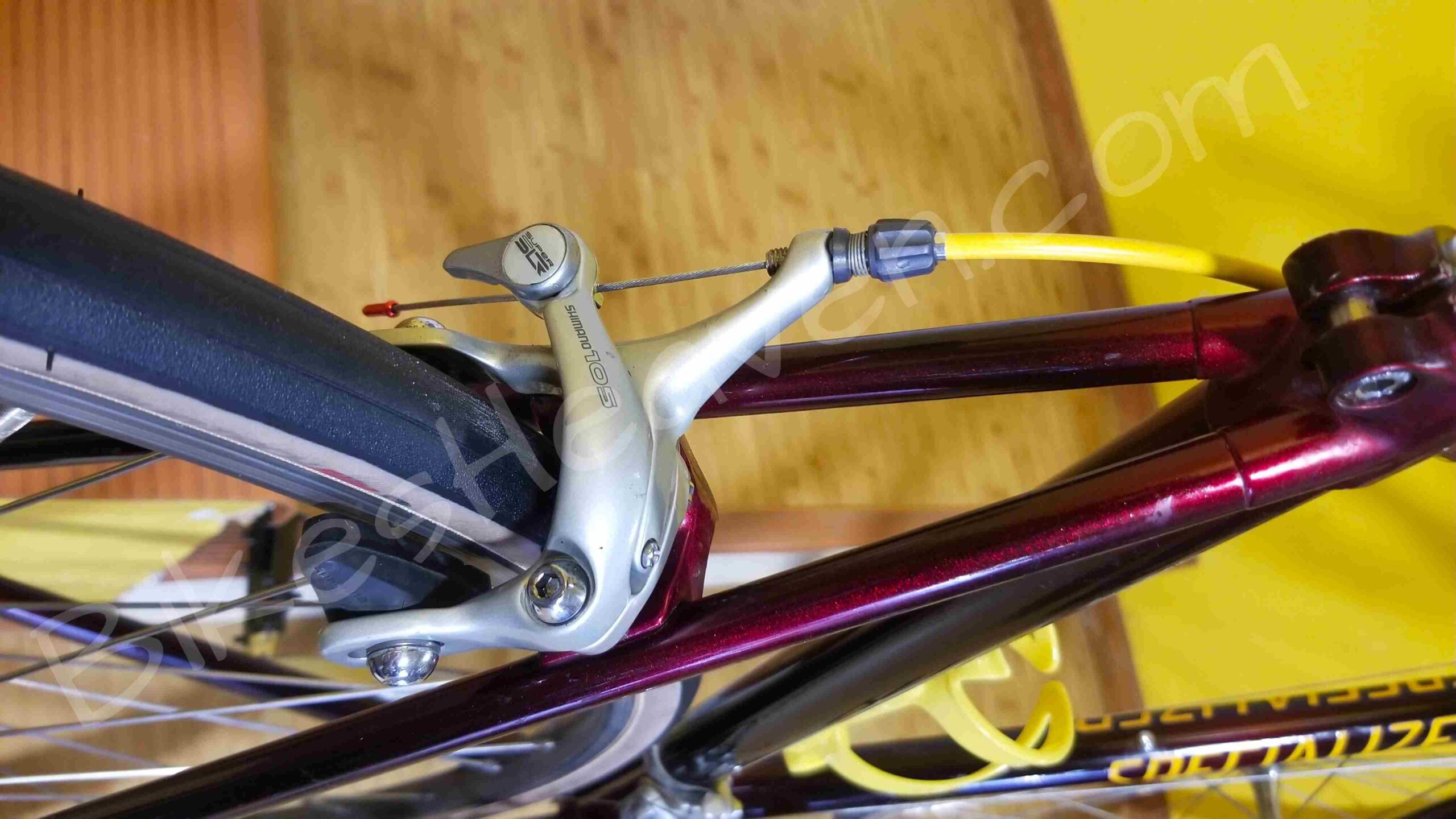

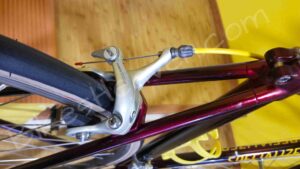

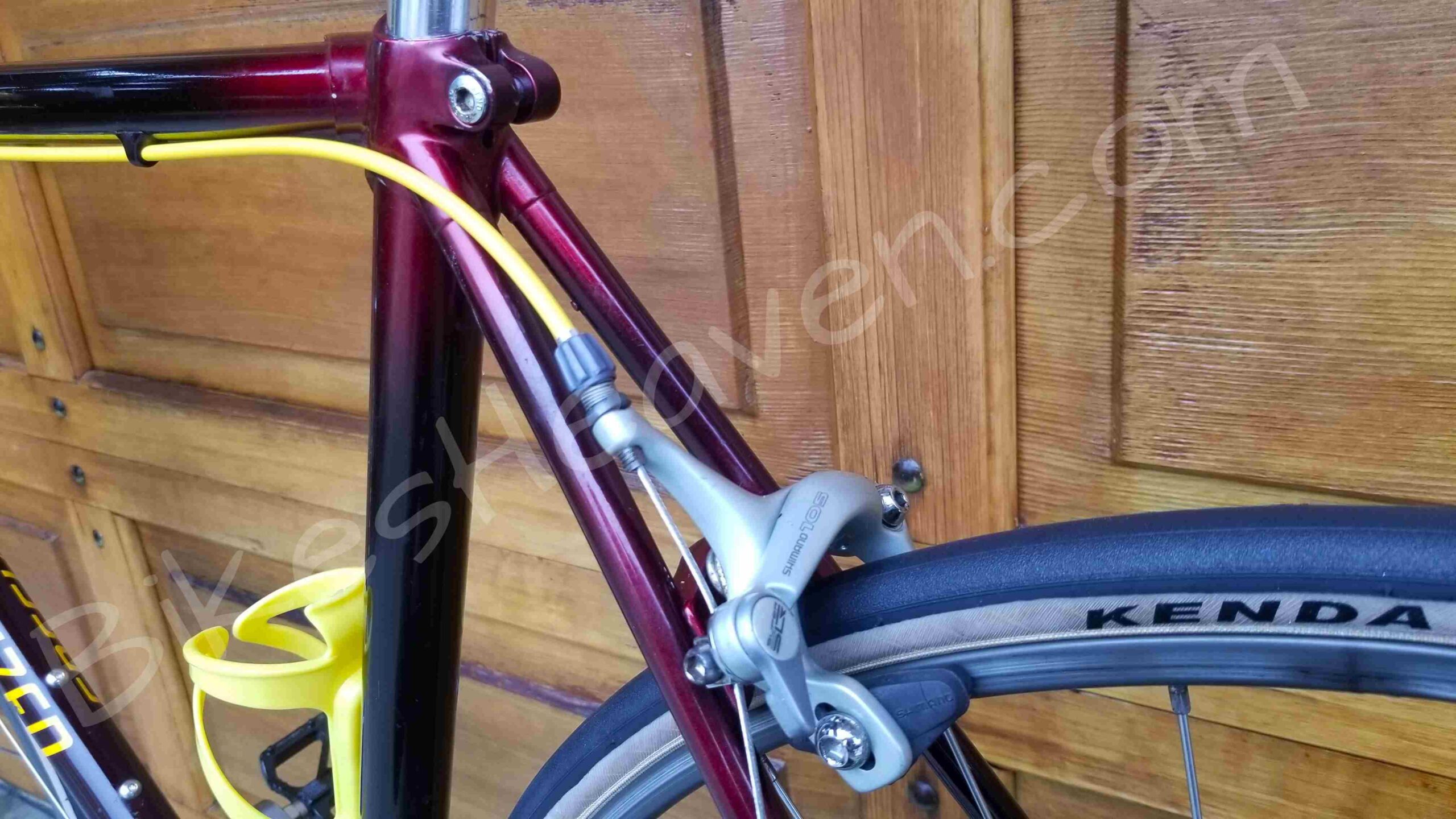

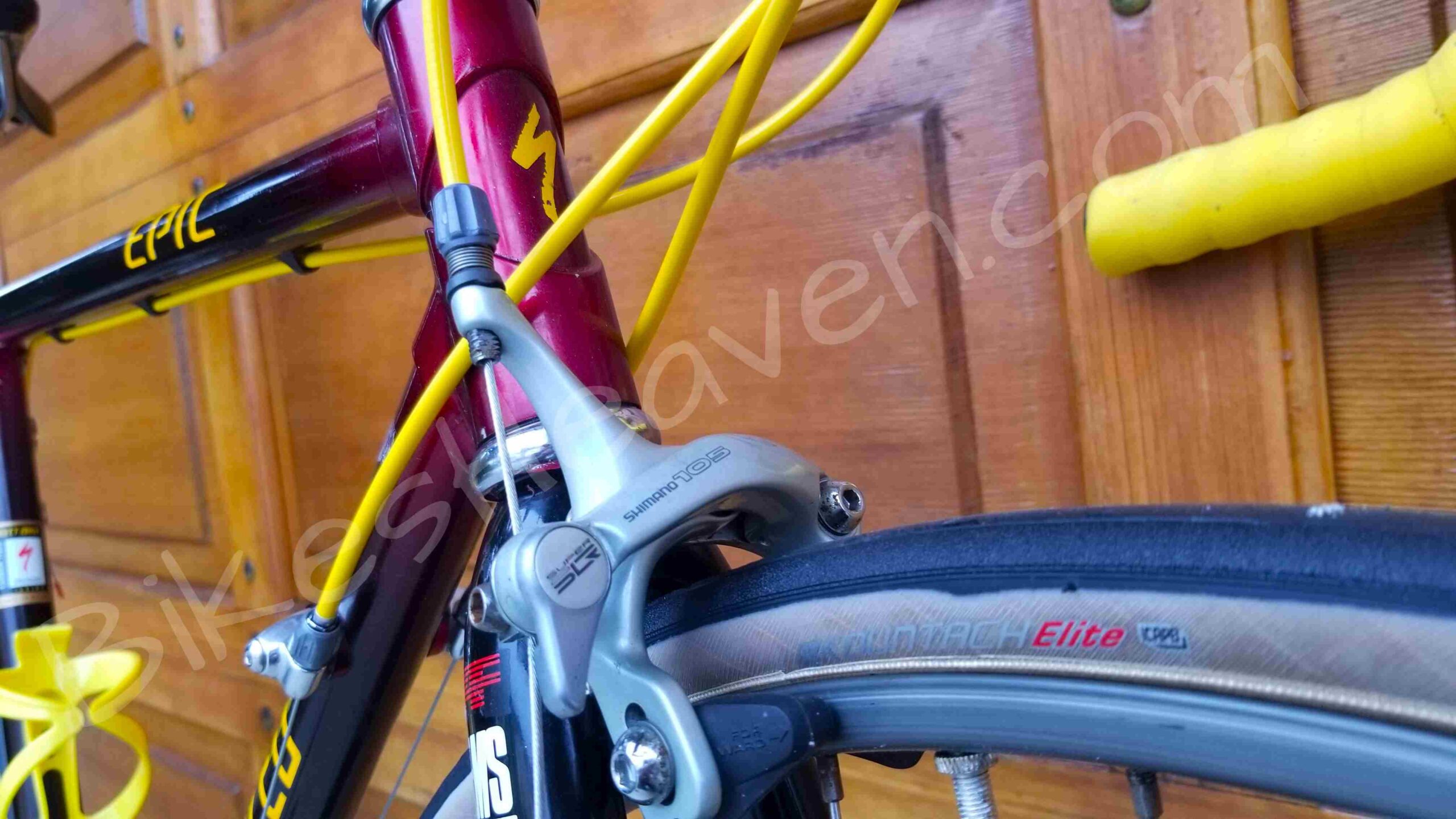

  • Brakes: Shimano 105 Super SLR

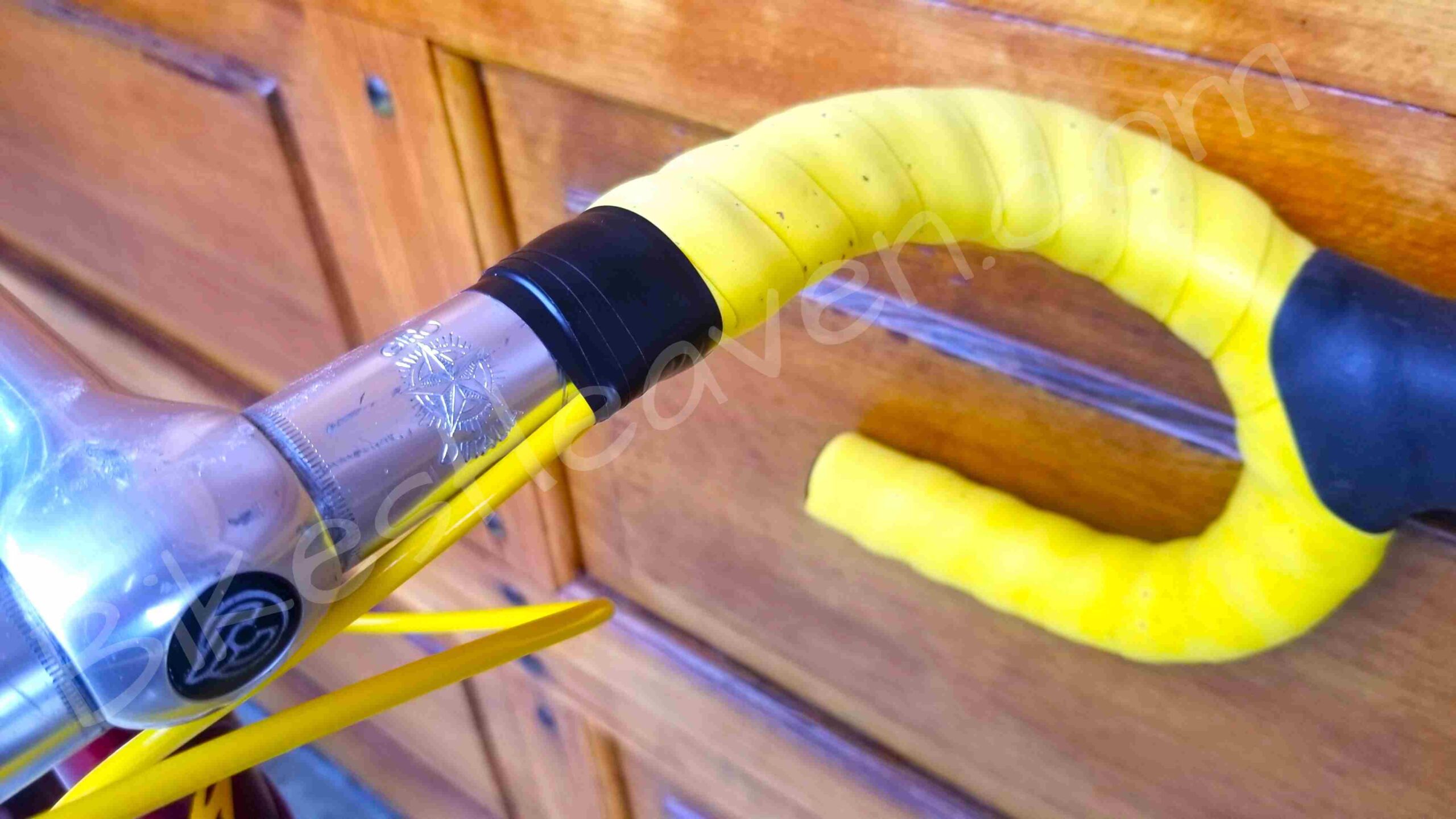

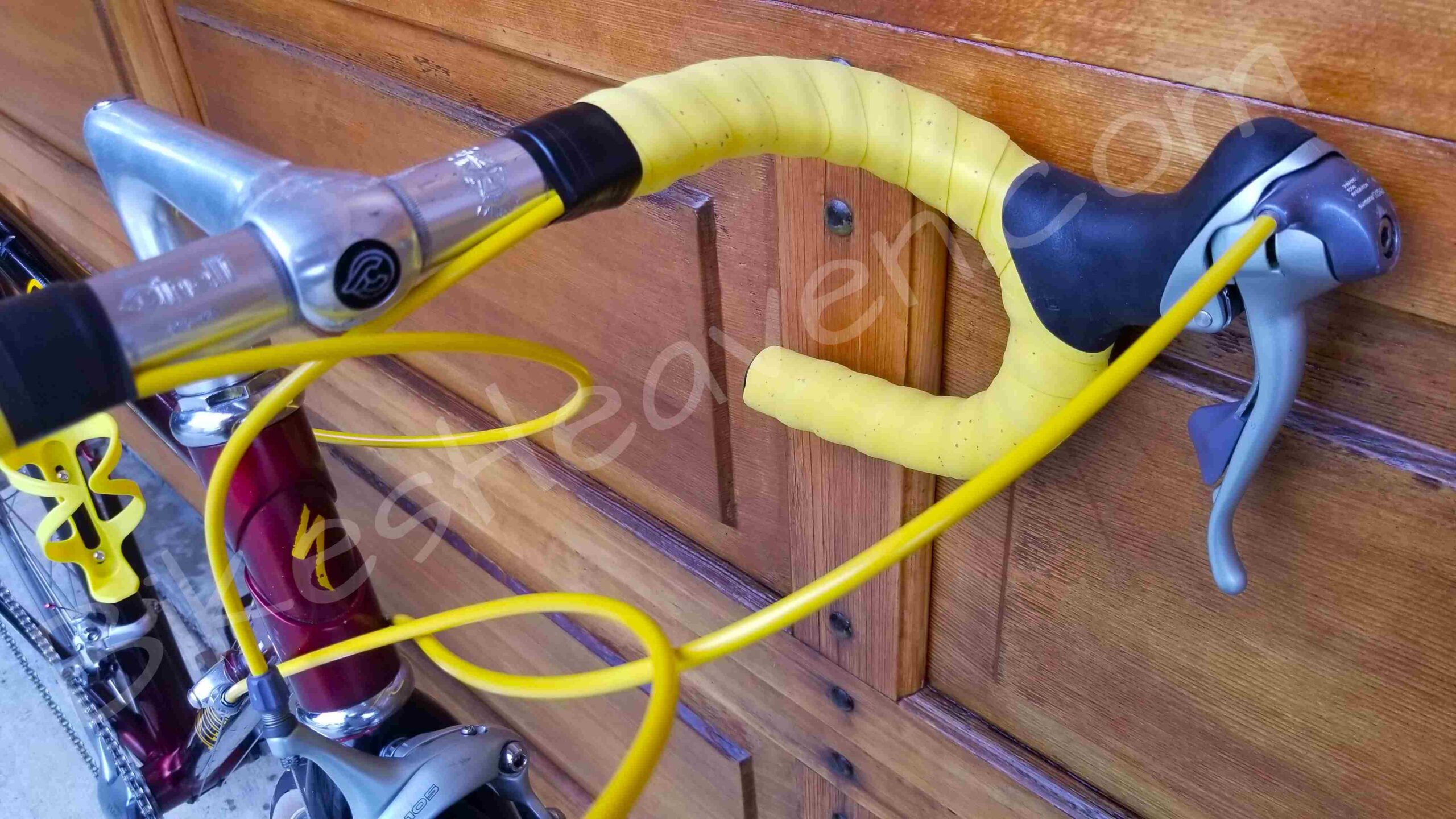

  • Handlebars: Cinelli aluminum Giro D’Italia

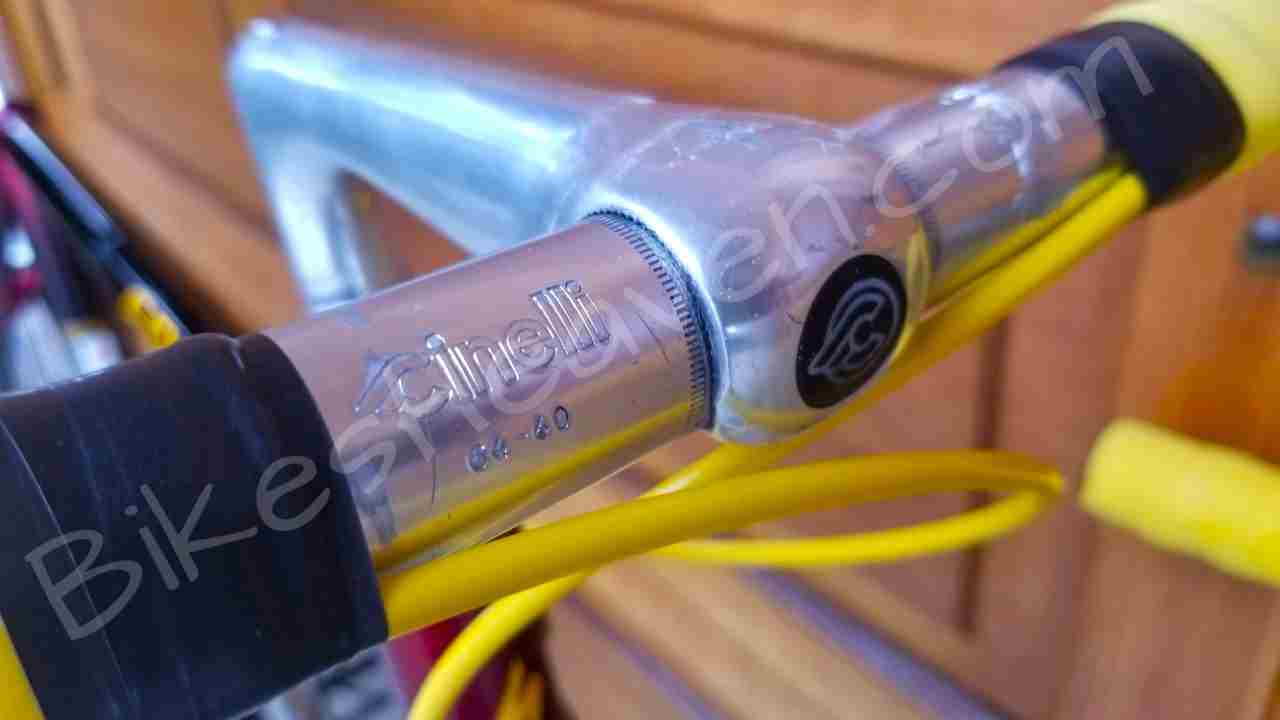

  • Stem: Cinelli XA aluminum with new insert

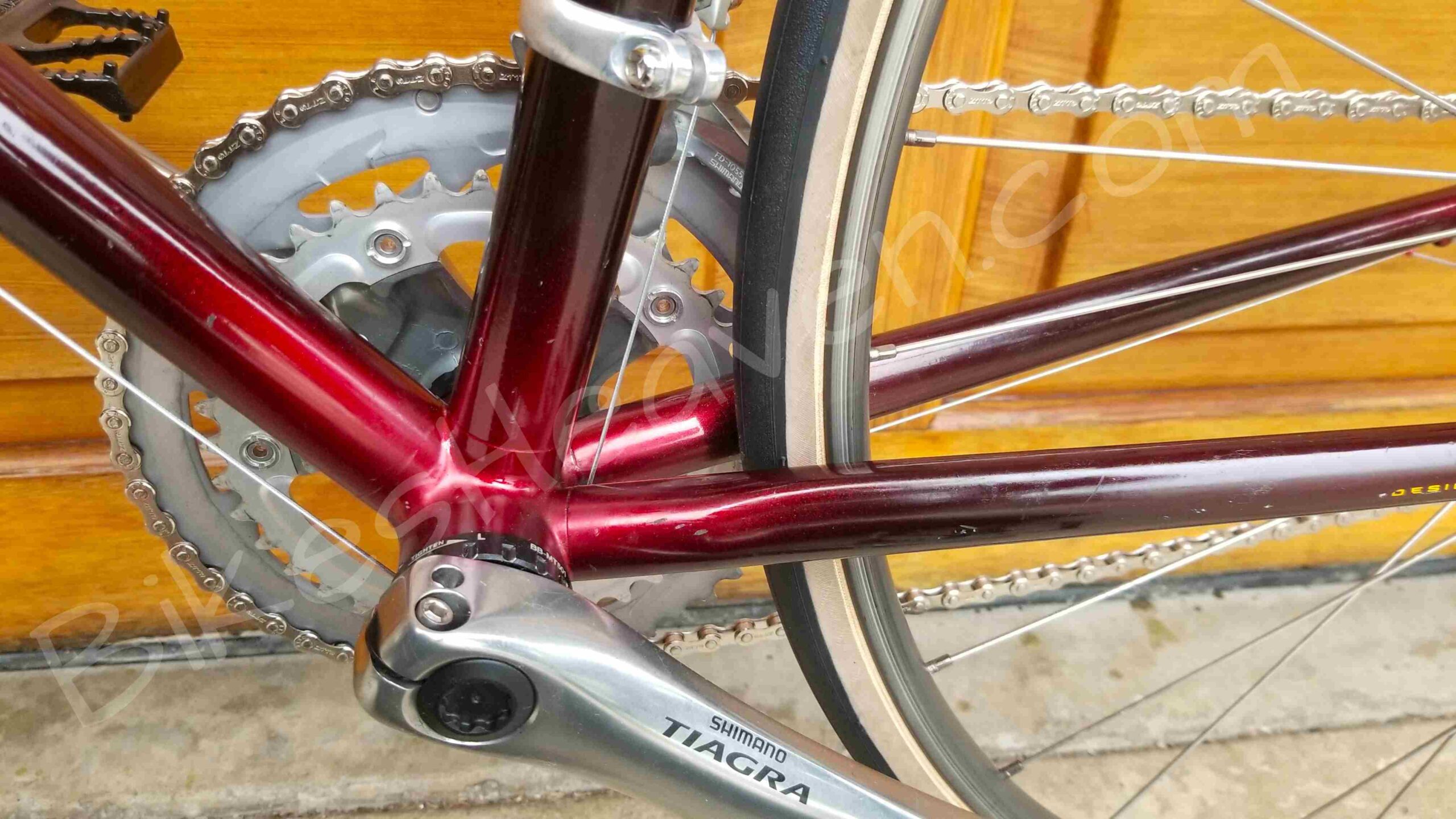

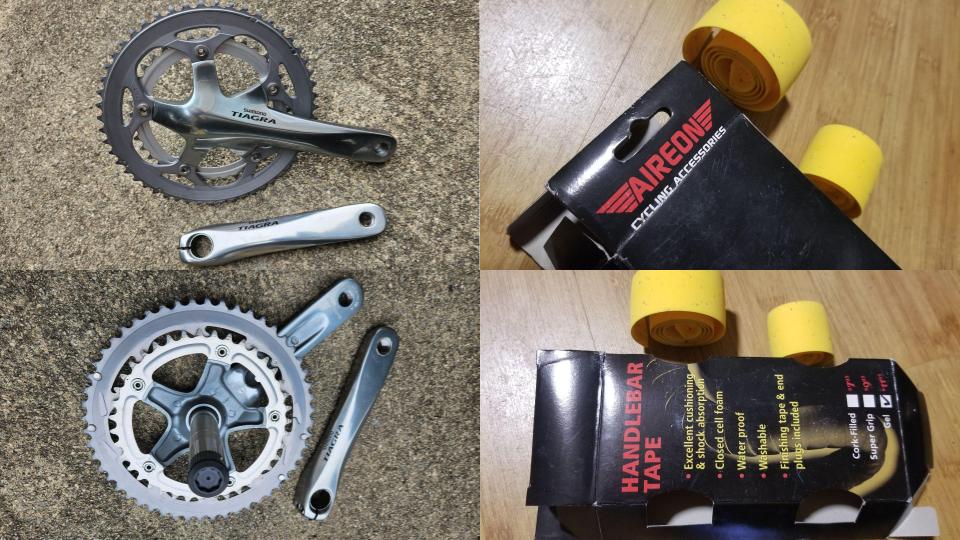

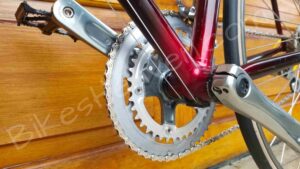

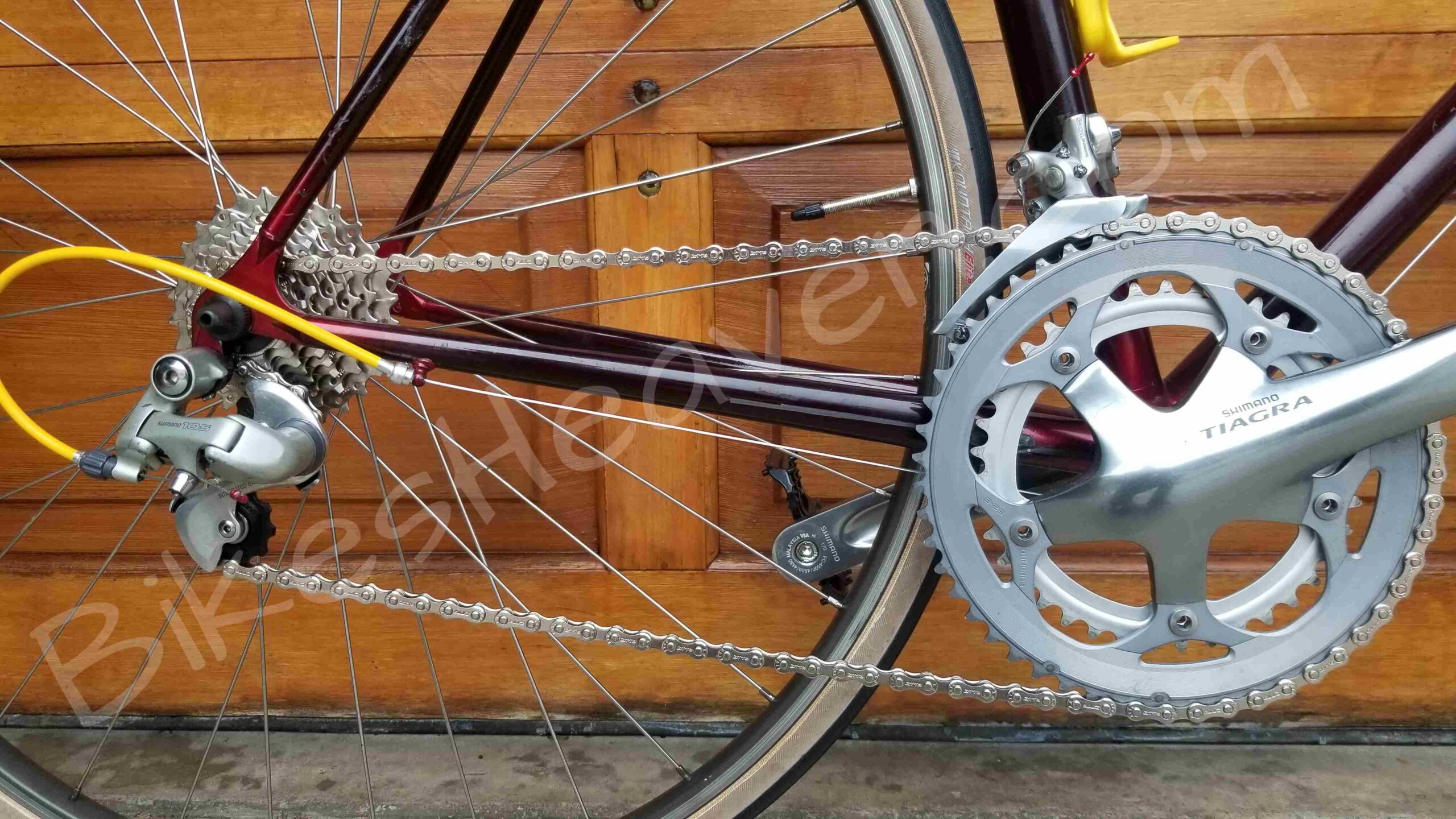

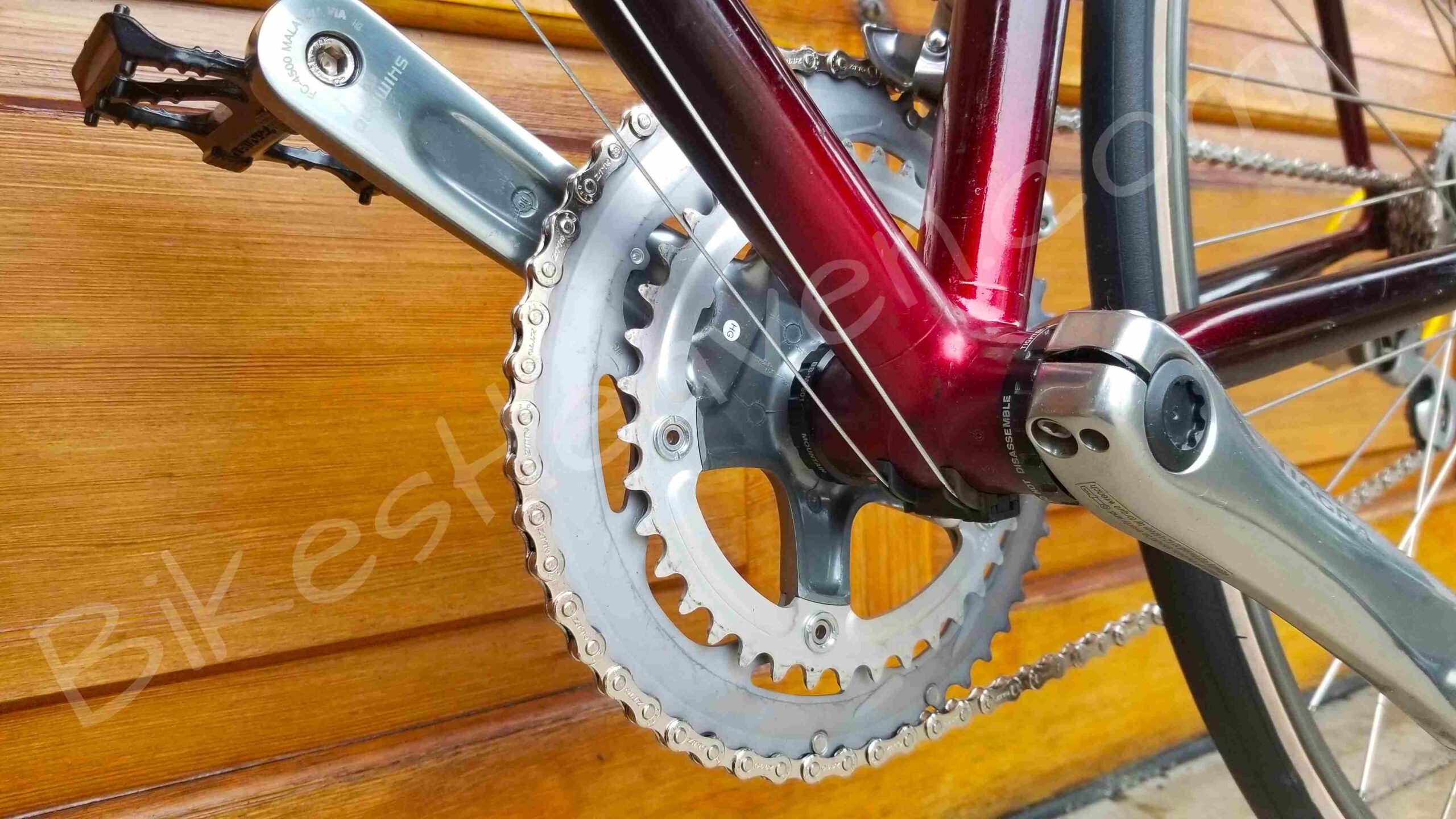

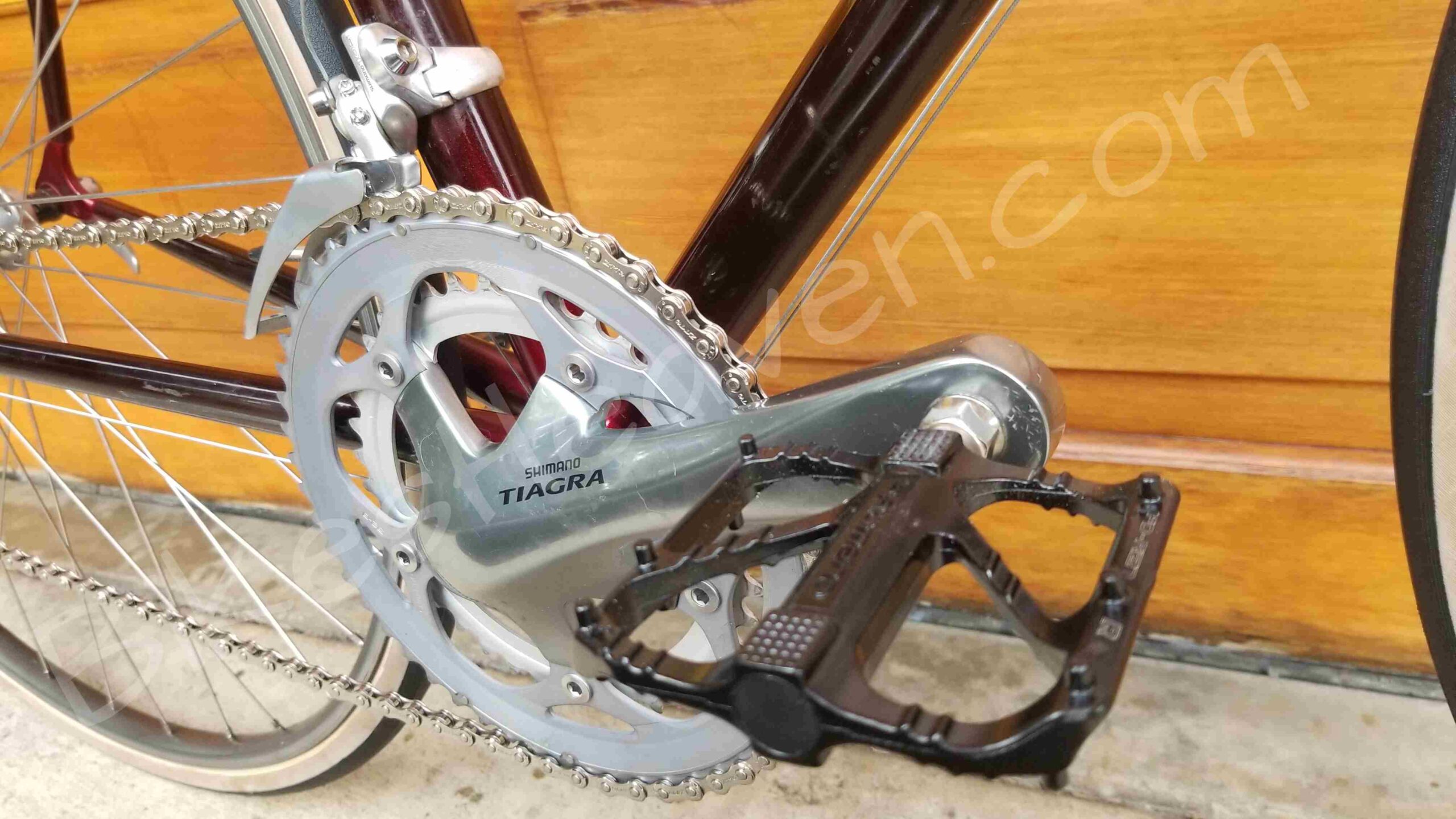

  • NEW Crankset: Shimano Tiagra FC-4500 38/52T

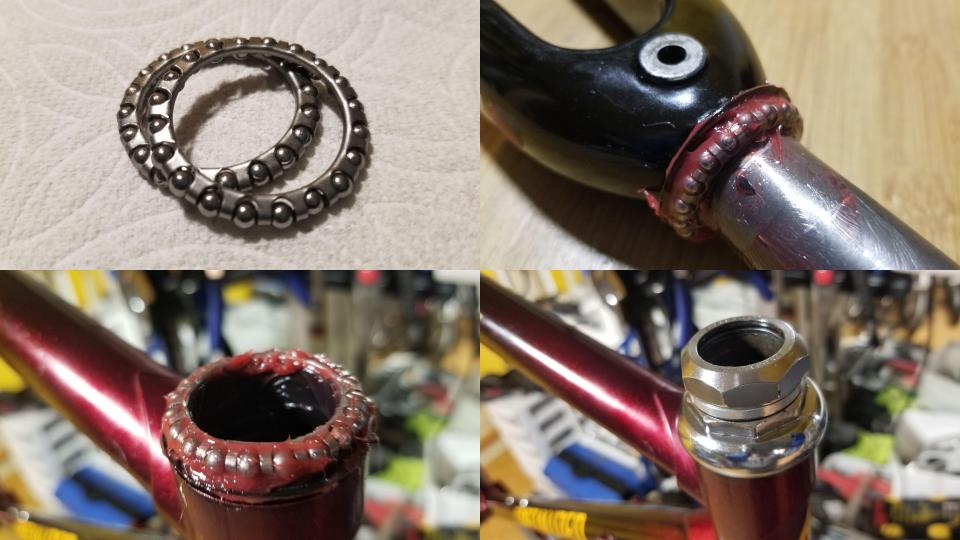

  • NEW Bearings: Headset and both hubs

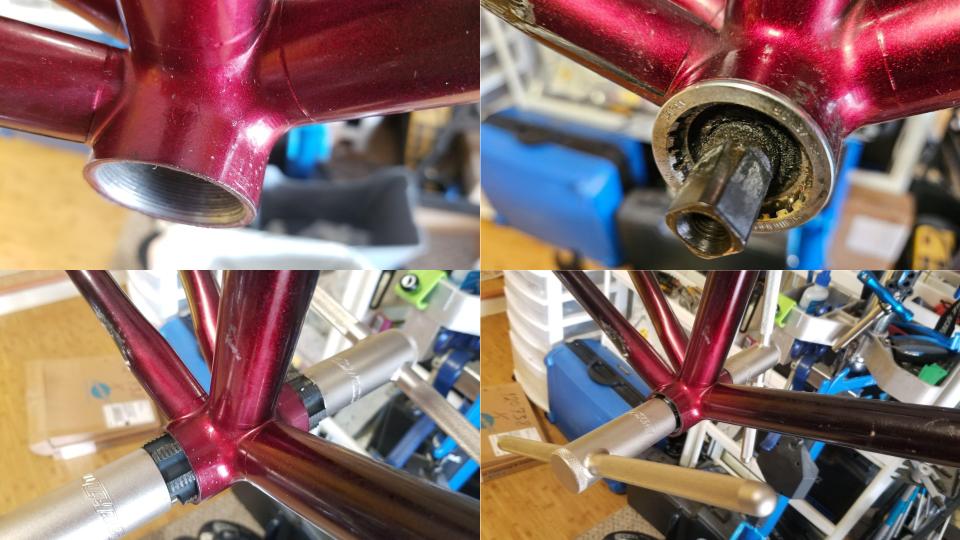

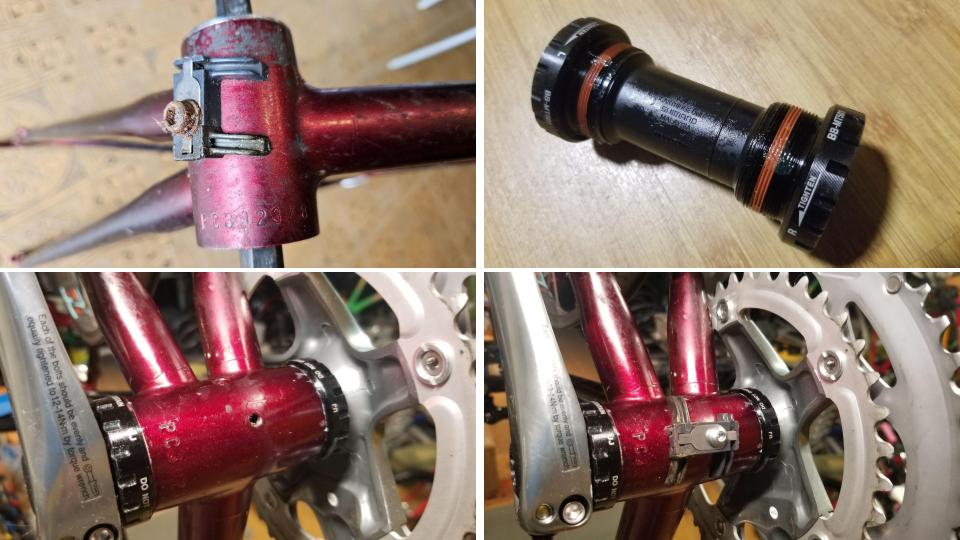

  • NEW Bottom Bracket: Shimano Hollowtech BB-MT501

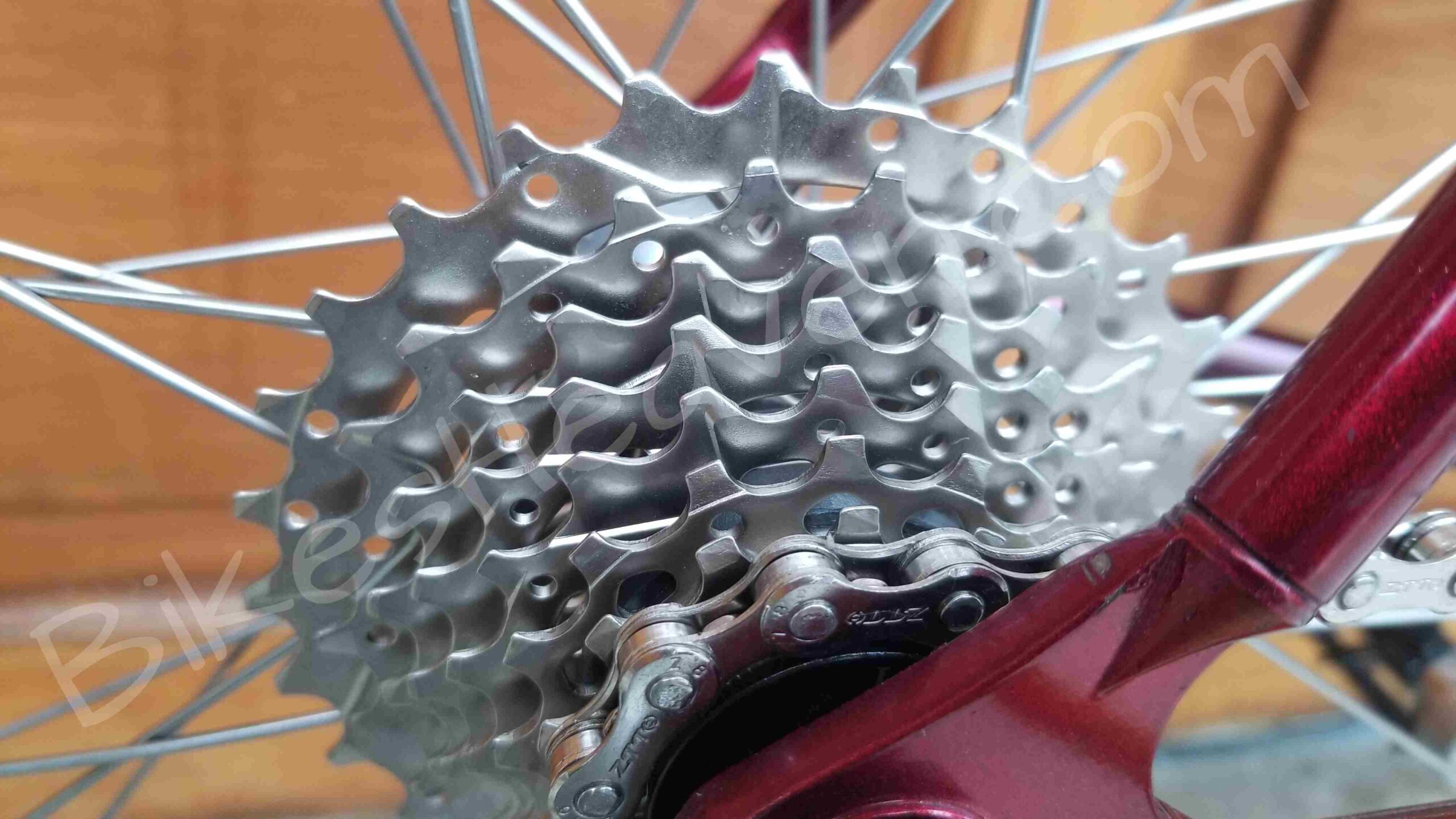

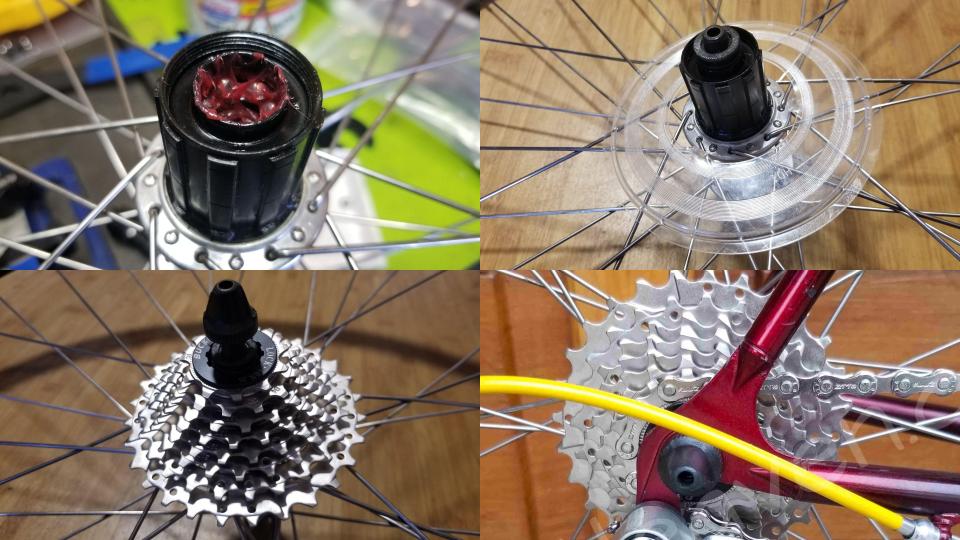

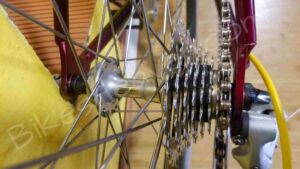

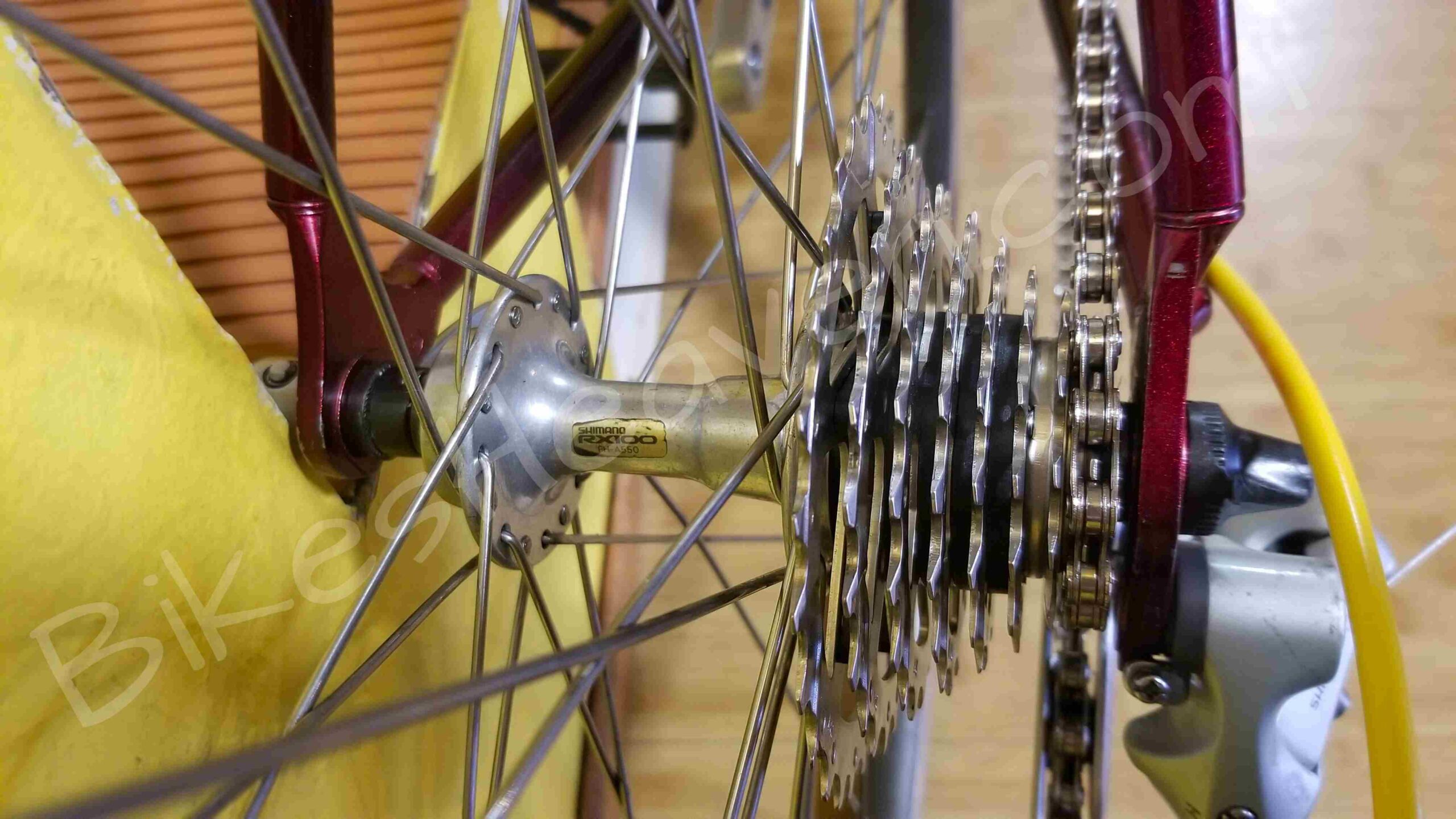

  • NEW Cassette: Shimano (Bucklos) 8-speed 11-28T

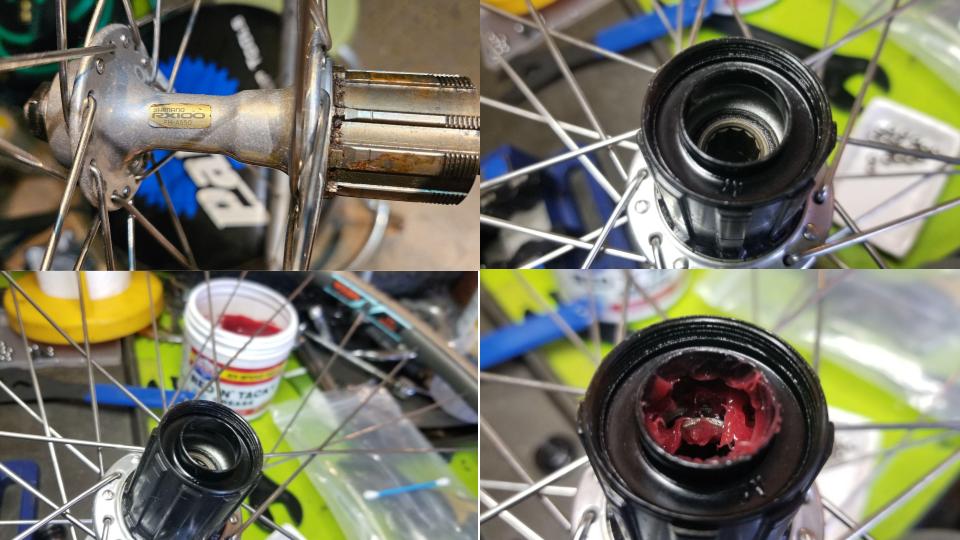

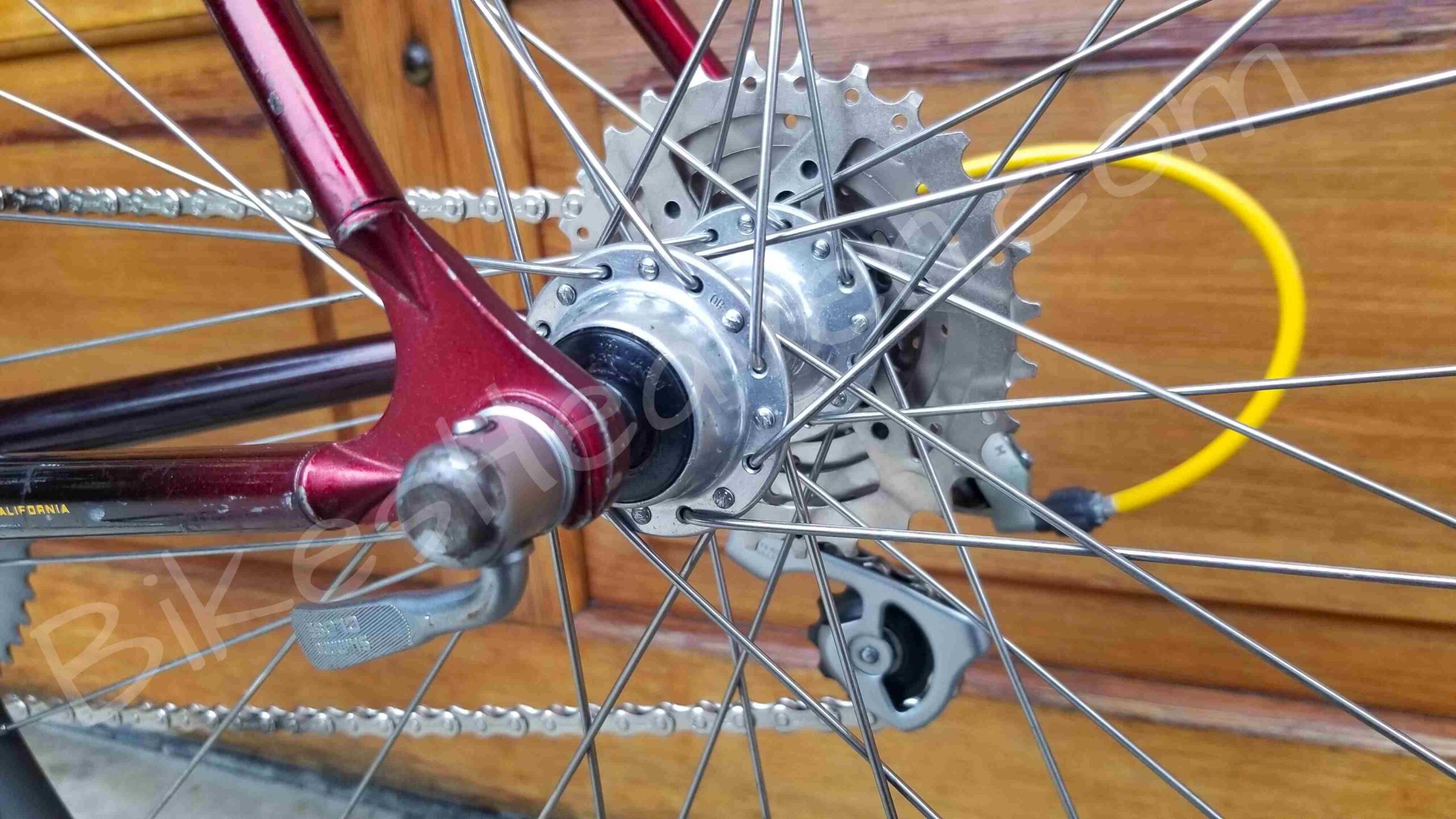

  • NEW Freewheel body: Shimano FH-C201 8-speed

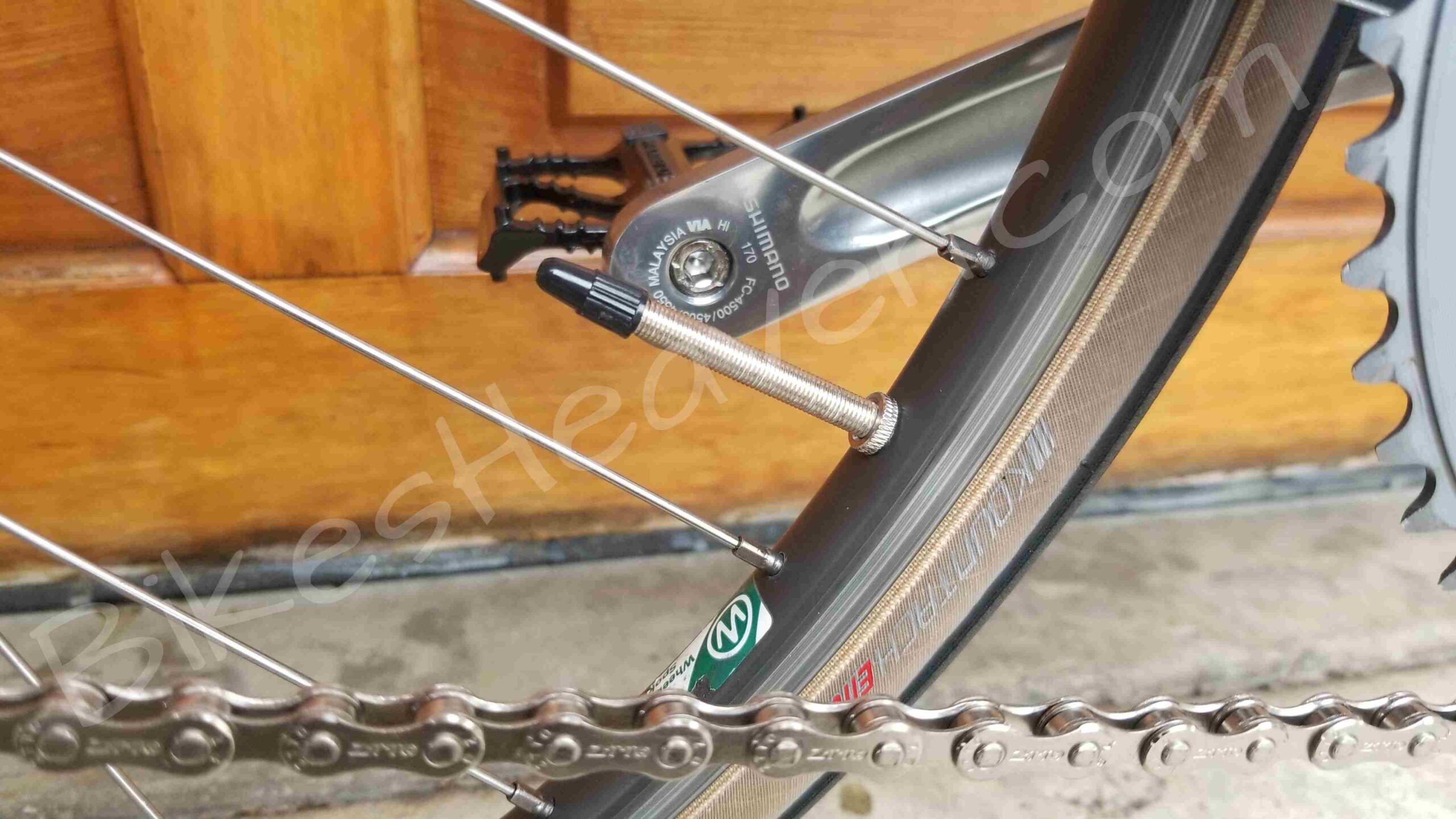

  • NEW Chain: ZTTO 8-speed silver
  • NEW Cables & Housings: Jagwire
  • NEW Grip Tape: Aireon, closed-cell foam, gel, washable

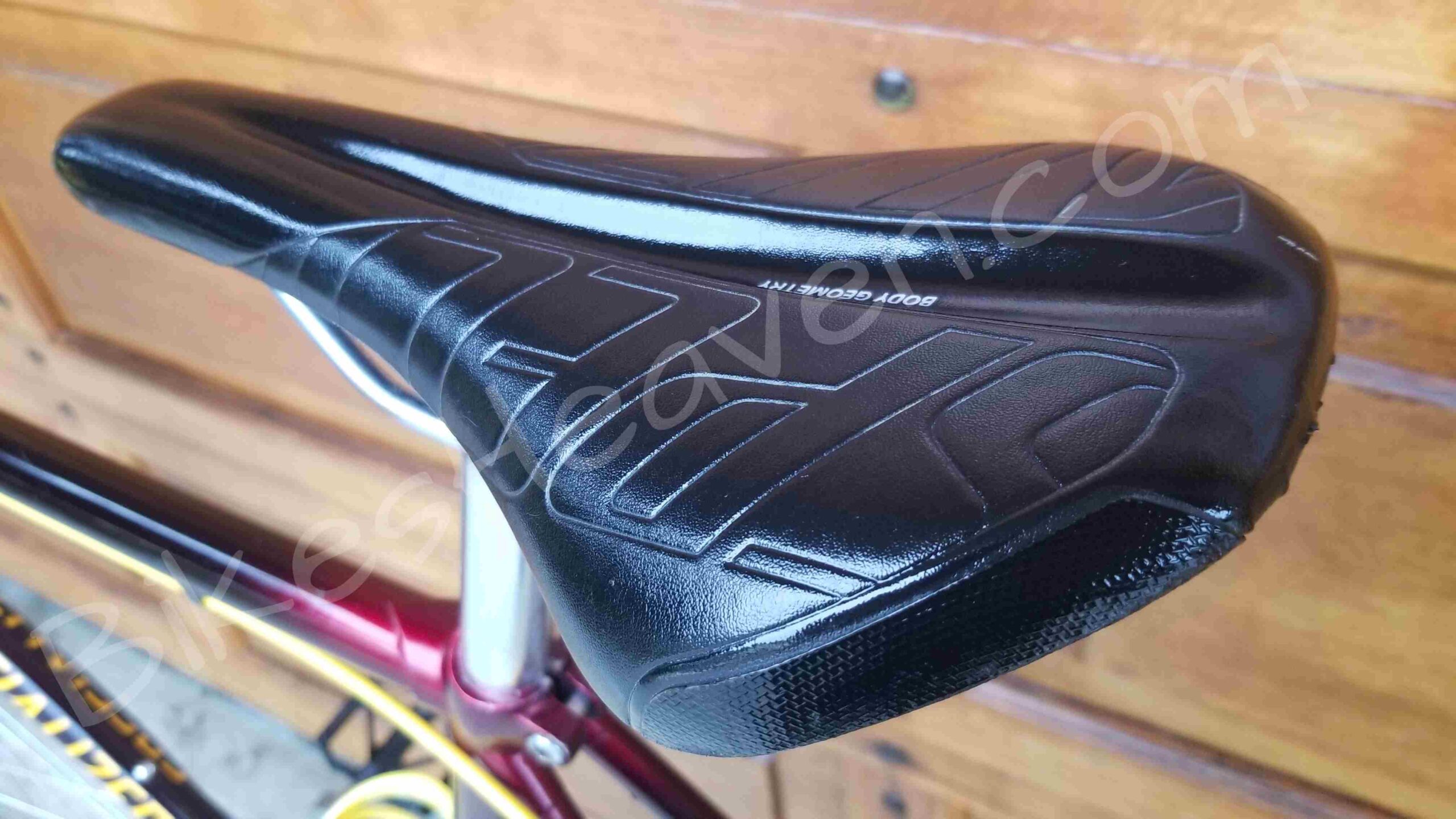

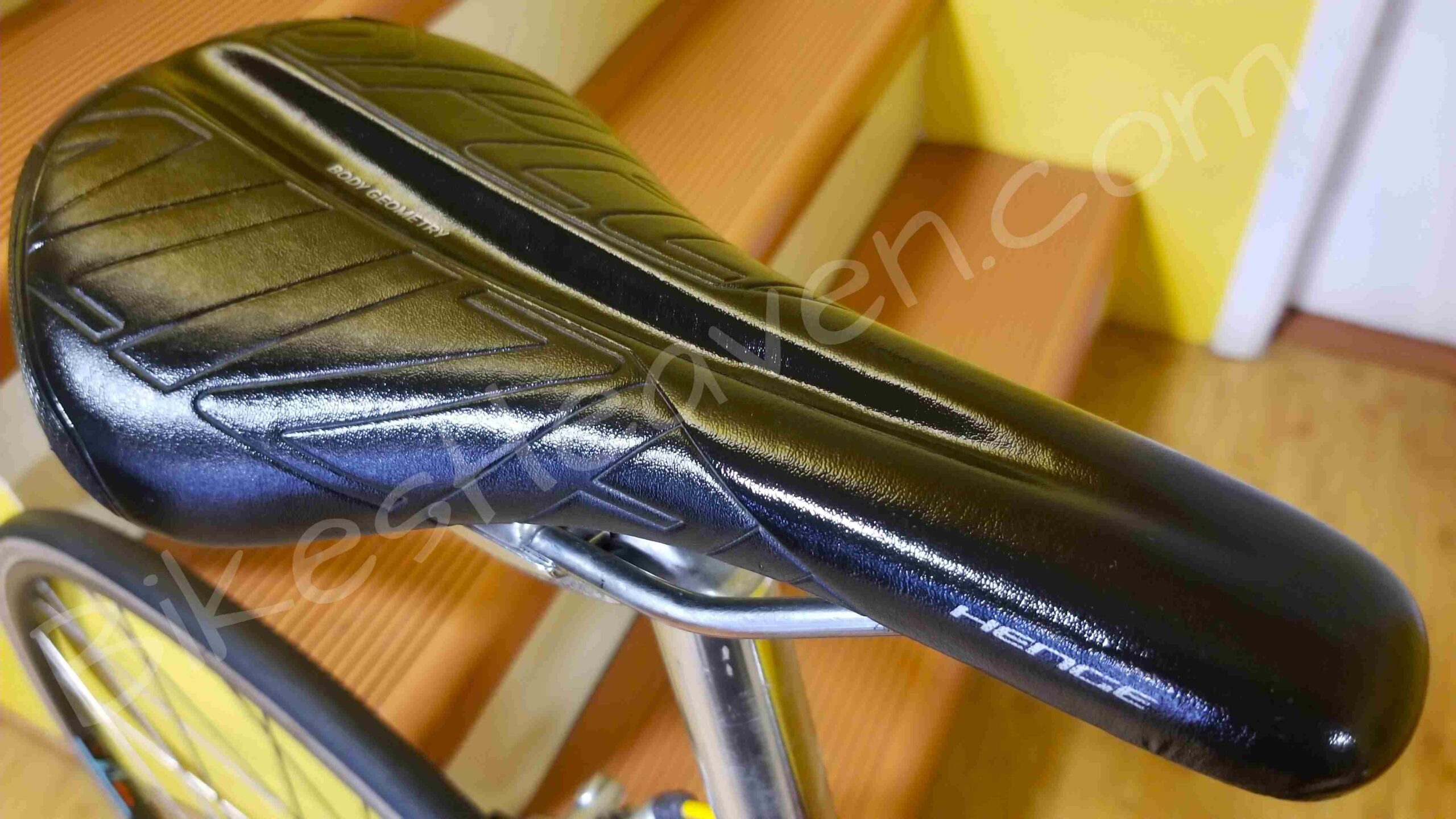

  • Saddle: Specialized BodyGeometry Henge, leather, gel, chromoly binder bolt
  • Pedals: Promend, sealed

1993 Specialized Catalog

Original components

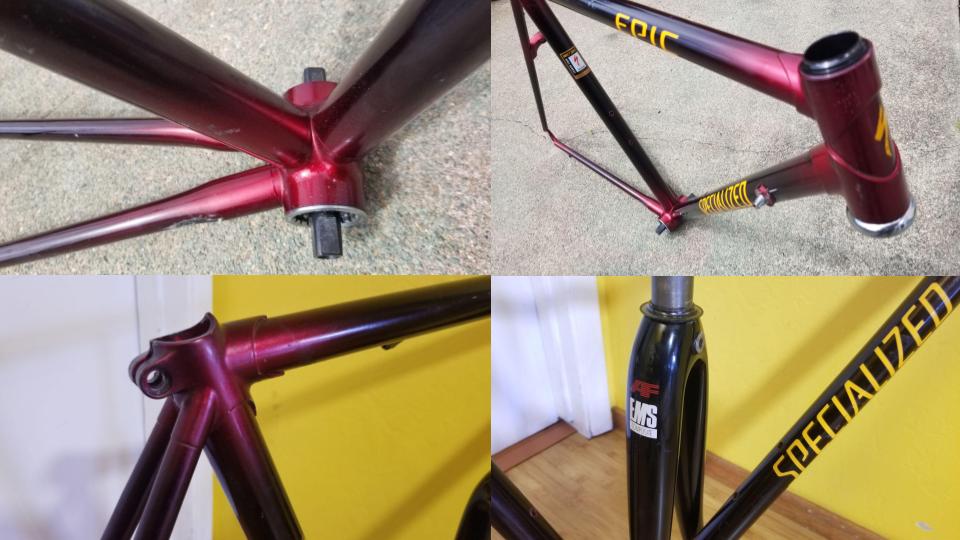

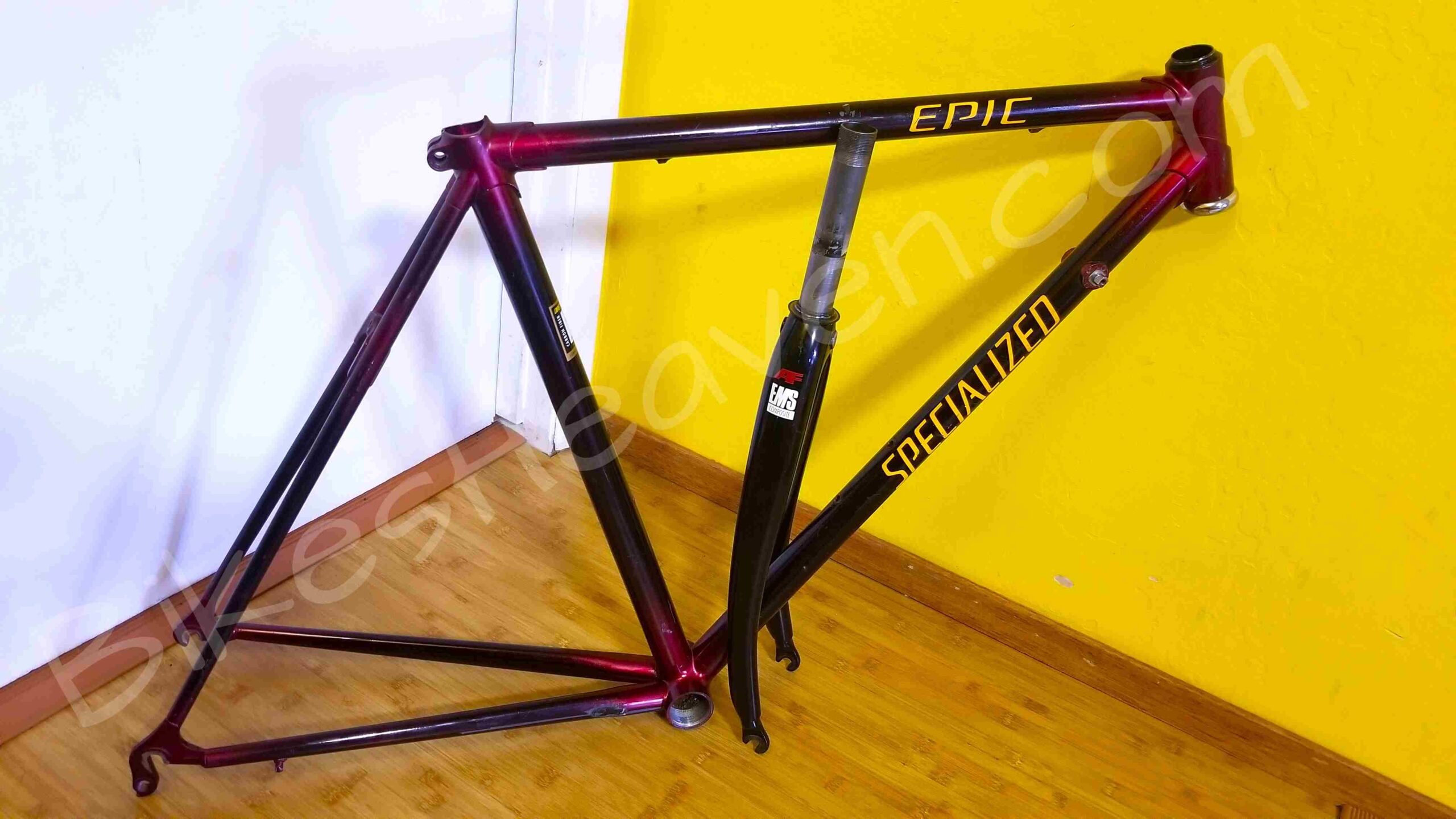

  • Frame: 52cm Racing Bias Programmed carbon tubes, Cast Internal/External alloy lugs, stainless DO
  • Fork: DirectDrive Aluminum with chromoly steerer
  • Cranks: Shimano 105 SC Dual SIS
  • Cassette: Shimano 39/53T, 12/23T 8-speed
  • Bottom Bracket: Shimano 105, 68mm width 107mm spindle length
  • Pedals: Shimano 105 clipless
  • Front Derailleur: Shimano 105
  • Rear Derailleur: Shimano 105
  • Shifters/brake levers: Shimano 105 STI 8-speed
  • Headset: Specialized Pro Alloy
  • Stem: Cr-Mo TIG 73 degree
  • Handlebars: SR251 Anatomical
  • Handlebar Grips: Cork tape
  • Brakes: Shimano 105
  • Seatpost: Specialized Direct Drive
  • Saddle: Specialized ProLong Leather Perf
  • Wheels: Shimano 105 hubs, Wheelsmith 14 spokes, Mavic Open 4 CD rims, Tri-Sport 700x23c tires
